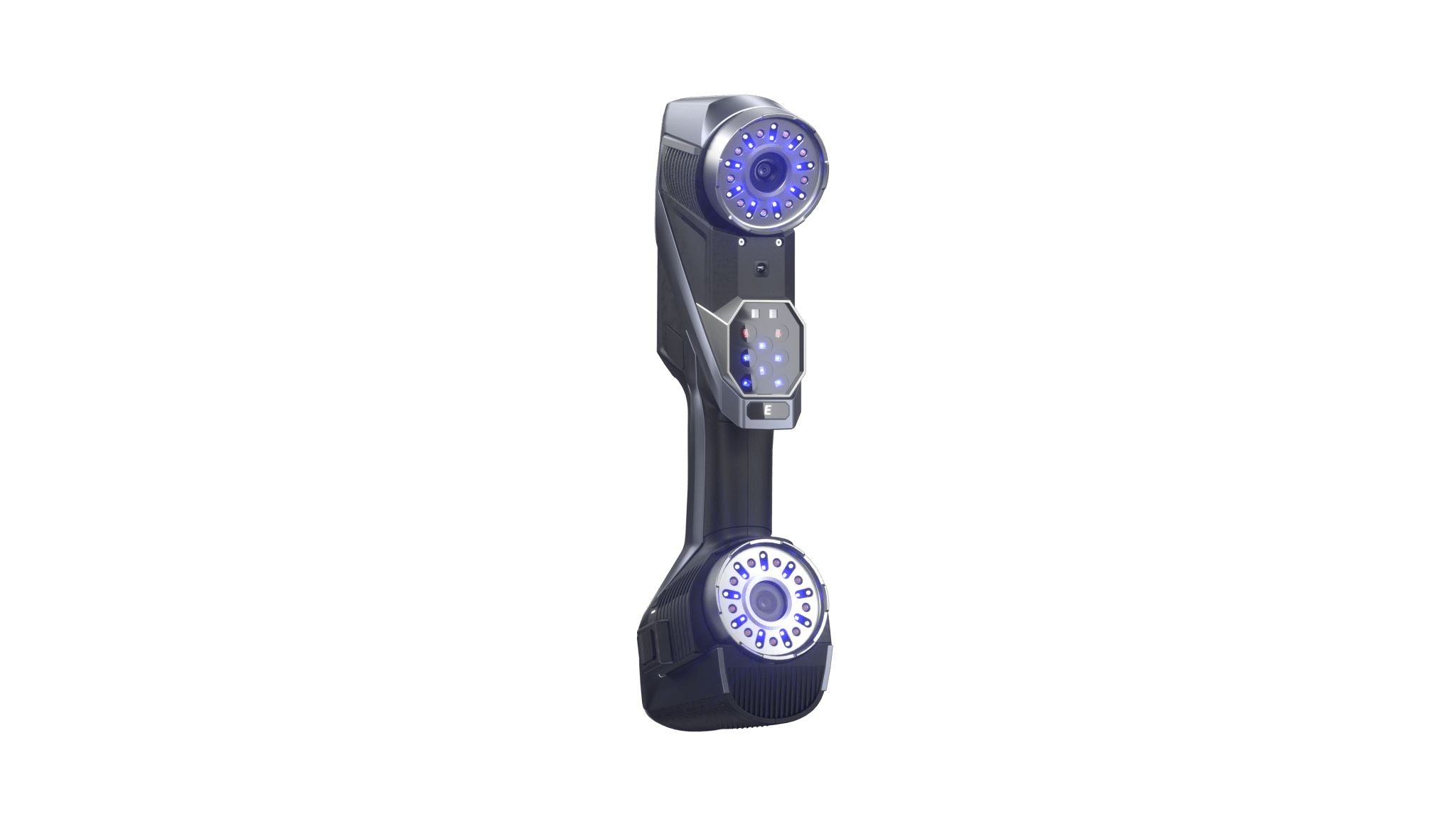

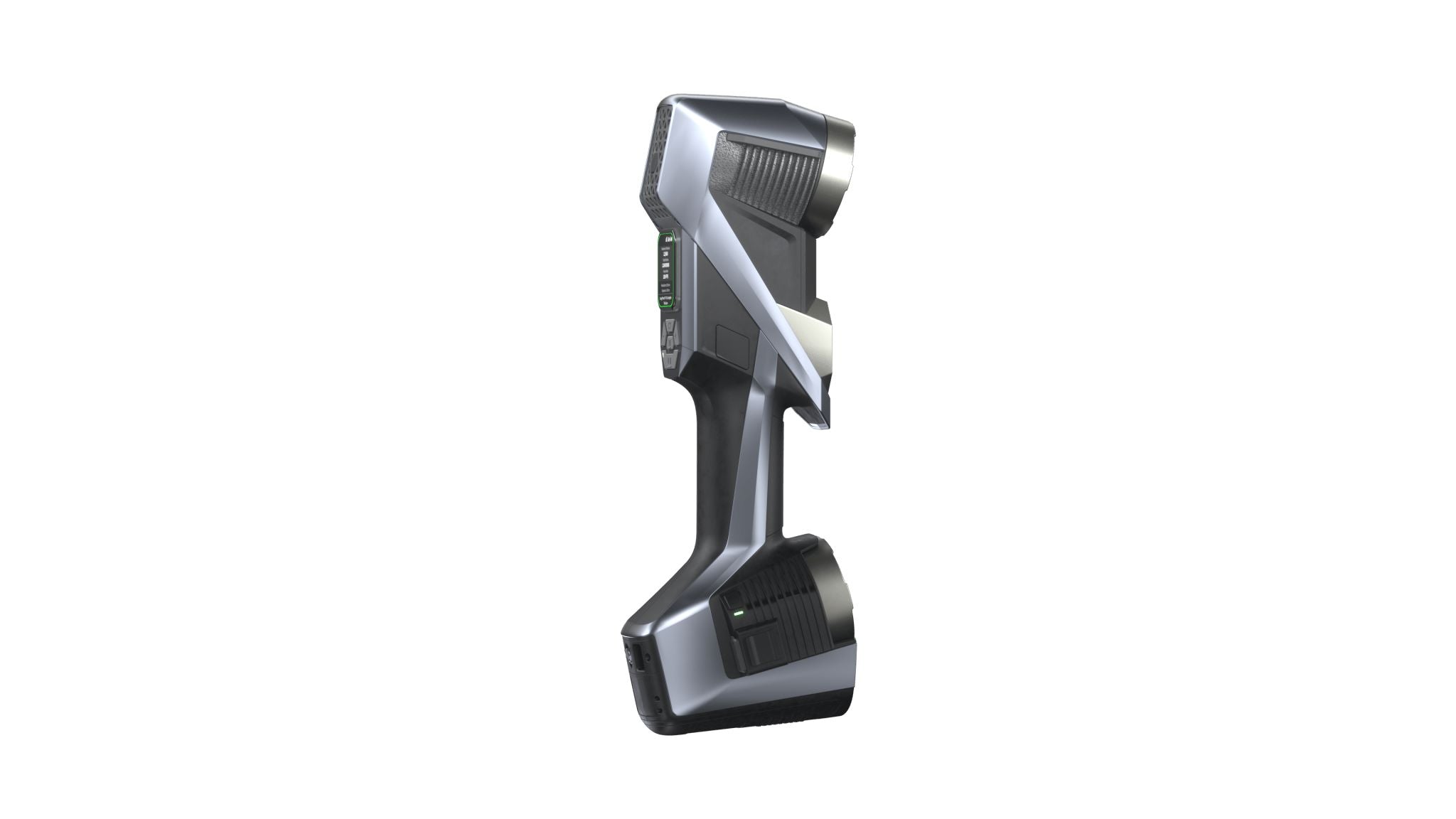

KSCAN-E

The flagship KSCAN-E is an intelligent, wireless, and all-in-one 3D scanner designed to redefine industrial measurement with unmatched precision and efficiency. Whether scanning large surfaces or fine details, its 6 operating modes ensure full-field and high-quality data capture. With a built-in computing module and dual power system, it delivers seamless, wireless operation for maximum flexibility in any environment.

With an accuracy up to 0.020 mm, the KSCAN-E meets the demands of even the most challenging applications. From aerospace and automotive to heavy industry and energy,  KSCAN-E delivers a precise, flexible, and intelligent 3D solution, making everything from design verification to quality control smarter and more efficient.

  • Full wireless connection
  • 108 blue laser lines for ultra-fast scanning (Quad Cross)
  • Accuracy up to 0.02mm
  • Promising Shape error (Sphericity: 0.030mm    ;    Flatness: 0.050mm)
  • Provide ISO10360-13 certificate
  • Adaptive photogrammetry
Fully Wireless
KSCAN-E's lightweight design and one-handed operation make it easy to use, even in complex measurement scenarios. Fully wireless and highly versatile, it’s perfect for locations with limited or no access to power. Whether you are in the lab, at the workshop, or working in the field, you can enjoy true freedom to capture precise 3D data with incredible ease.
79238f02dace2fe9448f685a07666744
78031c1461b1485d7ca19ebd1cdf47cb
189ef09f2dbe96b7f50177ec45257349
f8b94102d41c6c12ffaf157654c044bb
9b7680f43a470451a51d07b17b05fe7f
d4c22a8dbcaade0b624637c494f3c41e
Technical Specifications
KSCAN-E - Technical Specifications

KSCAN-E Technical Specifications

Specification Value
Accuracy 0.020 mm
Volumetric Accuracy (Standard) 0.015 mm + 0.030 mm/m
Volumetric Accuracy (Photogrammetry) 0.015 mm + 0.015 mm/m
Resolution Up to 0.010 mm
Scanning Rate Up to 8,290,000 measurements/s
Scanning Area Up to 1440 mm × 1000 mm
Object Size Range 0.05 m ~ 8 m
Working Distance (Large Area) 600 mm~1500 mm
Working Distance (Ultra-fast) 200 mm~700 mm
Working Distance (Hyperfine) 150 mm~300 mm
Laser Class Class II (eye-safe)
Dimensions 344 mm × 124 mm × 99 mm
Operating Temperature -10°C – 40°C
Operating Humidity 10-90% RH
Protection Rating IP50
Interface USB3.0 Type-B
Wireless Standard Wi-Fi 6, 802.11a/b/g/n/ac
Ultra-fast Scanning 108 blue laser lines
Hyperfine Scanning 17 blue parallel laser lines
Large Area Scanning 19 infrared laser crosses
Deep Hole Scanning 1 extra blue laser line
Photogrammetry Adaptive photogrammetry
Intelligent Wireless Mode Yes
Uninterrupted Power Supply Yes
Dual WNIC Support Yes
