PA12-CF

$55.00
Save {}Sold out

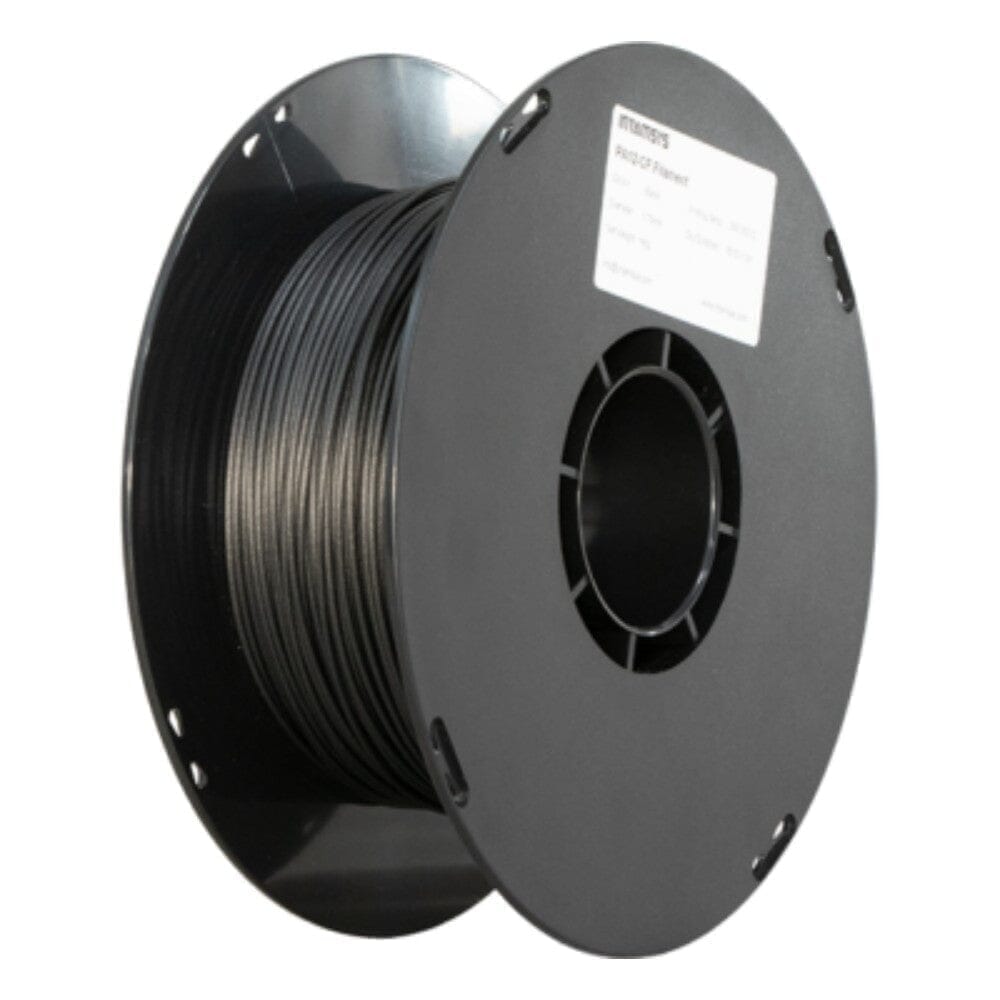

INTAMSYS PA12-CF is a Carbon-Fiber reinforced PA12 (Nylon 12) filament. Thanks to the low moisture sensitivity of PA12, this product features outstanding mechanical and thermal properties even after the moisture conditioning process.

Color:
  • Black
Diameter:
  • 1.75 mm
Weight:
  • 500 g
SKU: intamsys-pa12-cf

Explore reasons for using PA12-CF

Features

Applications

Properties

Compatibility

Features

- Low water absorption
- High strength and rigidity
- Good interlayer adhesion and high dimensional stability
- Used in automotive, aviation, gears and other products
pa12-cf-filament-intamsys-indicate-technologies-765731

Applications

Intamsys PA12-CF (Nylon 12 reinforced with carbon fiber) is a high-performance 3D printing filament that is known for its strength and durability. Here are some examples of applications where Intamsys PA12-CF filament can be used:

Aerospace parts: Intamsys PA12-CF filament is used to produce lightweight and strong parts for the aerospace industry, such as drone frames, satellite components, and aircraft interior parts.

Automotive parts: Intamsys PA12-CF filament can be used to produce lightweight and high-strength parts for the automotive industry, such as engine components, suspension parts, and interior trim pieces.

Manufacturing jigs and fixtures: Intamsys PA12-CF filament can be used to produce custom jigs and fixtures for manufacturing processes, such as holding and aligning parts during assembly or machining.

Industrial machinery parts: Intamsys PA12-CF filament can be used to produce parts for industrial machinery that need to withstand high loads and stresses.

Sporting goods: Intamsys PA12-CF filament can be used to produce high-performance sporting goods, such as bicycle frames, golf club heads, and hockey sticks.

Medical devices: Intamsys PA12-CF filament can be used to produce lightweight and durable parts for medical devices, such as prosthetics and surgical instruments.

Overall, Intamsys PA12-CF filament is a high-performance material that is suitable for a wide range of applications that require strength, durability, and high stiffness-to-weight ratio.
pa12-cf-filament-intamsys-indicate-technologies-765731

Properties

Filament diameter 1.75 mm
Supported materials SP3040
Density 1.06 g/cm³
Elongation at Break 2.9 %
Flexural Modulus 3,532 MPa
Flexural Strength 114.1 MPa
Glass Transition Temperature 108 °C
Heat deflection temperature 105 °C
Impact strength 12.1 kJ/m²
Support material SP3050
Tensile Strength 69.3 MPa
Young’s Modulus 3,748 MPa
pa12-cf-filament-intamsys-indicate-technologies-765731

Compatibility

- Funmat HT
- Funmat Pro 410
- Funmat Pro 610HT

- Match support material: SP3050
