Form 4B

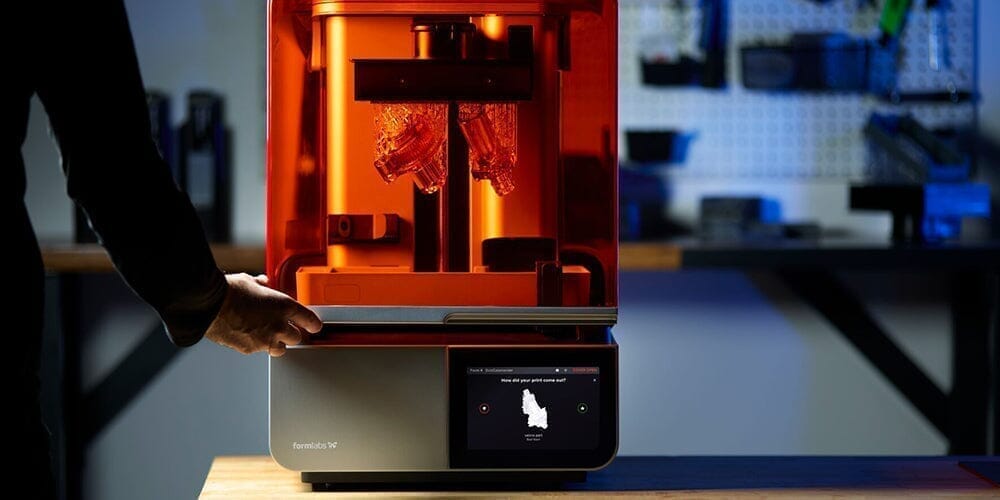

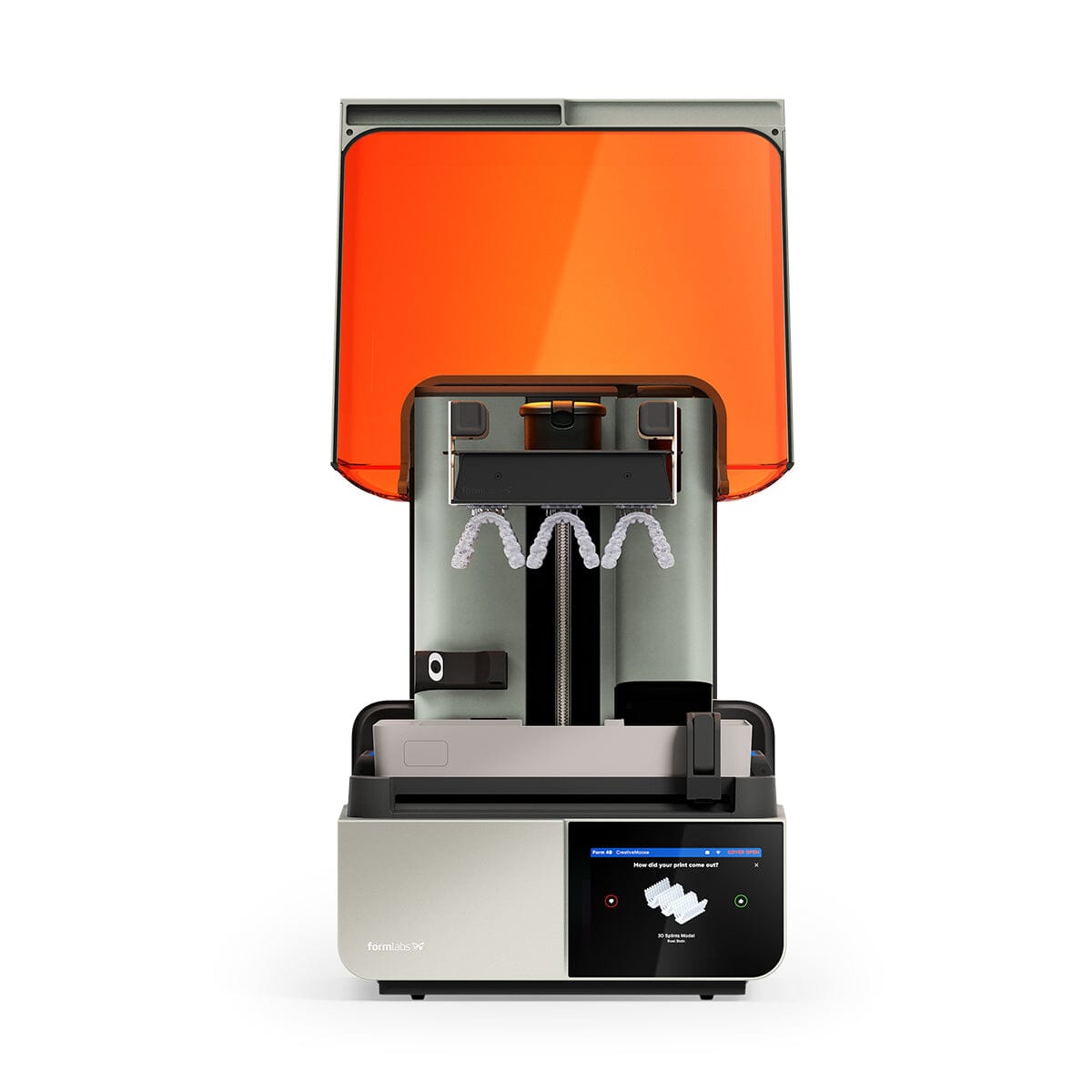

Form 4B is a blazing fast medical 3D printer that offers the most diverse materials library for healthcare. Create biocompatible, sterilizable anatomical models and medical devices fast, with easy workflows, leading reliability, versatile materials, and stunning part quality using the Form 4B ecosystem.


Form 4B’s speed is driven by Formlabs’ new Low Force Display Print Engine, a powerful combination of ultra-high power LEDs, collimating lenses, optical filters, and a robust liquid crystal display. Together they cure each layer of resin rapidly — regardless of part size or quantity. With tight tolerances, parts printed in every resin on Form 4B will match your design parameters, every time.



Form 4B Basic Medical Package (Printer, Resin Tank, Mixer, Build Platform, Finish Kit, 1 yr MSP)

Form 4B Complete Medical Package (Printer, Resin Tank, Mixer, Build Platform, Finish Kit, Form Wash, Form Cure, Solvent Pump, 1 yr MSP)

Form 4B Premium Medical Package (Printer, Resin Tank, Mixer, 2 x Build Platform, Finish Kit, 2 x Form Wash, Form Cure, Solvent Pump, Finishing Tools 3 yr MSP)

Type: Form 4B Basic Medical Package
  • Form 4B Basic Medical Package
  • Form 4B Complete Medical Package
  • Form 4B Premium Medical Package
From $6,299.00
Shipping calculated at checkout.
BLAZING FAST
Get more done with most prints in under 2 hours.
Produce stunning parts that always fit, rivaling injection molded parts.
Sharpest Details
Highly collimated light and 50 µm pixel size with pre-tuned anti-aliasing for subpixel resolution
Smoothest Surfaces
Lower peel forces, light touch supports, and 50 µm pixel size with pre-tuned anti-aliasing
Most Accurate Assemblies
±0.15% XY dimensional tolerances so assemblies always fit.
Injection_Mold
Tackle any problem with our industry-leading materials, or use Open Material Mode.
  • General Purpose
  • Tough
  • Rigid
  • Flame Retardant
  • Silicone
  • Elastic
  • Biocompatible
  • Polyurethane
  • Ceramic
  • Castable
  • Open Material Mode
Request a Demo
Optimized_For_Web_JPEG-20240220_Formlabs_0957_RTF_1
Unmatched reliability. Stop coming back to failed prints
Formlabs optimization engineers put hundreds of printed parts to the test to ensure each material performs to the most reliable standards, right out of the box.
Optimized_For_Web_JPEG-20240220_Formlabs_0081_RTF

Formlabs Form 4 and Form 4B Technical Specifications

Specification Form 4 Form 4B
TECHNOLOGY
Print Technology Low Force Stereolithography (LFS) with magnetically-stabilized LPU Low Force Stereolithography (LFS) with magnetically-stabilized LPU
Laser Type Single Light Processing Unit (LPU) with custom and replaceable optical path Single Light Processing Unit (LPU) with custom and replaceable optical path
Laser Spot Size 25 microns (0.025 mm) 80 microns (0.080 mm)
Wavelength 405 nm 405 nm
PRINTING SPECIFICATIONS
Build Volume 145 × 145 × 185 mm (5.7 × 5.7 × 7.3 in) 145 × 145 × 185 mm (5.7 × 5.7 × 7.3 in)
Layer Height 25 - 300 microns (0.025 - 0.3 mm) 25 - 300 microns (0.025 - 0.3 mm)
Accuracy ±50 microns (±0.050 mm) ±100 microns (±0.100 mm)
Primary Applications High-resolution engineering parts, jewelry, and small detailed models Biocompatible medical and dental applications
Optimized Materials Standard, Engineering, Jewelry, and Rigid resins Biocompatible, Dental, and Medical resins
HARDWARE
Dimensions 335 × 335 × 520 mm (13.2 × 13.2 × 20.5 in) 335 × 335 × 520 mm (13.2 × 13.2 × 20.5 in)
Weight 17.5 kg (38.5 lbs) 17.5 kg (38.5 lbs)
Operating Temperature 15-30 °C (59-86 °F) 15-30 °C (59-86 °F)
Power Requirements 100-240 VAC, 50/60 Hz, 60 W 100-240 VAC, 50/60 Hz, 60 W
SOFTWARE AND CONNECTIVITY
Software PreForm free print preparation software PreForm free print preparation software
File Types STL, OBJ, FORM STL, OBJ, FORM
Connectivity Wi-Fi, Ethernet, USB Wi-Fi, Ethernet, USB
User Interface 5.5" color touchscreen 5.5" color touchscreen
RESIN SYSTEM
Resin Capacity 750 mL 750 mL
Resin Compatibility Formlabs Standard, Engineering, Jewelry, and Rigid resins Formlabs Biocompatible, Dental, and Medical resins
Resin Storage Automated resin system with cartridge recognition Automated resin system with cartridge recognition
CERTIFICATIONS
Safety CE, FCC, KC, RoHS, WEEE CE, FCC, KC, RoHS, WEEE, Medical compatibility
Medical Certifications None Compatible with medical device standards
POST-PROCESSING
Recommended Accessories Form Wash, Form Cure Form Wash, Form Cure
Software Ecosystem PreForm, Dashboard PreForm, Dashboard
