Big Parts, Blazing Fast
Large prints in under 6 hours, 4.6x larger build volume than Form 4.
BLAZING SPEED MEETS INDUSTRIAL PRODUCTION
Get More Done with most Prints in under 2 hours.
TACKLE ANY PROBLEM
WITH OUR INDUSTRY-LEADING RESINS AND OPEN PLATFORM.
Leverage high-performance materials
optimized for impact resistance, rigidity,
flame retardancy, flexibility, and more.
Non-acrylate chemistries like true silicone,
ceramic, and polyurethane materials.
Certified third-party materials and open
mode available.
Option to customize print performance for
your exact part using editable and
shareable print settings.
STUNNING PARTS
THAT ALWAYS FIT WITH A SURFACE FINISH THAT RIVALS INJECTION MOLDING.
Sharpest details: highly collimated light with
pre-tuned anti-aliasing for subpixel resolution.
Smoothest surfaces: lower peel forces and
light touch supports.
Most accurate assemblies:
±0.15% XY dimensional tolerances so
assemblies always fit.
UNMATCHED RELIABILITY
STOP COMING BACK TO FAILED PRINTS.
Validated Print Settings
Intelligent Control Systems
Re-Engineered, Long-Lasting Consumables
Factory Calibration
Remote Monitoring

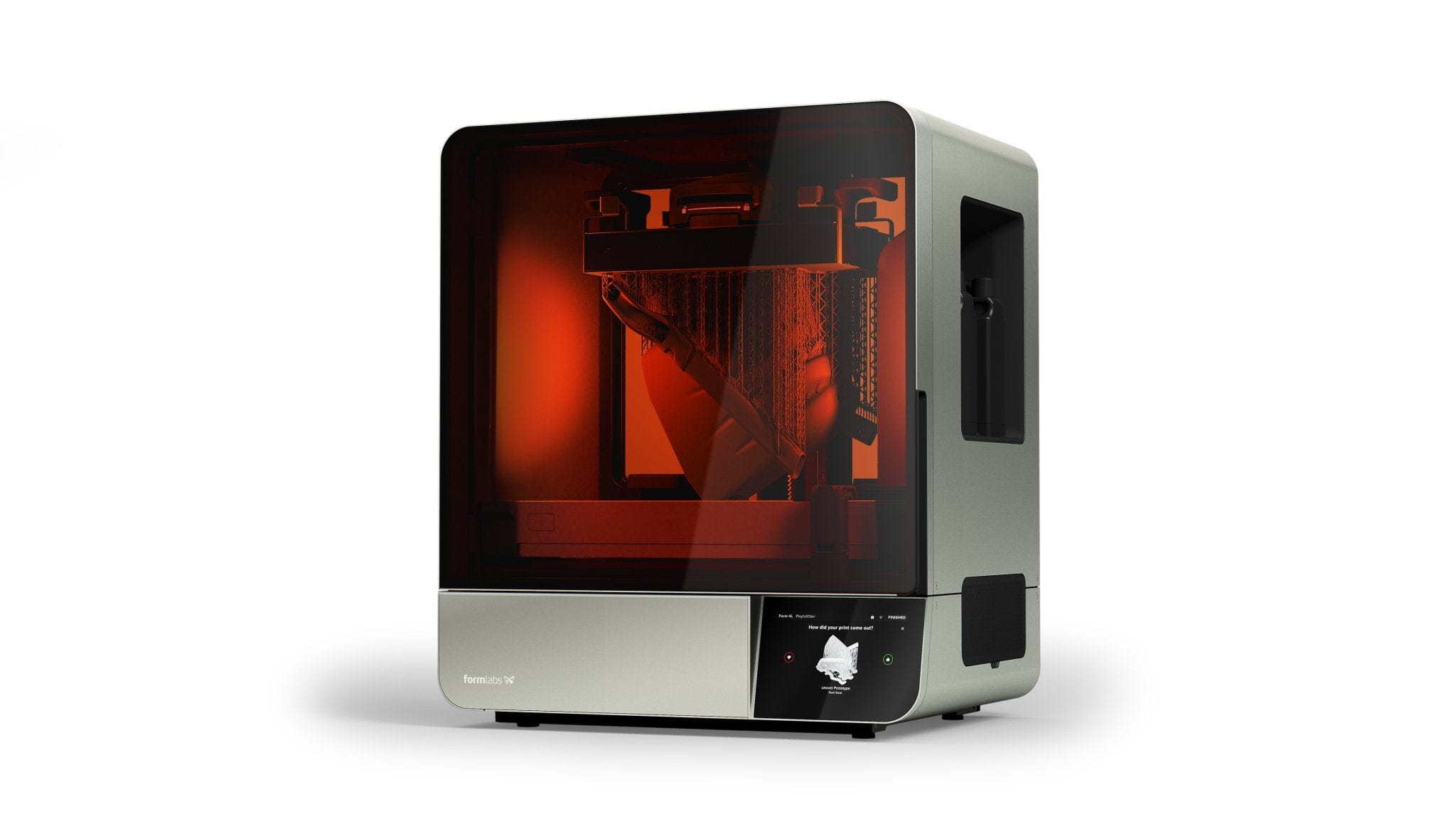

Formlabs Form 4L and Form 4BL Technical Specifications
| Specification | Form 4L | Form 4BL |
| TECHNOLOGY | ||
| Print Technology | Low Force Stereolithography (LFS) with magnetically-stabilized Light Processing Unit (LPU) | Low Force Stereolithography (LFS) with magnetically-stabilized Light Processing Unit (LPU) |
| Light Source | Single Light Processing Unit (LPU) with custom and replaceable optical path | Single Light Processing Unit (LPU) with custom and replaceable optical path |
| Laser Spot Size | 80 microns (0.080 mm) | 160 microns (0.160 mm) |
| Wavelength | 405 nm | 405 nm |
| PRINTING SPECIFICATIONS | ||
| Build Volume | 335 × 200 × 300 mm (13.2 × 7.9 × 11.8 in) | 335 × 200 × 300 mm (13.2 × 7.9 × 11.8 in) |
| Layer Height | 25 - 300 microns (0.025 - 0.3 mm) | 25 - 300 microns (0.025 - 0.3 mm) |
| Accuracy | ±100 microns (±0.100 mm) | ±150 microns (±0.150 mm) |
| Print Speed | Up to 3x faster than Form 3L | Up to 3x faster than Form 3L |
| Primary Applications | Large format engineering parts, production runs, and detailed models | Large format biocompatible medical and dental applications |
| Optimized Materials | Standard, Engineering, and Rigid resins | Biocompatible, Dental, and Medical resins |
| HARDWARE | ||
| Dimensions | 775 × 485 × 755 mm (30.5 × 19.1 × 29.7 in) | 775 × 485 × 755 mm (30.5 × 19.1 × 29.7 in) |
| Weight | 54.4 kg (120 lbs) | 54.4 kg (120 lbs) |
| Operating Temperature | 15-30 °C (59-86 °F) | 15-30 °C (59-86 °F) |
| Power Requirements | 100-240 VAC, 50/60 Hz, 160-220 W | 100-240 VAC, 50/60 Hz, 160-220 W |
| SOFTWARE AND CONNECTIVITY | ||
| Software | PreForm free print preparation software, Dashboard | PreForm free print preparation software, Dashboard |
| File Types | STL, OBJ, FORM | STL, OBJ, FORM |
| Connectivity | Wi-Fi, Ethernet, USB | Wi-Fi, Ethernet, USB |
| User Interface | 5.5" color touchscreen | 5.5" color touchscreen |
| RESIN SYSTEM | ||
| Resin Capacity | Up to 5 L | Up to 5 L |
| Resin Compatibility | Formlabs Standard, Engineering, and Rigid resins | Formlabs Biocompatible, Dental, and Medical resins |
| Resin Storage | Automated resin system with cartridge recognition | Automated resin system with cartridge recognition |
| Resin Dispensing | Automated dispensing system | Automated dispensing system |
| CERTIFICATIONS | ||
| Safety | CE, FCC, KC, RoHS, WEEE | CE, FCC, KC, RoHS, WEEE, Medical compatibility |
| Medical Certifications | None | Compatible with medical device standards |
| POST-PROCESSING | ||
| Recommended Accessories | Form Wash L, Form Cure L | Form Wash L, Form Cure L |
| Air Filtration | Built-in HEPA and activated carbon filter | Built-in HEPA and activated carbon filter |
