Form 3L

In Stock

$5,999.00
Save {}Sold out

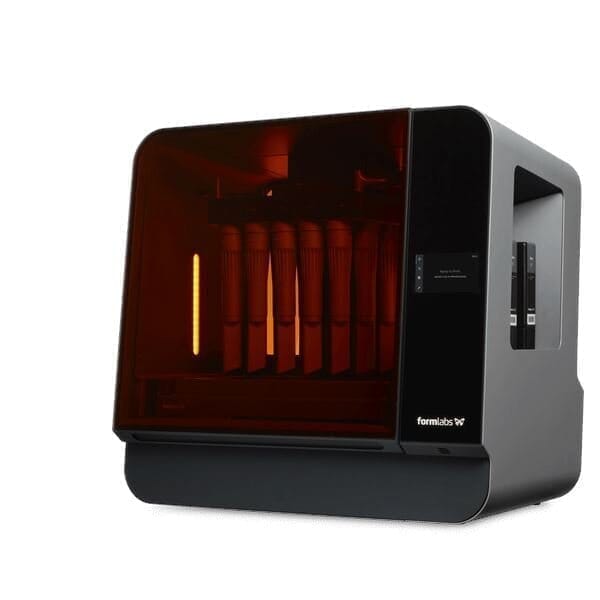

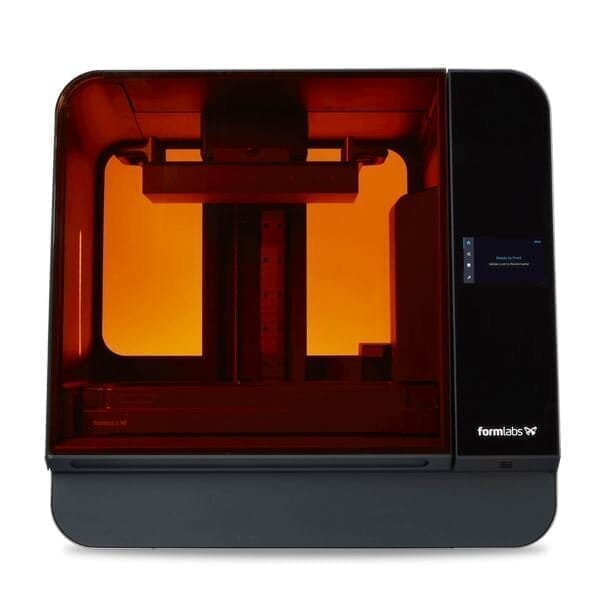

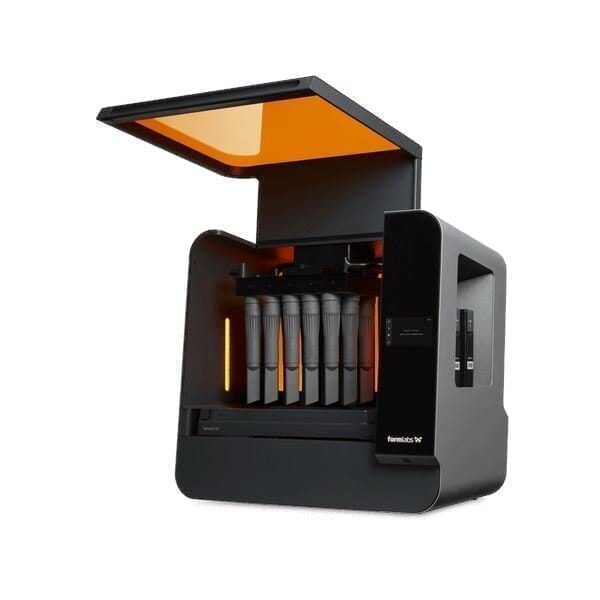

A Large Format 3D Printer Compact Enough for the Office and Robust Enough for the Factory Floor

Take control of large-format prototyping and bring your biggest ideas to life with the Form 3L, a cost-effective large scale 3D printer that doesn’t compromise on the details.



Each Form 3L large format SLA 3D printer includes the essential tools required to start printing. Whether you’re printing full-scale bulky prototypes or detailed models, the Form 3L is the ideal solution for using 3D printing to bring your big ideas to life.



Fabricate large parts with the incredible surface finish and fine detail that stereolithography 3D printing is known for. The Form 3L prints around the clock with minimal supervision and is compact enough for an office and robust enough for the factory floor.



Each Form 3L package includes a one-year warranty.

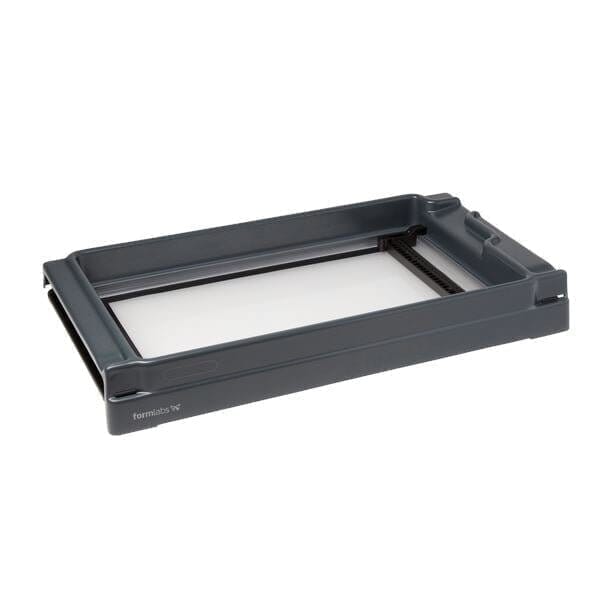

Form 3L Basic Package (Form 3L Printer, Resin Tank, Build Platform, Cleaning Tool, Rinse Bucket)

Form 3L Complete Package (Form 3L Printer, Resin Tank, Build Platform, Cleaning Tool , Wash L, Cure L)

Package:
  • Form 3L Basic Package
  • Form 3L Complete Package
SKU: PKG-F3L-WS-BASIC

Big Parts, Big Ideas

With a large build volume of 33.5 × 20 × 30 cm (13.2 × 7.9 × 11.8 in),
you can print full-scale bulky prototypes or detailed models.
outsourcing_icon_e89f0d3e-6541-47f9-9e45-7fb10f861049

Stop outsourcing large-scale prints

Work faster with a large format 3D printer that’s versatile enough to bring large scale fabrication in-house.
large_ideas_icon_a96e794e-0ede-49af-bc91-16c1c9baa53a

Life-sized prints for larger-than-life ideas

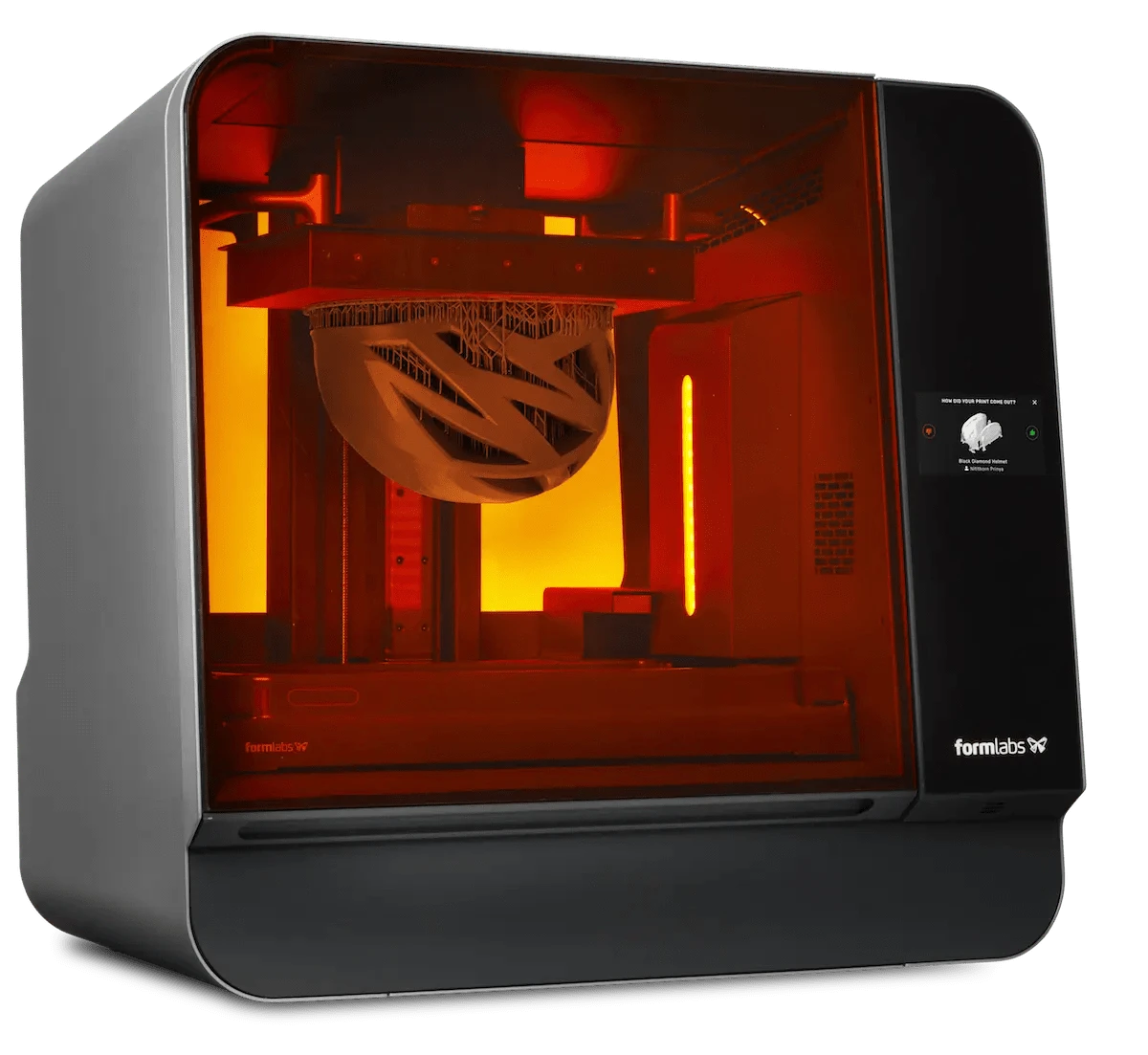

The Form 3L is large enough to print human-scale models, like a prototype of a helmet that’s ready to try on.
scale_perfectionism_icon_9a566407-1e5e-4687-a220-1b8cafb056ff

Perfectionism that scales

Two precision Light Processing Units inside this large resin printer achieve consistent accuracy and detail across the entire build platform.

Helmet

Nozzles

Jig

Shovel

Enclosure

Spoon

Material
Draft Resin
Print Time
8 hours
Print Cost
$88
Part By
Black Diamond Equipment
form_3l_helmet
Material
Grey Resin
Print Time
59 hours
Print Cost
$7
20 per build
Part By
Formlabs
form_3l_nozzles
Material
Tough 2000 Resin
Print Time
33 hours
Print Cost
$72
Part By
Continental
jig
Material
Grey Resin
Print Time
52 hours
Print Cost
$87
Part By
Black Diamond Equipment
3lshovel
Material
Grey Resin
Print Time
60 hours
Print Cost
$115
Part By
Minnetronix
enclosure_3l_formlabs
Material
Grey Resin
Print Time
23 hours
Print Cost
$17
Part By
OXO
spoon
form3l-intuitive

Intuitive and efficient

No specialized technicians required: The Form 3L features automatic resin dispensing, user-friendly print preparation software, and an intuitively designed interface.

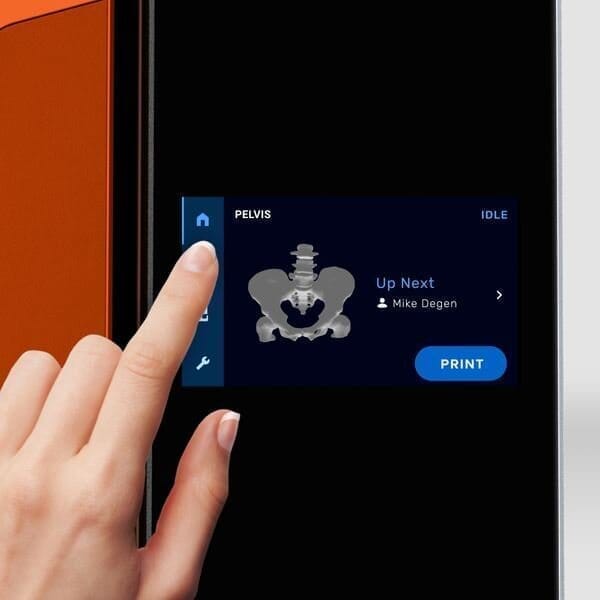

High-resolution touchscreen interface:
Featuring a 5.5” interactive full-color display, it reduces errors and eliminates the need for constant monitoring.

Automated print setup:
Backed by millions of successful prints, our complimentary print preparation software, PreForm, automatically recommends optimal orientation, supports, and layout, with the option for manual adjustments.

Continuously evolving:
Embracing the philosophy of constant improvement, we ensure our hardware evolves through ongoing software enhancements.

Print around the clock

The Form 3L attentively oversees print operations, freeing you to concentrate on realizing your boldest concepts. Integrated sensors uphold optimal printing conditions, ensuring uninterrupted productivity with minimal oversight.

Cloud-Based Oversight:
Effortlessly supervise and control your array of large-scale 3D printers using the online Dashboard, accessible remotely.

Rapid-Printing Material:
Draft Resin strikes a balance between detail and speed, expediting the creation of voluminous prototypes and facilitating swift iterations.

On-Site Maintenance:
Critical components such as the Light Processing Units, rollers, and optics window are designed for in-house replacement, guaranteeing seamless operation round the clock.
3l-formlabs-print
form_3l_quality

Professional Parts

Stop sacrificing on quality for large-format 3D prints. The Form 3L provides the smooth surface finish, fine details, and high-performance properties that resin 3D printing is known for.

25μm
XY Resolution

25 - 300μm
Layer Thickness

Smooth Surface Quality
Objects produced on the Form 3L exhibit a refined, injection-molded appearance and possess the potential for exceptional translucency, offering a prototyping experience akin to reality.

Reliable Accuracy
Employing a configuration of lasers and mirrors, the system maintains consistent printing precision, achieving an XY resolution of 25 microns throughout the build area.

Cutting-Edge Materials
Every material offered by Formlabs is accompanied by finely-tuned print configurations, ensuring unparalleled success rates and dependability, while delivering exceptional mechanical, thermal, or biocompatible characteristics.
formlabs-quote-black-diamond-equipment

Form 3L
Technical Specifications

Build Volume(WxDxH)
33.5 × 20 × 30 cm / 13.2 × 7.9 × 11.8 in
XY Resolution
25 microns
Biocompatible Materials
No
Laser Power
Two 250 mW lasers
Weight
54.4 kg / 120 lb
Printer Dimensions (W × D × H)
77 × 52 × 74 cm / 30.3 × 20.5 × 29.1 in

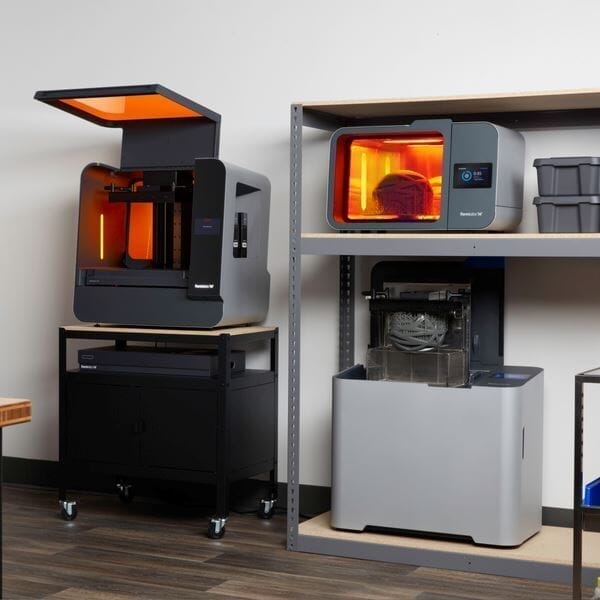

The Form 3L Ecosystem Workflow
