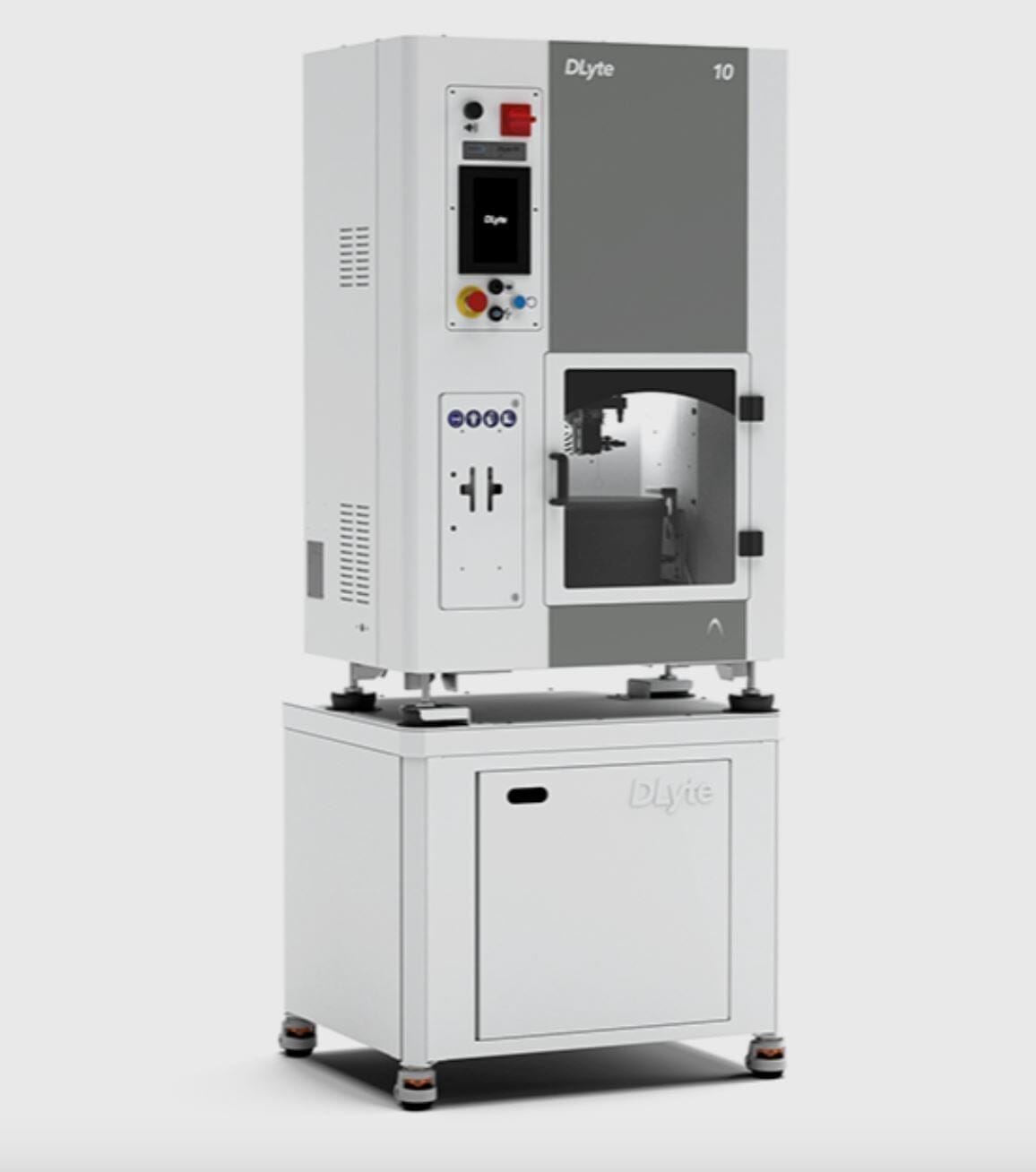

DLyte 10

DLyte 10 is an advanced metal surface finishing apparatus employing dry electropolishing technology, catering to businesses with moderate manufacturing volumes. It is meticulously crafted for the treatment of high-value, small, fragile, and delicate components demanding precision finishing.



Moreover, it serves as an invaluable tool for research and development purposes.
This machine simplifies the current complex multi-step finishing procedures with its one-step automated process, simultaneously enhancing cost-effectiveness and ensuring consistent results. Notably, it eliminates the need for a closed-loop water recycling system and sludge waste treatment equipment, reducing space requirements, labor demands, and environmental permits related to waste management. DLyte 10 is ideal for treating components with a working volume capacity of 140 Ø mm x 75 mm and a maximum weight of 2.5 kg.



Anti-vibratory system and Holder Checking Tool included.



FINISHING PROCESSES
+ Precision finishing + Smoothing + Mirror finishing + Deburring
+ Rounding + Corrosion resistance + AM post-processing

SKU: N/A

DLyte 10 Product Features

Consistent Outcomes
A uniform outcome is achieved through a blend of three distinct motion types. An automated system for adjusting electrolyte conductivity comprises a conductivity sensor and a high-precision pump, which automatically fine-tunes the media's conductivity.
dlyte-10-dlyte-indicate-technologies-188856
Enhanced Processes through Hardware and Software
The synergy of precise hardware and software, intelligent electronic parameter supervision, and efficient regulation of electrolyte media flow guarantees process enhancement and a stable performance of the electrolyte media. This, in turn, ensures unwavering process quality over the entire lifespan of the electrolyte media.

Technical Specifications

Machine Specifications

Series Model

Technical Drawing

Machine Specifications
Capacity (per cycle)
140 Ø mm x 75 mm (maximum centered to the axis)

Machine dimensions
818 x 1280 x 637,6 mm

Support dimensions
818 x 717 x 674 mm

Machine weight
173.5 kg

Support weight
87 kg
Power
3 kW (single phase with industrial plug)

Voltage
220 V - 240 V

Air pressure
4-5 bar (air connector: 8mmØ or 1/4’ BSP’)

Flow rate: 40 l/min. The air quality must be 1.5.1 in accordance with the ISO 8573 standard. This air quality requires six-monthly maintenance (filter changes).
dlyte-10-dlyte-indicate-technologies-188856
Series Model
MODEL NAME
DLyte 10
FREQUENCY
LF
DESCRIPTION
Designed to treat materials included in the Steel group, Cobalt-chrome group, Copper and Nickel based alloys group with Low Frequency parameters.
DLyte 10 HF
HF
Designed to treat materials included in the Steel group, Titanium group, Nickel based alloys group and Aluminium group with High Frequency parameters.
DLyte 10 +HF
LF+HF
Designed to treat materials included in the Steel group, Cobalt-chrome, Titanium group,
Copper based alloys group, Nickel based alloys group, and Aluminium group materials
with High Frequency and Low Frequency parameters.
Technical Drawing
DLyte-10-tecg-draw

Featured Video

Watch the featured video for DLyte 10:
 Cobalt-Chrome & Titanium Partial Frameworks Polishing
