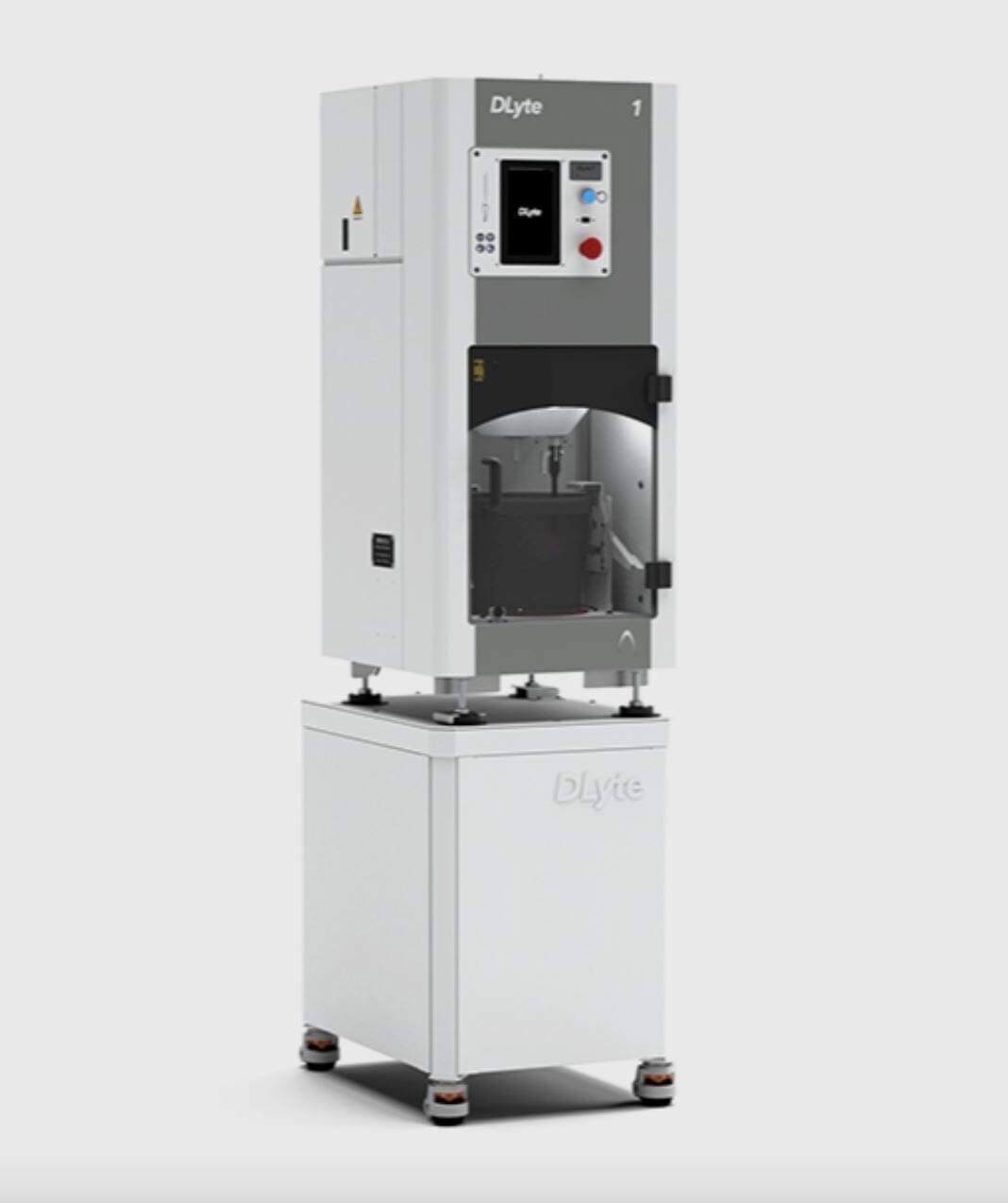

DLyte 1

DLyte 1 stands as the most compact member of the Compact Series range, offering dry electropolishing technology for metal surface finishing.



It is meticulously designed for the treatment of small, delicate, and highly demanding components, particularly those of high value and intended for research and development purposes. Its streamlined one-step automated process simplifies the often intricate and multi-step finishing procedures, simultaneously enhancing cost-efficiency and repeatability.



Unlike conventional systems, this machine operates without the need for a closed-loop water recycling setup and sludge waste management equipment, thereby reducing the space requirements, labor, and environmental permits associated with waste management. It is well-suited for treating components with a workable volume capacity of 90 Ø mm x 70 mm and a maximum weight of 1.5 kg.



Anti-vibratory system and Holder Checking Tool included.



FINISHING PROCESSES
+ Precision finishing + Smoothing + Mirror finishing + Deburring
+ Rounding + Corrosion resistance + AM post-processing

SKU: N/A
Request for Quote

DLyte 1 Product Features

Consistent Outcomes
A uniform outcome is achieved through a blend of three distinct motion types. An automated system for adjusting electrolyte conductivity comprises a conductivity sensor and a high-precision pump, which automatically fine-tunes the media's conductivity.
DLyte1
Enhanced Processes through Hardware and Software
The synergy of precise hardware and software, intelligent electronic parameter supervision, and efficient regulation of electrolyte media flow guarantees process enhancement and a stable performance of the electrolyte media. This, in turn, ensures unwavering process quality over the entire lifespan of the electrolyte media.

Technical Specifications

Machine Specifications

Series Model

Technical Drawing

Technical Specifications
Capacity (per cycle)
90 Ø x 70 mm (maximum volume)

Machine dimensions
500 x 1150 x 646 mm

Support dimensions
500 x 717 x 672.4 mm

Machine weight
96 kg

Support weight
47 kg
Power
2 kW

Voltage
220 V – 240 V

Air pressure
4-5 bar

Flow rate: 40 l/min. The air quality must be 1.5.1 in accordance with the ISO 8573 standard. This air quality requires six-monthly maintenance (filter changes).
DLyte1
Series Model
MODEL NAME
DLyte 1
FREQUENCY
LF
DESCRIPTION
Designed to treat materials included in the Steel group, Cobalt-chrome group, Copper and Nickel based alloys group with Low Frequency parameters.
DLyte 1 HF
HF
Designed to treat materials included in the Steel group, Titanium group, Nickel based alloys group and Aluminium group with High Frequency parameters.
DLyte 1 +HF
LF+HF
Designed to treat materials included in the Steel group, Cobalt-chrome, Titanium group, Copper based alloys group, Nickel based alloys group, and Aluminium group materials with High Frequency and Low Frequency parameters.
Technical Drawing
DLyte1-tech-drawing

Featured Video

Watch the video for the DLyte 1 and DLyte Desktop: Polish Crowns and Bridges Easier Than Ever:
