From real scenes to digital twins in minutes
Whether you’re capturing large machinery, vertical shafts, factories, open-air sites, or road networks, Artec Jet scales effortlessly to match the scope and complexity of your project. Access environments that are difficult to reach or dangerous to enter — and scan critical assets with a single device built for the toughest conditions.
Artec Jet is a high-speed mobile LiDAR mapping system that combines SLAM-based positioning and AI-powered autonomy to capture sites, facilities & infrastructure, even in GPS-denied environments – in minutes rather than hours, with survey-grade accuracy.

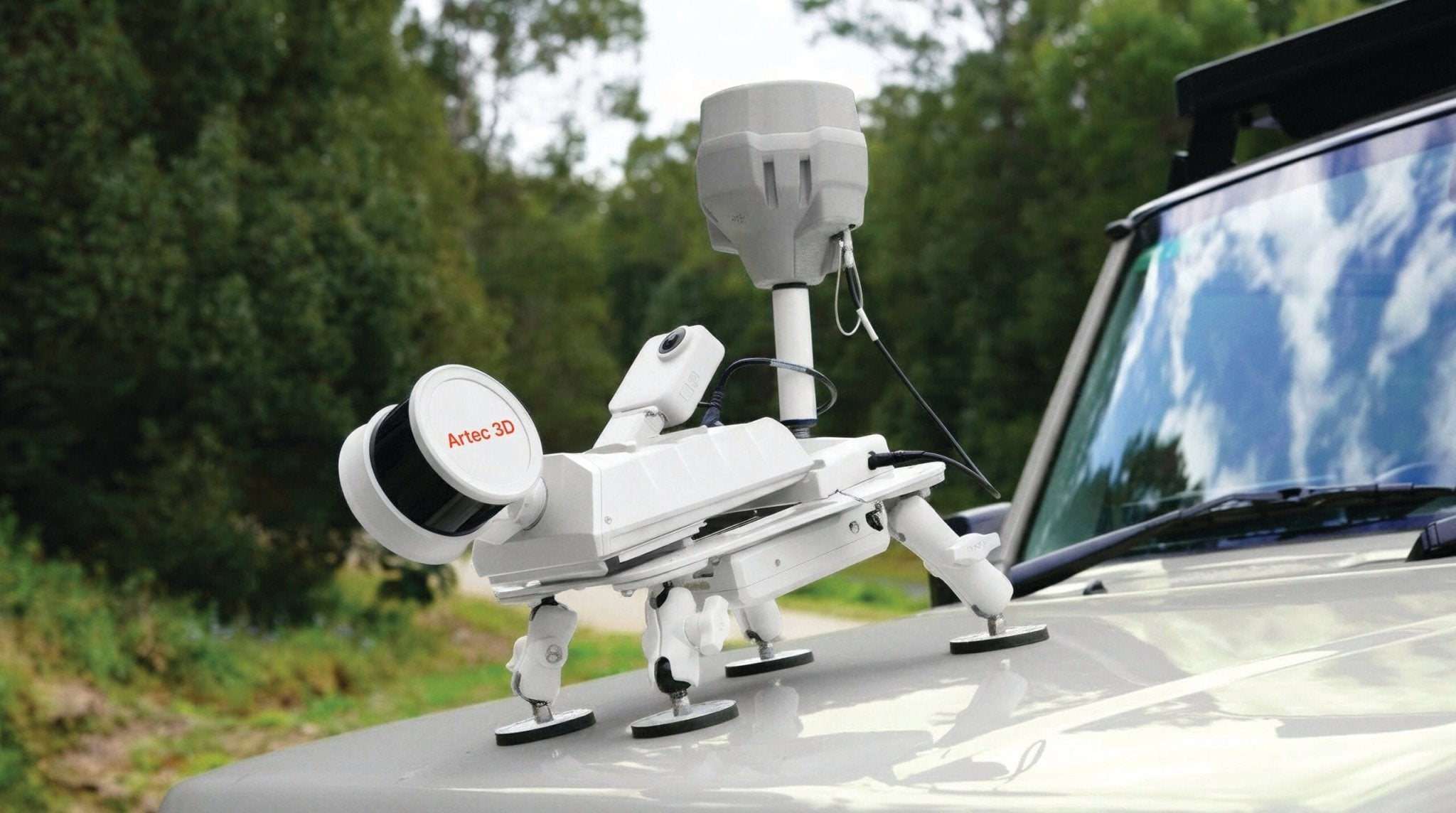

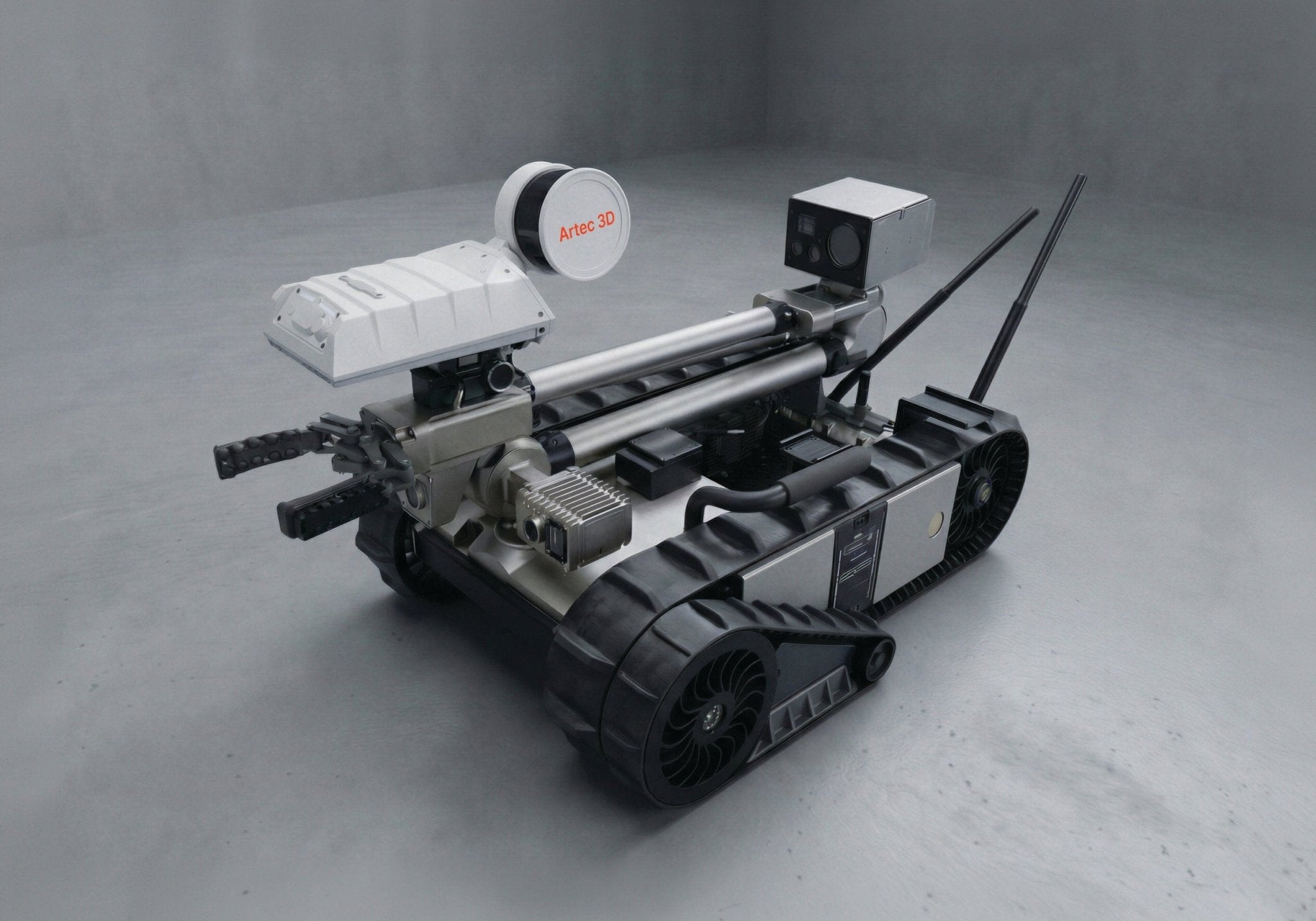

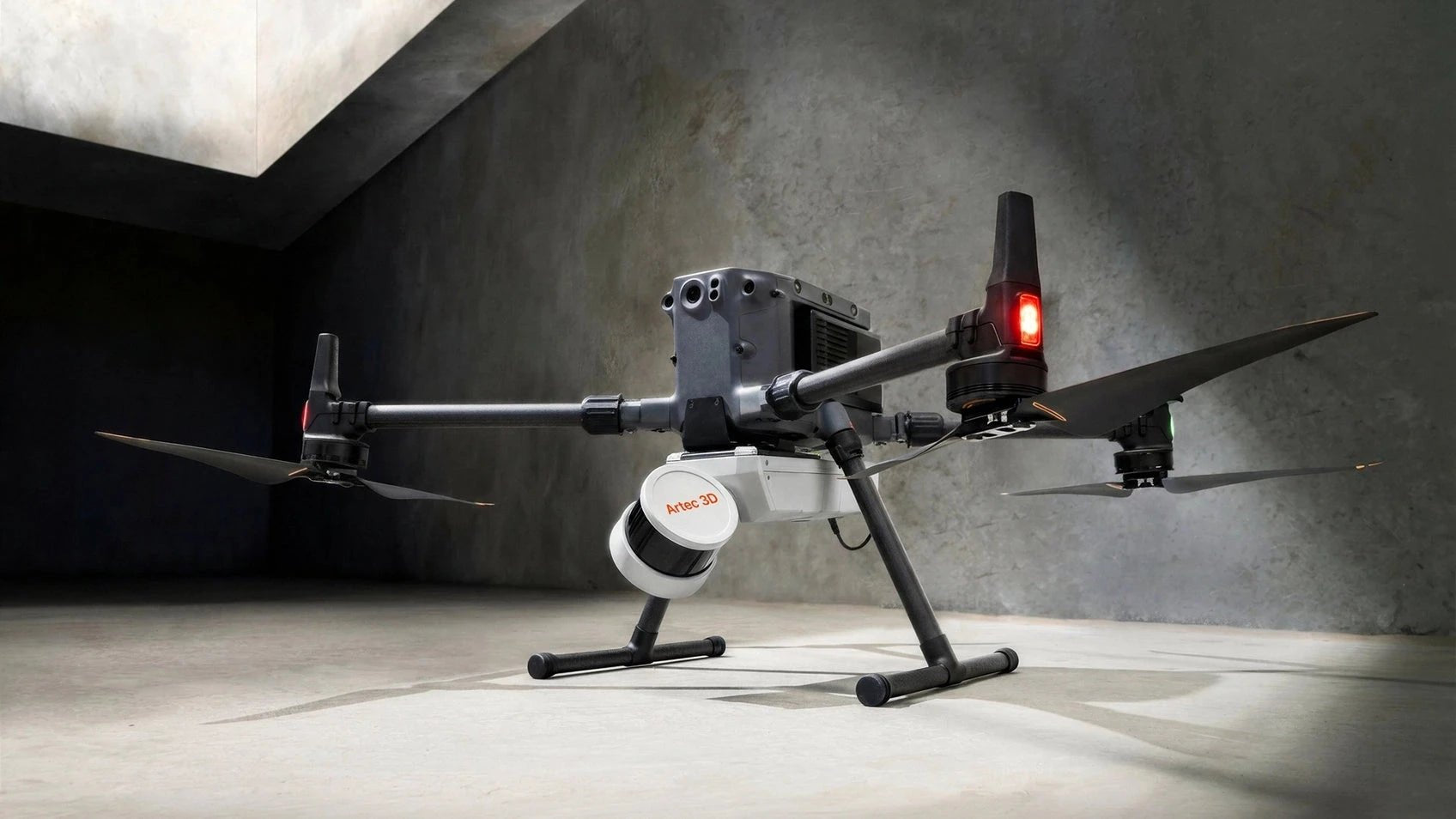

Capture by hand, or mount to a backpack, robot, vehicle, or drone. Artec Jet offers multiple different deployment modes in a single compact, lightweight device. Choose the modality that best suits your application, whether it be open-air surveying or underground mapping, and ensure that on-site teams steer clear of hazardous, hard-to-reach areas.
Within the mining, construction, defense, public safety, and civil infrastructure industries, Artec Jet captures accurate data, ideal for digital twins, as-built documentation, volumetric measurement, clash detection, and inspection.
Together with Artec Ray II and Leo, scanners well-suited to large-object and fine-detail capture, Artec Jet enables a complete pipeline for digitizing everything from sites to components.
Capture by hand, or mount to a backpack, robot, vehicle, or drone. Artec Jet offers multiple different deployment modes in a single compact, lightweight device. Choose the modality that best suits your application, whether it be open-air surveying or underground mapping, and ensure that on-site teams steer clear of hazardous, hard-to-reach areas.
Within the mining, construction, defense, public safety, and civil infrastructure industries, Artec Jet captures accurate data, ideal for digital twins, as-built documentation, volumetric measurement, clash detection, and inspection.
Together with Artec Ray II and Leo, scanners well-suited to large-object and fine-detail capture, Artec Jet enables a complete pipeline for digitizing everything from sites to components.
Capture at speed with survey-grade accuracy
Artec Jet’s high-resolution LiDAR sensors and industry-leading SLAM technology deliver detailed point clouds at high speed – for reliable data capture over wider areas in less time.
Digitize any environment without exception
Gather accurate data anywhere, in any conditions, without having to rely on external infrastructure such as GPS mapping and guidance.
Underground
Urban Mapping
Outdoor Structures
Indoor Facilities
Industrial Space
Technical Specifications
Technical Specifications
Mapping
| Mapping method | SLAM-based LiDAR mapping, ±0.03% drift |
| LiDAR sensing range | 0.5–300 m (1.6–984 ft) |
| LiDAR accuracy | ±10 mm (3/8 in) |
| Mapping accuracy (general) | ±15 mm (19/32 in) |
| Mapping accuracy (indoor/underground) | ±10 mm (3/8 in) |
| Change detection capability | ±5 mm (7/32 in) |
| Field of view | 360° × 290° |
| Acquisition (single return) | Up to 640,000 points/second |
| Acquisition (triple return) | Up to 1,920,000 points/second |
| Max travel speed (vehicle) | 60 km/h (37.3 mph) |
| Max travel speed (flight, above ground) | 5 m/s (16.4 ft/s) |
| Max travel speed (flight, underground) | 2 m/s (6.6 ft/s) |
| Start/stop while walking or hovering | Yes |
| Laser class | Class 1 (eye safe) |
Physical & Environmental
| Ingress protection | IP65 |
| Operating temperature | -10 to 45°C (14–113°F) |
| Weight | 1.57 kg (3.46 lb) |
| Power | 14–54 V, 64W (battery or auxiliary) |
| Onboard storage | 512 GB (~16 hrs) |
| Quick release mount | Yes |
| Deployment modes | Handheld, backpack, drone, vehicle, cage, telescopic pole, robot |
Output & File Formats
| Point cloud formats | LAS, LAZ, PLY, E57 |
| Outputs | Full resolution point cloud, decimated point cloud, trajectory file |
| Point attributes | Intensity, range, time, return number (strongest, first & last), ring number, RGB/true color (optional) |
Autonomy & Safety
| Flight modes — Pilot Assist | Non-GPS flight, position hold, assisted flight, collision avoidance, regulated flight speed |
| Flight modes — Autonomous | Autonomous navigation to waypoints |
| AL2 waypoint types | 2D, 3D, planar, height |
| AL2 navigation modes | Guided exploration, local and global path planning |
| Collision avoidance FOV | 360° × 360° |
| Collision avoidance range | 1.2–40 m (3.9–131 ft) |
| Min. obstacle detection | ≥2 mm wire |
| In-flight adjustable safety distance | Yes |
| Return-to-home | Low battery / excessive dust trigger |
Interfaces
| Auxiliary port | Proprietary connector |
| USB | Yes |
| Wi-Fi | Internal antenna |
| Supported drones | DJI M300, DJI M350, Freefly Astro Max |
| Autopilot compatibility | DJI M300, DJI M350, Freefly Astro Max |
