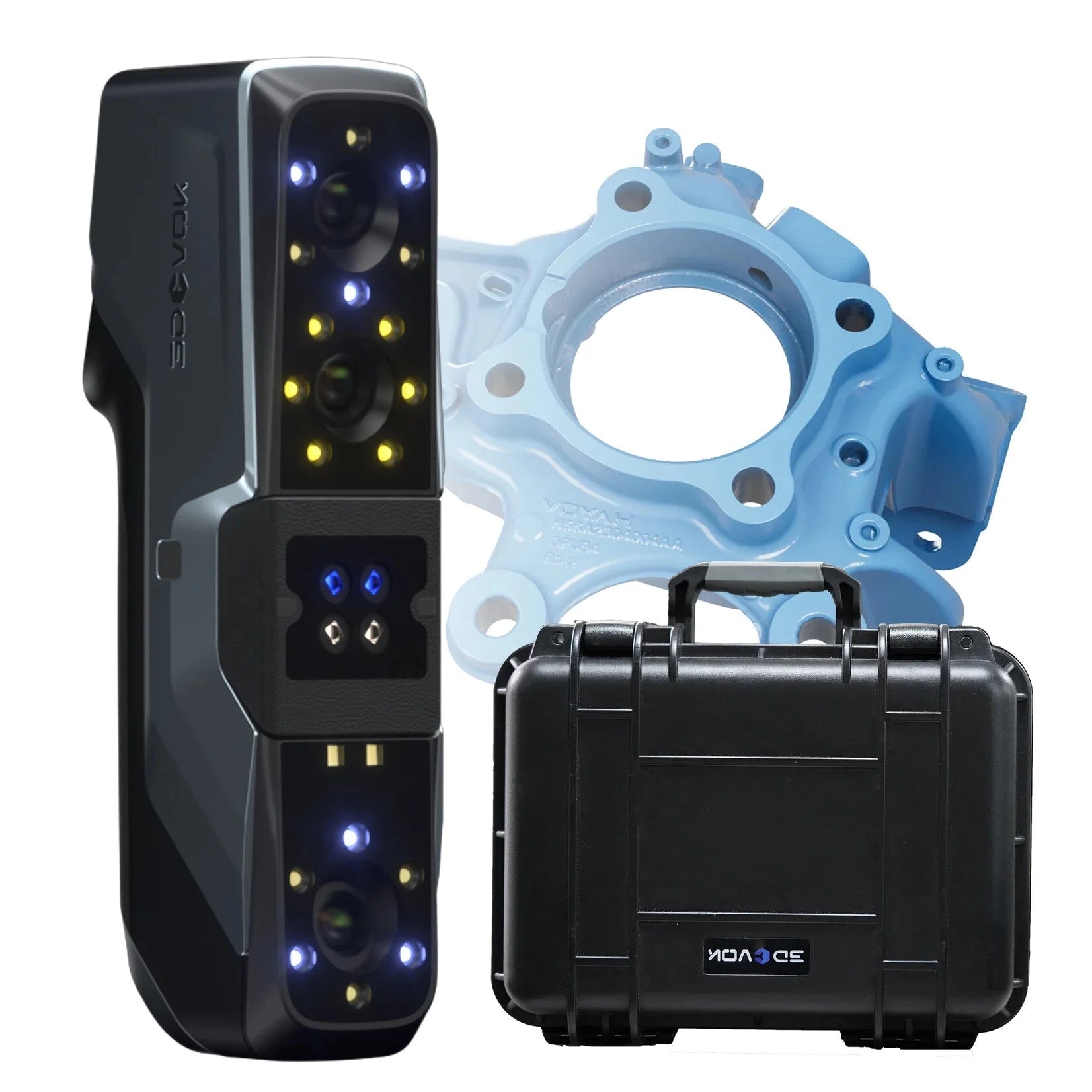

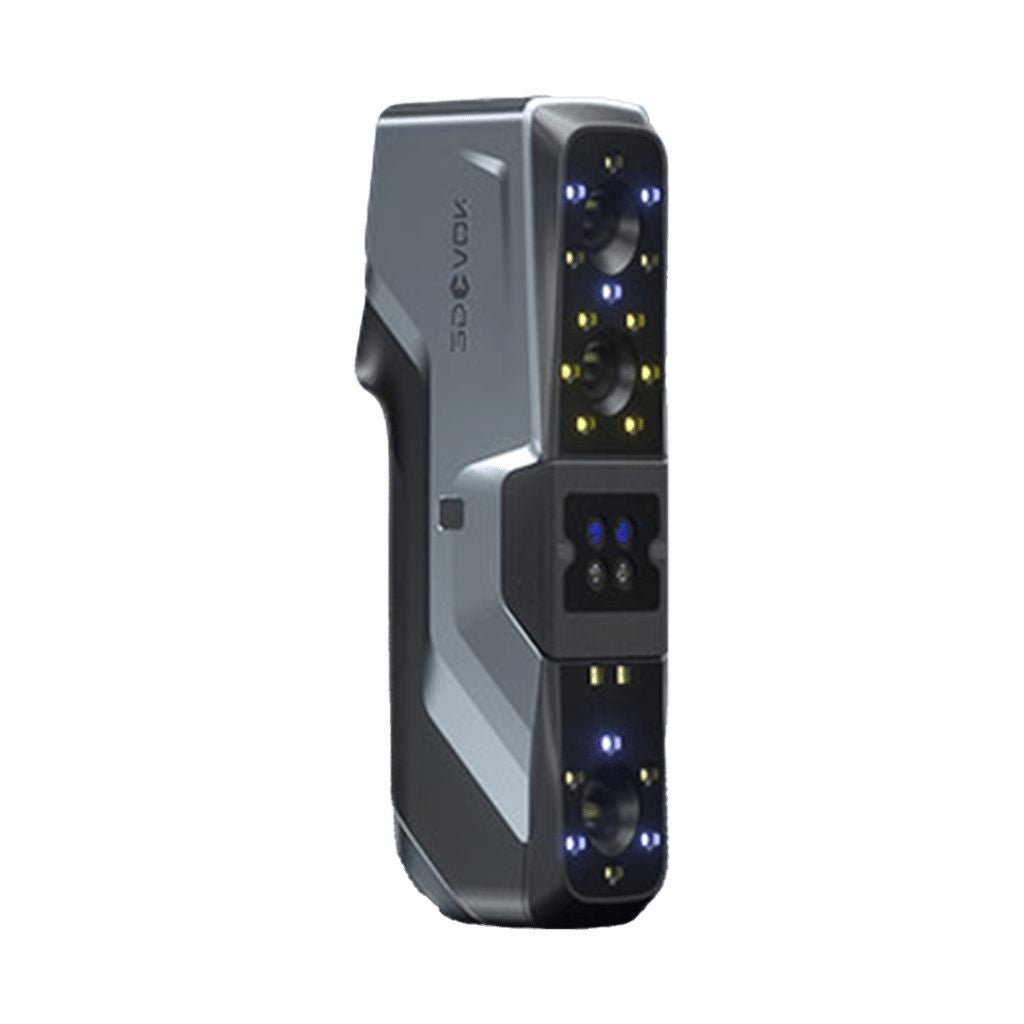

Scantech 3DeVOK-MT

The 3DeVOK MT is a professional and versatile 3D scanner that stands out for its exceptional performance. Based on industrial-grade 3D scanning technology, it
incorporates both lasers and speckles to offer you a magic tool. With professional scanning software, flexible parameter settings, intuitive interaction, and reliable performance, it significantly enhances work efficiency. It is an excellent solution for scanning objects of almost any kind, making it ideal for artistic design, reverse engineering, 3D measurement, 3D visualization, 3D printing, research, education and more.

Three Types of Light Sources: 34 blue laser lines, 22 infrared laser lines, and large-area infrared speckle enable precise data capture across multiple scanning modes.

Marker-free Scanning: The scanner operates without requiring markers, offering seamless 3D scanning across three light source modes, improving workflow efficiency.

Advanced Hybrid Alignment: Advanced alignment technologies allow smooth, accurate scans, even on surfaces with limited geometry.

Industrial-Grade Performance: Achieving a scanning accuracy of up to 0.04 mm, resolution up to 0.05 mm, and scanning speeds of up to 4.5 million points per second, the MT offers a powerful solution for professionals.

Large-Scale Scanning Capabilities: The scanner’s impressive scanning area of up to 1100 mm by 1000 mm and scanning distance of up to 1500 mm enables quick and efficient scanning of medium to large objects.

Exceptional Adaptability: The 3D scanning system excels in dark environments, outdoor settings, and on surfaces with black, shiny finishes, ensuring precise, reliable scans in challenging conditions and diverse surfaces.

Introducing the Nimbletrack-E
The NimbleTrack wireless 3D scanning system is highly compact and agile, which is designed to redefine the precise 3D measurements of small-to-medium-sized parts. Thanks to powerful on-board chips and built-in battery power supply, its 3D scanner and optical tracker are fully wireless, enabling true freedom.


With the most advanced technology, it offers the ultimate 3D scanning experience for users. Both the 3D scanner and tracker can be used for vast applications to deliver efficient and reliable measurement experiences.

NimbleTrack ushers in the third generation of Scantech’s 3D scanning technology featured by intelligent and wireless 3D scanning. With its wireless, target-free, precise 3D scanning and high portability, NimbleTrack revolutionizes the field of 3D scanning.
Technical Specifications
Scan mode

Ultra-fast scanning
17 blue laser crosses
Hyperfine scanning
7 blue parallel laser lines
Deep hole scanning
1 blue laser line
Accuracy for scanner-only mode

Up to 0.020 mm (0.0008 in)

Accuracy for system

Up to 0.025 mm (0.0009 in)

Tracking distance per
i-Tracker

3200 mm (126.0 in)

Volumetric accuracy
(With MSCAN photogrammetry system )

0.044 mm + 0.012 mm/m (0.0017 in + 0.00014 in/ft)

Hole position accuracy

0.050 mm (0.0020 in)

Laser class

Class II (eye-safe)

Resolution up to

0.020 mm (0.0008 in)

Stand-off distance

300 mm (11.8 in)

Depth of field

400 mm (15.7 in)

Scanning area up to

500 mm × 600 mm (19.7 in × 23.6 in)

Scanning frame rate

120 fps

Measurement rate up to

4,900,000 measurements/s

Output format

.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.

Scanner Dimensions & Weight

Dimension of i-Scanner 238 mm × 203 mm × 230 mm (9.4 in × 8.0 in × 9.1 in)
Weight of i-Scanner 1.3 kg (Net weight) (2.87 lb)
  1.4 kg (Battery and wireless module included) (3.09 lb)
Dimension of i-Tracker 570 mm × 87 mm × 94 mm (22.4 in x 3.4 in x 3.7 in)
Weight of i-Tracker 2.2 kg (Net weight) (4.85 lb)
  2.6 kg (Battery and wireless module included) (5.73 lb)
Size of protection case 1000 mm × 425 mm × 280 mm (39.4 in × 16.7 in × 11.0 in)

Operating temperature range

-10°C–40°C (14℉-104℉)

Operating humidity (Non-condensation)

10-90% RH

Wireless operating mode

i-Scanner, i-Tracker, i-Scanner + i-Tracker, i-Tracker + i-Probe, Wireless multi-tracker tacking, Edge Inspection

Certifications

CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC

Patents

CN109000582B, CN211121096U, CN210567185U, CN111678459B, CN114001696B, CN114554025B, CN114205483B, CN113514008B, CN114627249B, CN112867136B, CN218103220U, CN218103238U, CN307756797S,CN113340234B, CN112964196B, CN115289974B, CN113188476B, CN218411072U, CN115325959B, CN218584004U, CN115661369B, CN218734448U, CN115493512B, CN110992393B, CN116136396B,CN113432561B, CN219834226U, CN219829788U, CN116244730B, CN116206069B, US10309770B2, US10309770B2, US11060853B2, KR102096806B1, EP3392831B1, US11493326B2
