S7

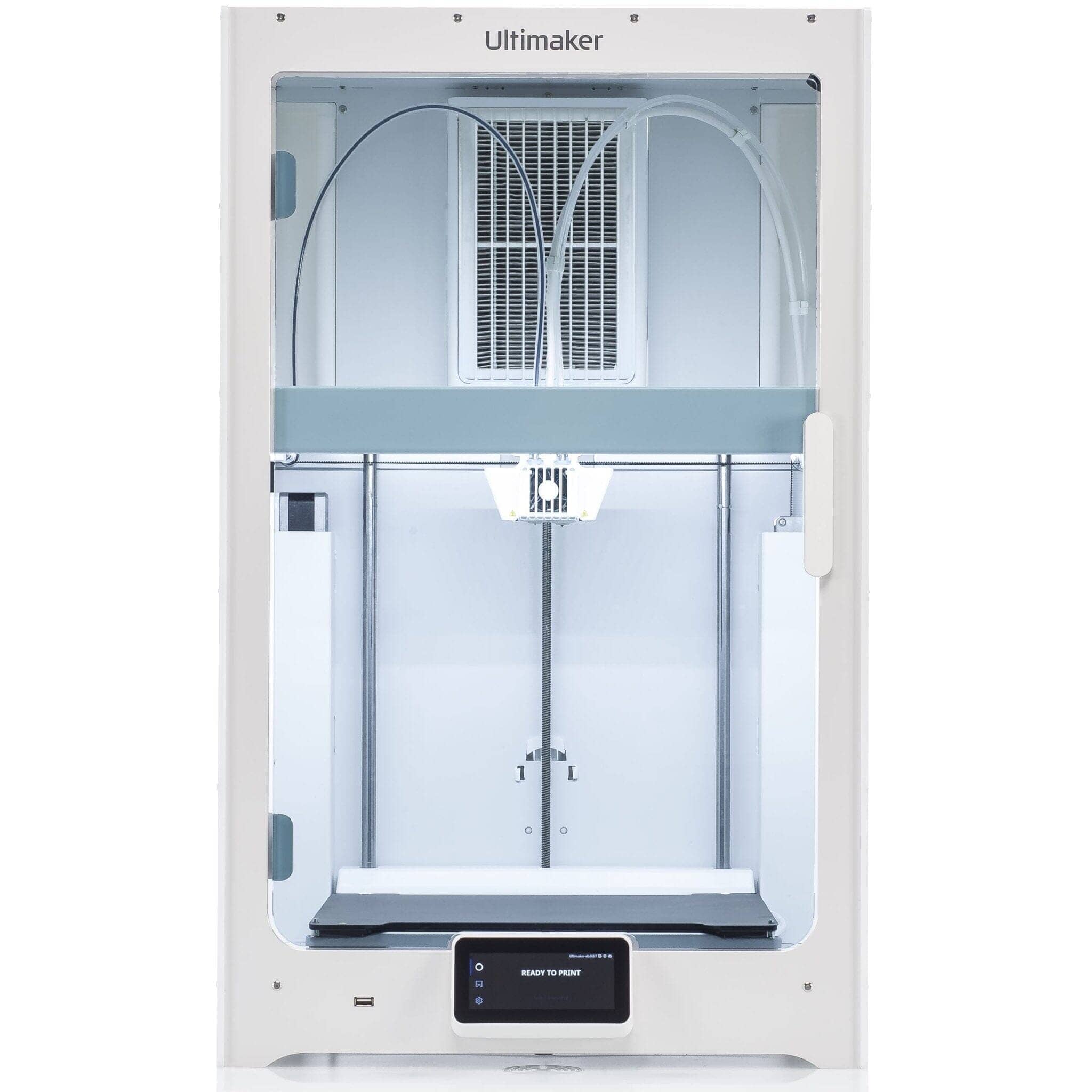

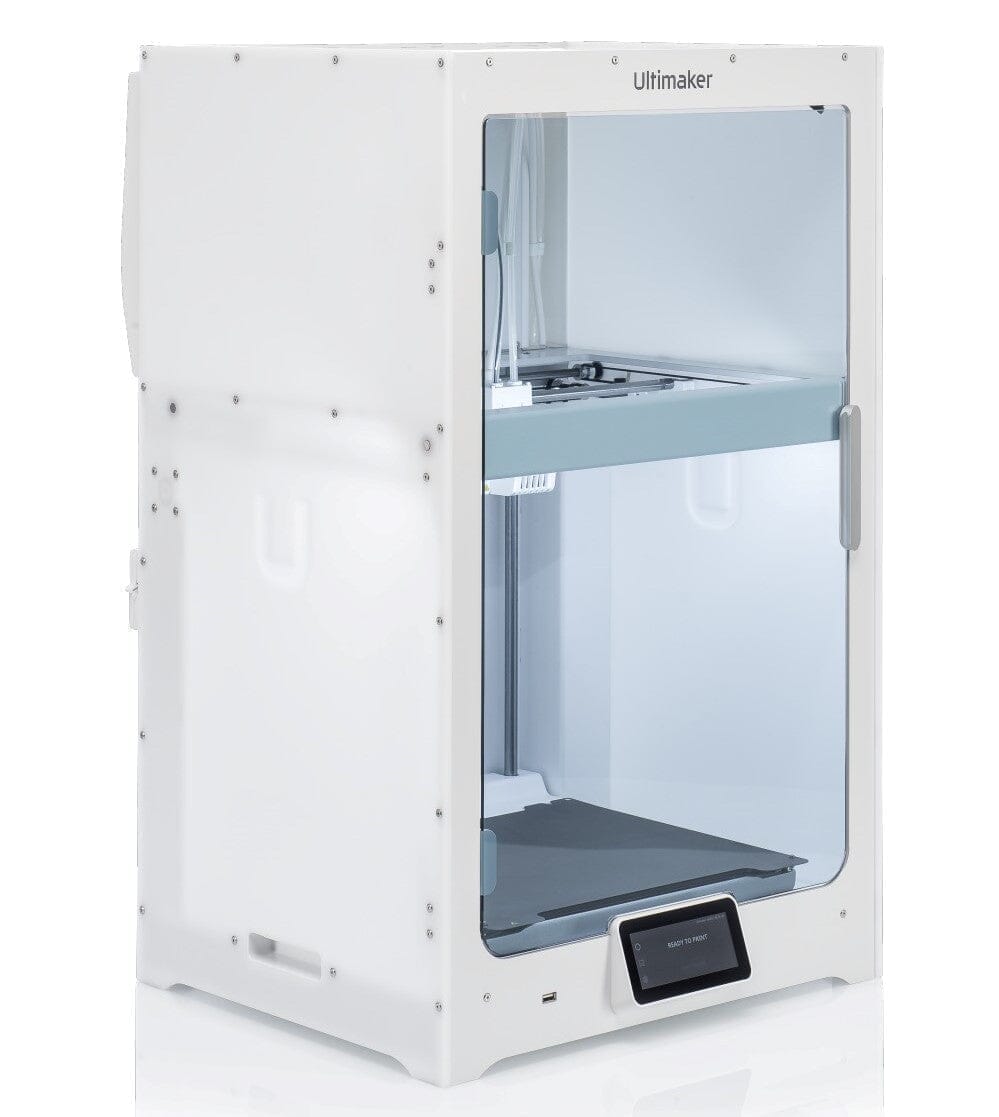

The S7 is the latest flagship model from UltiMaker improving on all that made the S5 successful, now with an integrated Air Manager, an upgraded print head, an enhanced build stack with a flexible build plate, and improved insulation for the most reliable 3D printing experience to date. Add the Material Station to make an S7 Pro Bundle and take professional 3D printing productivity to the next level.



Highlights:

  • Large build volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)

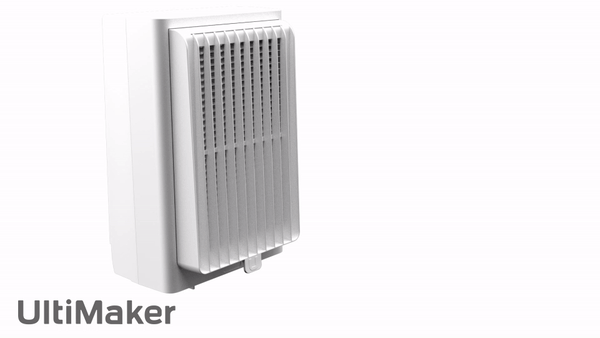

  • Integrated Air Manager
  • PEI coated flexible Build Plate
  • 1080p HD Camera
  • Down to 20 micron (0.001 inch) layer resolution
  • Open filament system – print with any 2.85 mm material
  • 4.7-inch award-winning touchscreen interface



Compatible Materials

  • General Purpose Materials: PLA, Tough PLA, PETG
  • Engineering Materials: ABS, Nylon, TPU 95A, PC, PP, CPE, CPE+
  • Composite Materials: PET-CF
  •  Support Materials: PVA, Breakaway
  •  Third-party materials are also compatible.
Configuration: S7
  • S7

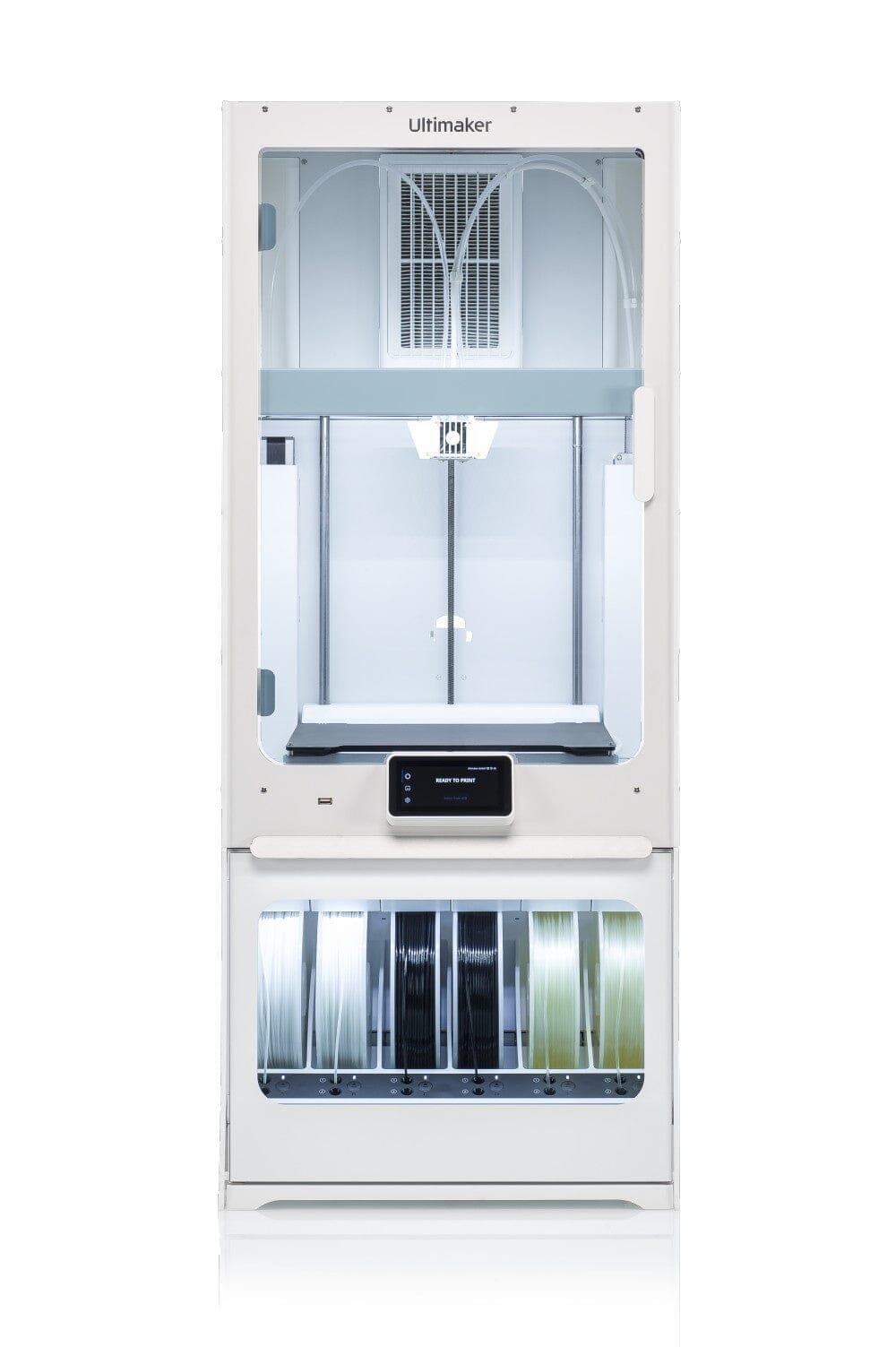

  • S7 Pro Bundle
Ultimaker S7 Technical Specifications

Ultimaker S7 Technical Specifications

Printer Properties
Build Volume 330 x 240 x 300 mm (13 x 9.4 x 11.8 in)
XYZ Resolution 6.9, 6.9, 2.5 micron
Build Speed ≤ 24 mm³/s
Build Plate Heated glass build plate (20 - 140 °C)
Build Plate Leveling Active leveling with capacitive technology
Operating Sound < 50 dBA
Power Output 500 W
Data Transfer Wi-Fi, Ethernet, USB
Dimensions 495 x 500 x 1197 mm (19.5 x 19.7 x 47.1 in)
Weight 43.8 kg (96.6 lbs)
Material & Printing
Print Technology Fused filament fabrication (FFF)

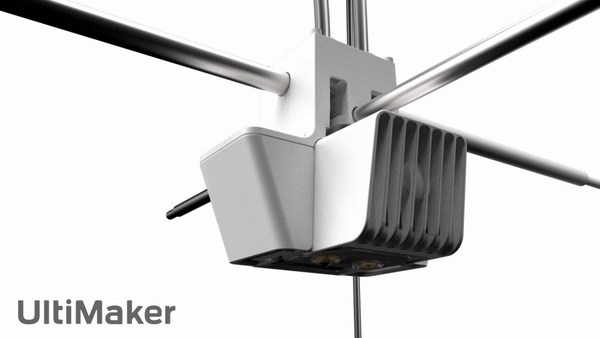

Print Head Dual extrusion print head with auto-nozzle lifting system and swappable print cores
Filament Diameter 2.85 mm
Compatible Materials • PLA, Tough PLA, PETG, ABS
• TPU 95A, PC, PP, CPE, CPE+
• PVA, Breakaway (support materials)
• Third-party materials supported
• Metal-filled, Carbon-filled, Glass-filled composites
Nozzle Diameter • 0.4 mm (included)
• 0.25, 0.6, 0.8 mm (sold separately)
Nozzle Temperature 180 - 280 °C (356 - 536 °F)
Heated Build Chamber Yes, up to 65 °C (149 °F) with Air Manager
Layer Resolution • 0.25 mm nozzle: 150 - 60 micron
• 0.4 mm nozzle: 200 - 20 micron
• 0.6 mm nozzle: 300 - 20 micron
• 0.8 mm nozzle: 600 - 20 micron
Material Flow Sensor Yes - filament flow monitoring
Material Station Compatibility Yes - supports 6 materials with humidity control
Software & Features
Display 4.7-inch touchscreen
Operating Software Ultimaker firmware
Supported Software Ultimaker Cura, Ultimaker Digital Factory, Ultimaker Connect
Supported File Types STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG
Supported OS Windows, Mac, Linux
Connectivity Wi-Fi, Ethernet, USB
Monitoring Built-in camera for remote monitoring
Air Filtration Optional Air Manager with EPA filter (95% of UFPs filtered)
Security Features • User authentication
• HTTPS & secure data communication
• Data encryption at rest
• Two-factor authentication
• Regular firmware security updates
Advanced Features
Active Build Environment Heated build plate and heated build chamber with constant temperature control
Material Recognition NFC technology for automatic material recognition
Print Core Recognition Automatic print core identification and configuration
Manufacturing Integration OPC UA compatibility for Industry 4.0 integration
API Access Open API for software integration and customization
Enterprise Features • Group printer management
• Print job queuing
• Remote monitoring and analytics
• User management and access control
Warranty & Certification
Warranty 12 months included warranty
Extended Warranty Extended warranty plans available
Certifications CE, FCC, RoHS, WEEE, REACH
Technical Support Lifetime support through Ultimaker certified partners
