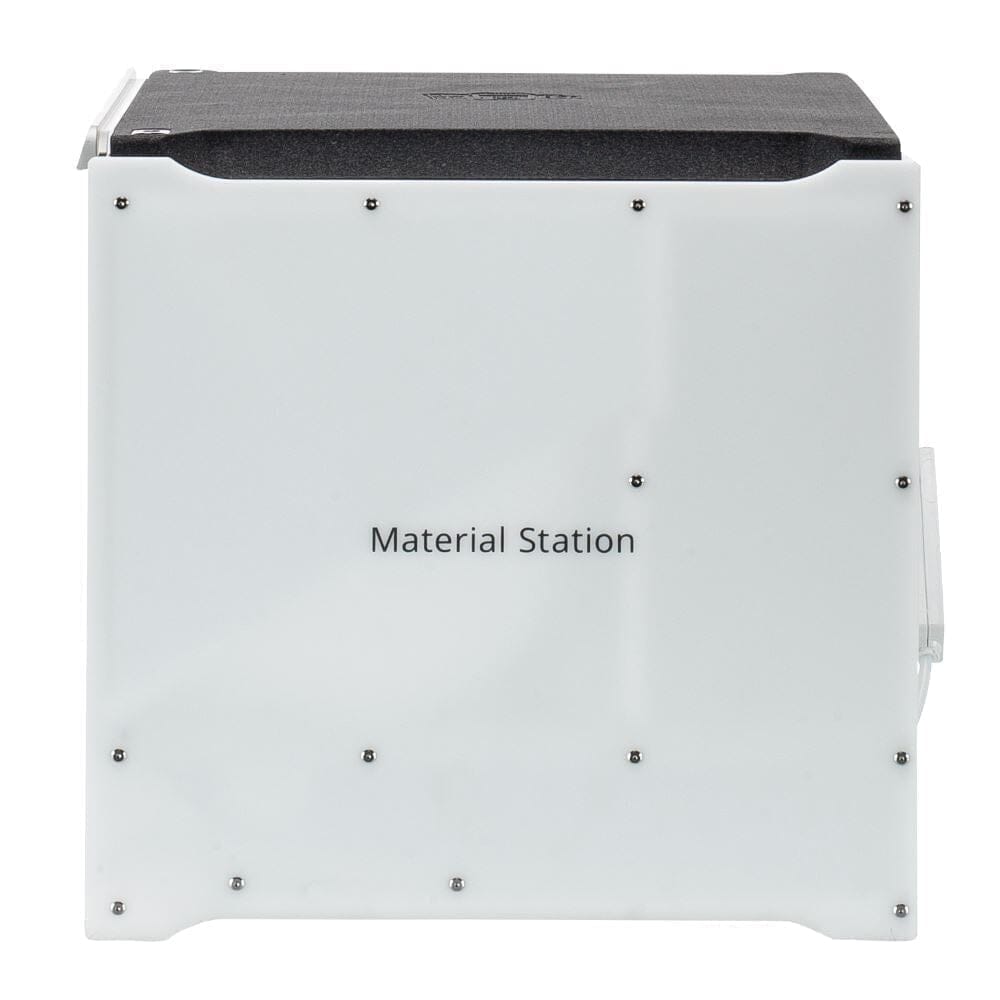

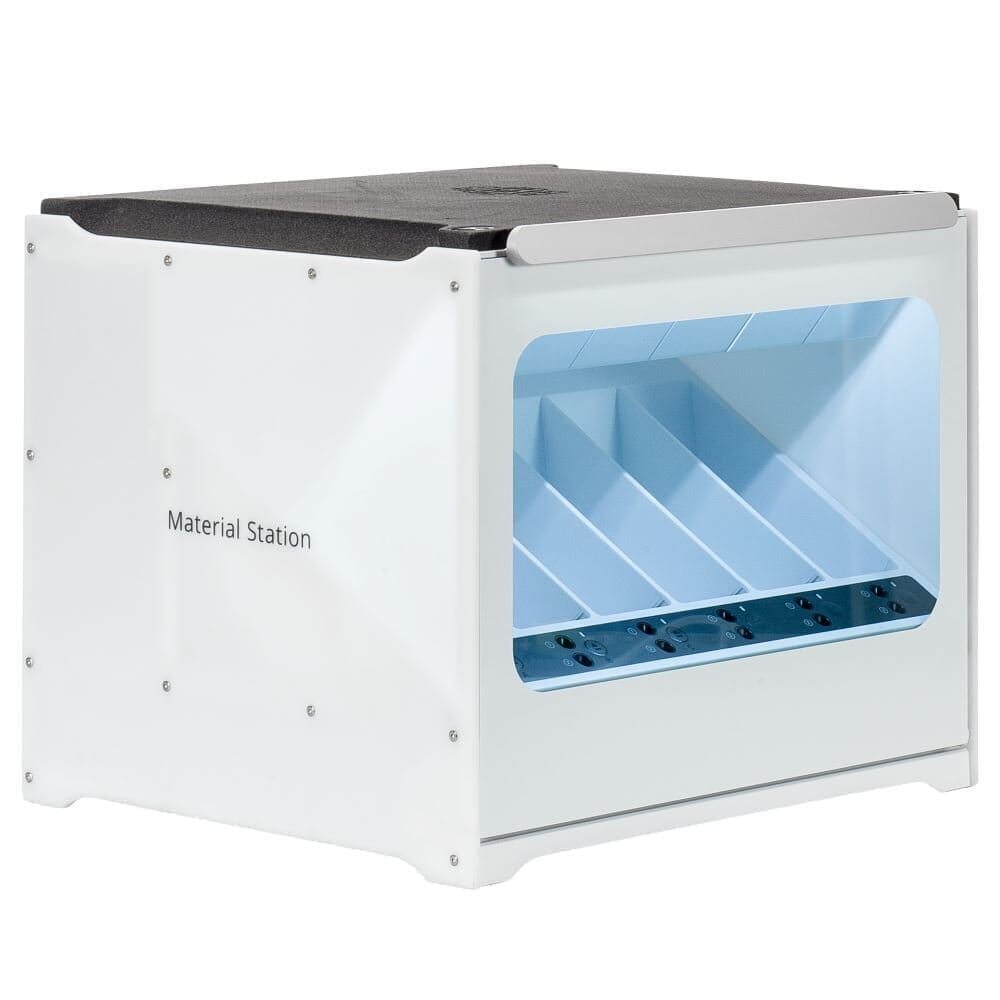

Material Station

$3,988.95
Save {}Sold out

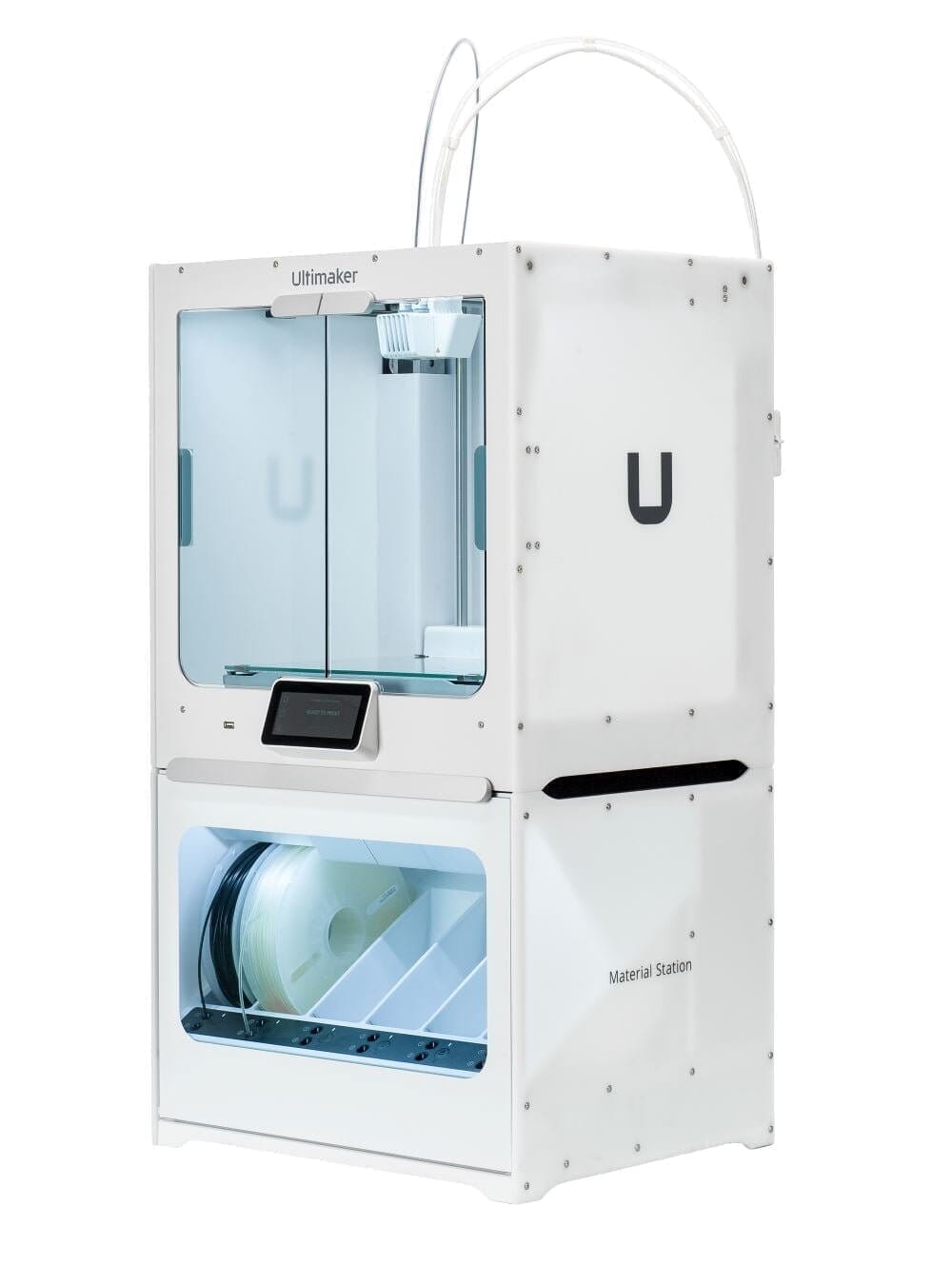

Seamlessly integrating with the Ultimaker S5 and the new Ultimaker S7, the Material Station redefines material handling. Front-load filament spools in seconds inside the humidity-controlled chamber and smart features take care of the rest – composite-ready feeder wheels, filament flow sensors, and automatic switching when a material runs out. Enable optimal material storage conditions and achieve increased productivity and higher-quality production.

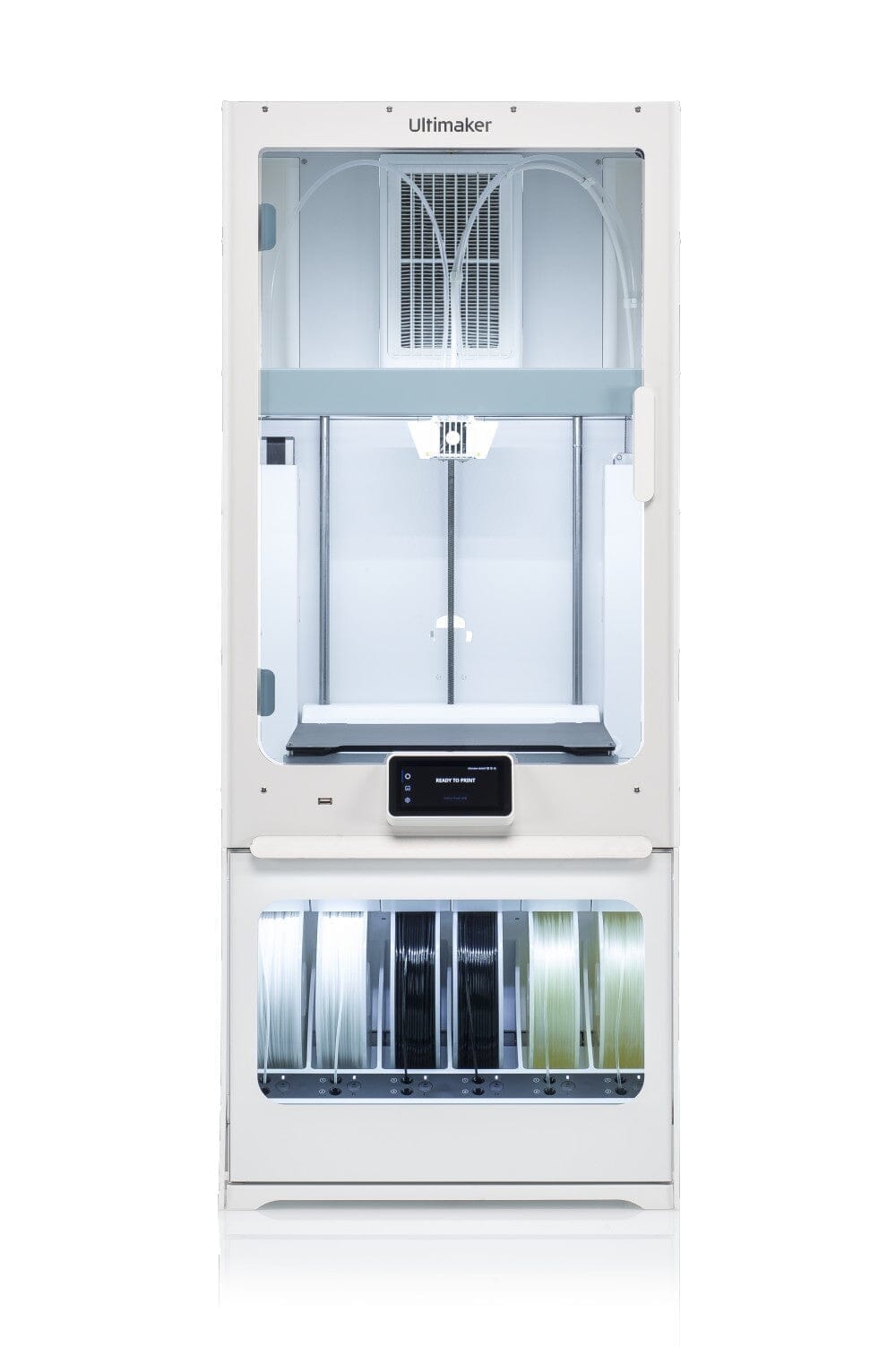

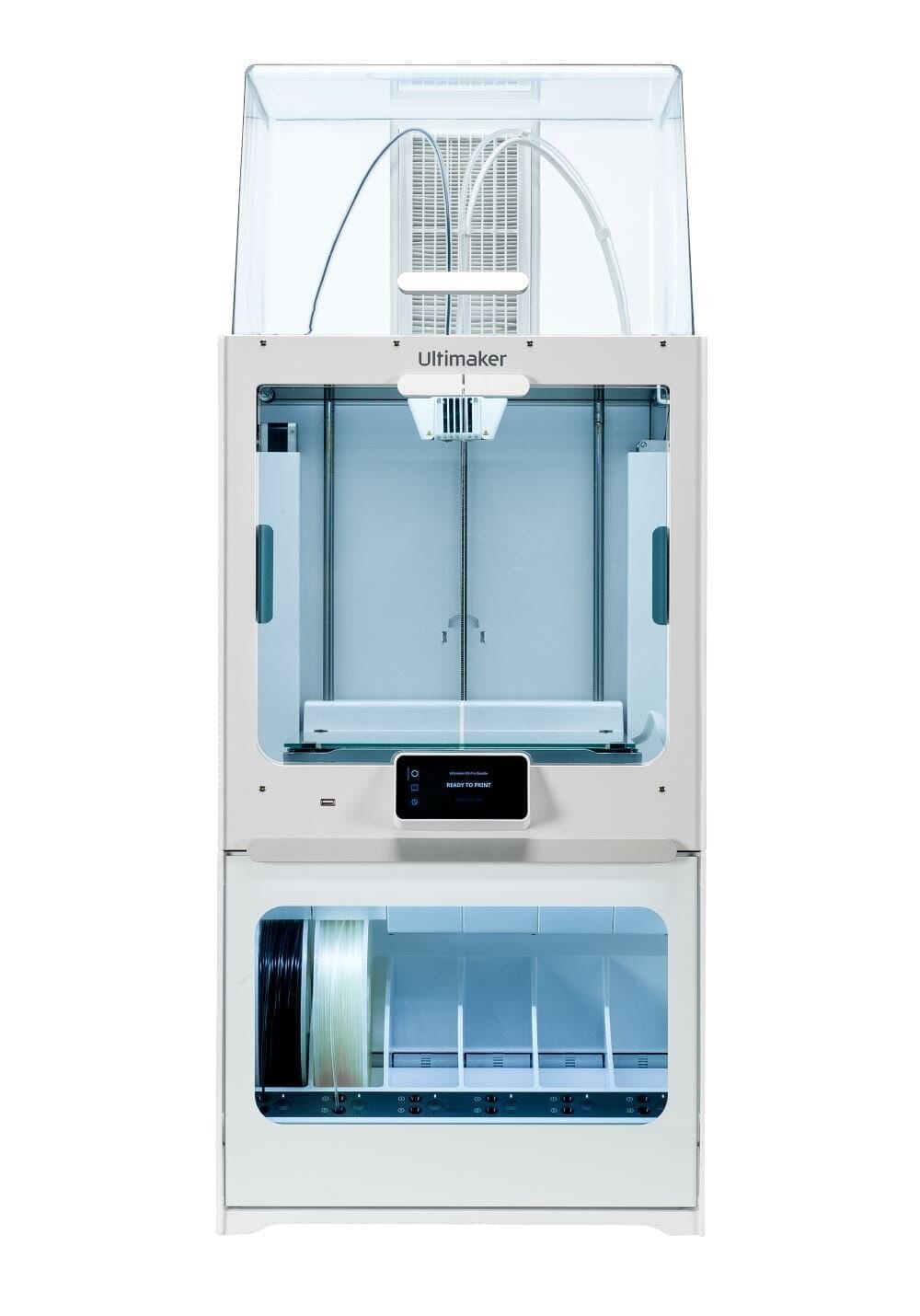

The Material Station and Air Manager empower the Ultimaker S5 and S7 to deliver high-quality 3D printed parts and models at maximum output. Combined, you get the Ultimaker S5 Pro Bundle or S7 Pro Bundle's huge capacity and end-to-end material handling increasing print success rate and uptime to 24/7 reliable production – while minimizing human error, print job time, and operator time.

SKU: 218053
Request for Quote

Product Features

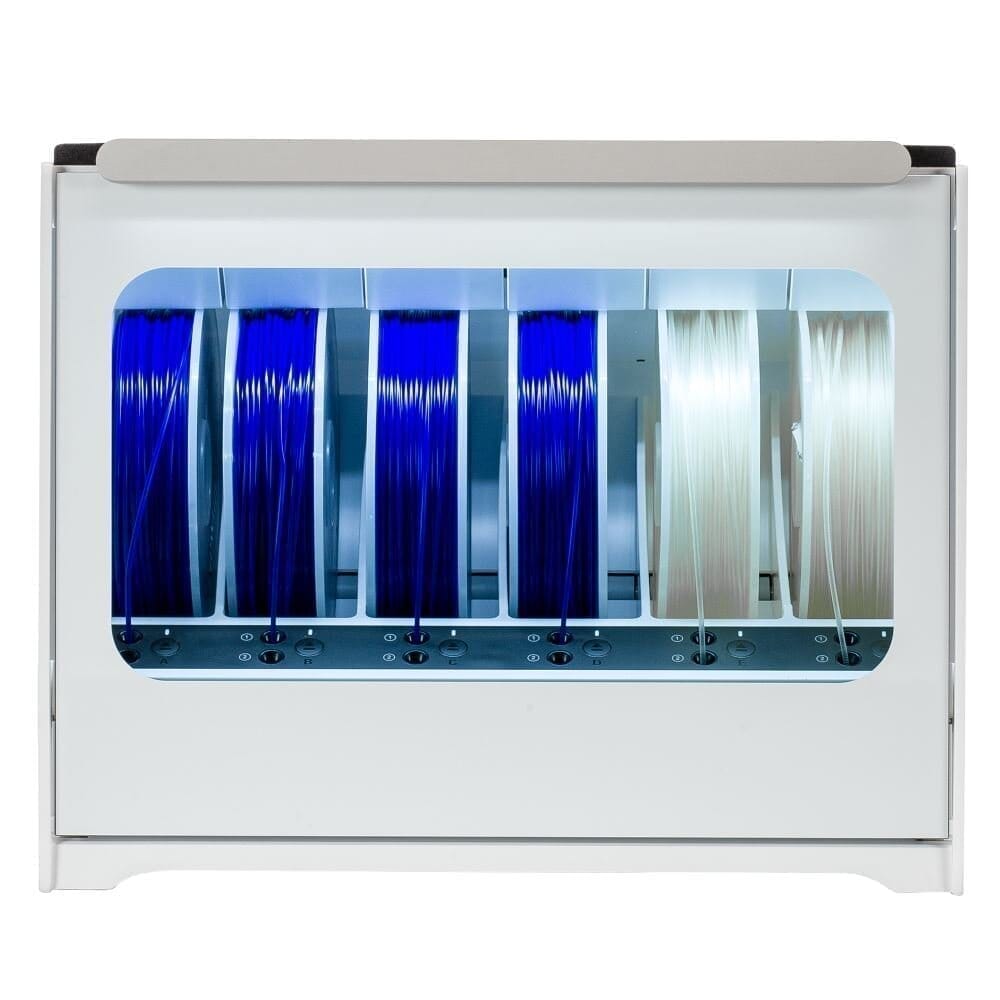

Fast and easy loading: Front-facing bay for up to six materials reduces loading time to a few seconds

Uninterrupted printing: Sensors detect when one material spool ends and automatically loads the next

Humidity control: Intelligent atmospheric management keeps relative humidity below 40%

Fully integrated into Ultimaker's software tools: You stay informed and 100% focused on doing your best work
MS8
Easy setup and monitoring: NFC material auto-recognition and seamless integration with Ultimaker software

Composite materials compatible: Print parts with high strength and unique properties

Limitless configurations: Keep your most-used materials ready to print when you need – Ultimaker and third-party filaments

Technical Specifications

Dimensions

Properties

Compatibility

Service and Support

Dimensions

Dimensions
491 x 438 x 400 mm (19.3 x 17.2 x 15.7 in)

Net weight
17.7 kg (39 lbs)

Filament diameter
2.85 mm

Material spool dimensions
Width: 50 - 70 mm (2 - 2.7 in)
Diameter: 197 - 203 mm (7.8 – 8 in)
Core diameter: > 98 mm (3.8 in)

Material capacity
6 spools
S5MS1

Properties

Material recognition
Auto-recognition enabled with NFC scanner

Feeder type
Dual-geared, abrasion-resistant

Power input
85 - 264VAC, max. 125 W

Power output
Max. 10A (for Ultimaker S5)
MS6

Compatibility

Data connection
UMB connection (included)

Compatible 3D Printers
Ultimaker S5 and Ultimaker S7 3D Printers

Compatible Materials
Optimized for Ultimaker PLA, Tough PLA, ABS, Nylon, CPE, CPE+, PC, PP,
TPU 95A, PVA, Breakaway (Also supports third-party materials)

S5 Air Manager
EPA filter removes up to 95%
of UFPs
UMS7-SS_1

Service and Support

Warranty Period
12 months

Expert Support
Market-leading tech support via email, phone, or from our global community is available to you in your language and timezone

Extended Support
Online resources, extensive manuals, material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more
MS5

Product Video

Watch the introduction video for the UltiMaker S5 Pro Bundle:
