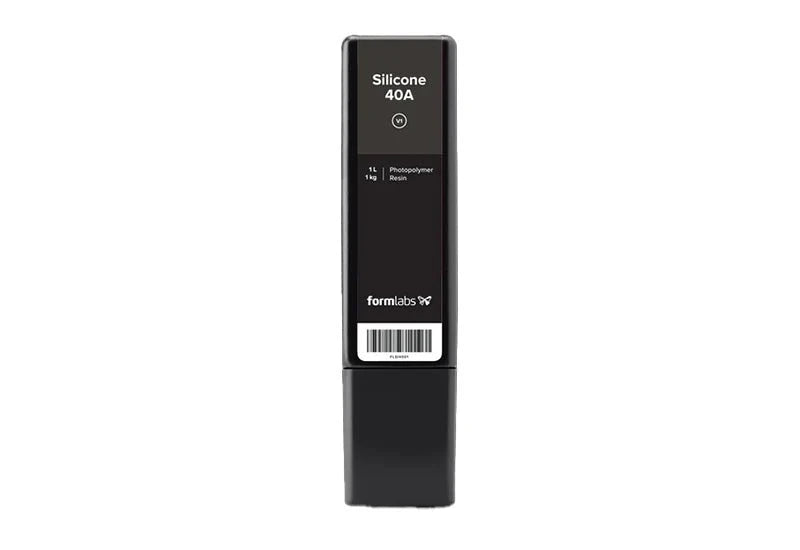

Silicone 40A Resin (Form 3)

$349.00
Save {}Sold out

Introducing Silicone 40A Resin, the first accessible 100% silicone 3D printing resin. Eliminate molding and labor-intensive casting processes: Silicone 40A Resin uses Formlabs’ patent-pending Pure Silicone Technology  to 3D print pure silicone parts in-house, in a matter of hours.

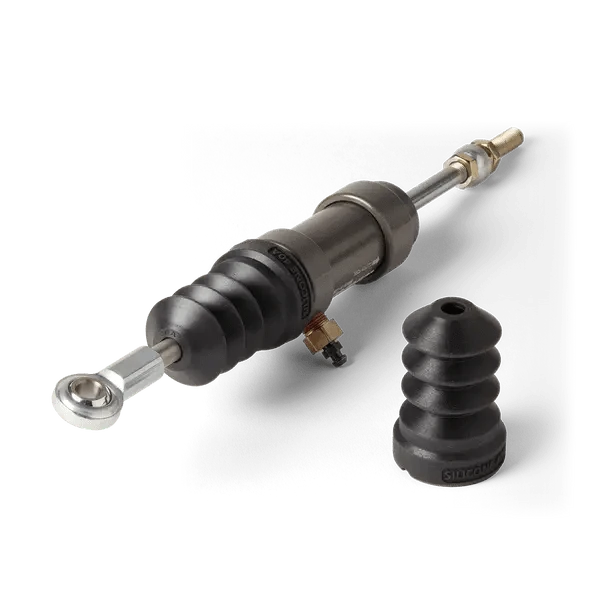

With this 40A Shore durometer material, you can fabricate soft, pliable, and durable parts with a 230% elongation at break and a 12 kN/m tear strength that can withstand repeated cycles of stretching, flexing, and compression. Combine the high performance of silicone and the design freedom of 3D printing to create highly functional silicone parts with excellent chemical and thermal resistance (-25°C to 125°C), fine features as small as 0.3 mm, and complex geometries that are not possible with traditional methods.

    Size:
    • 1 L
    • 5 L
    SKU: RS-F2-SI40-01
    14 Day Lead Time

    Big Parts, Blazing Fast

    Large prints in under 6 hours, 4.6x larger build volume than Form 4.
    F4L_front_open_light_core_v5_Ik_240905
    Optimized_For_Web_JPEG-Formlabs_2024_Form_4L_and_Form_4BL_Media_018

    BLAZING SPEED MEETS INDUSTRIAL PRODUCTION

    Get More Done with most Prints in under 2 hours.
    Optimized_For_Web_JPEG-09232024_F4L_Lawr_Loc_0264-edit

    TACKLE ANY PROBLEM

    WITH OUR INDUSTRY-LEADING
    RESINS AND OPEN PLATFORM.

    Leverage high-performance materials
    optimized for impact resistance, rigidity,
    flame retardancy, flexibility, and more.
    Non-acrylate chemistries like true silicone,
    ceramic, and polyurethane materials.
    Certified third-party materials and open
    mode available.
    Option to customize print performance for
    your exact part using editable and
    shareable print settings.

    STUNNING PARTS

    THAT ALWAYS FIT WITH A SURFACE FINISH THAT RIVALS INJECTION MOLDING.

    Sharpest details: highly collimated light with
    pre-tuned anti-aliasing for subpixel resolution.

    Smoothest surfaces: lower peel forces and
    light touch supports.

    Most accurate assemblies:
    ±0.15% XY dimensional tolerances so
    assemblies always fit.
    Optimized_For_Web_JPEG-09232024_F4L_Lawr_Loc_0474-edit_ec2201de-4a34-4fbf-bd8c-477782fcffe8
    Optimized_For_Web_JPEG-09232024_F4L_Lawr_Loc_0474-edit_ec2201de-4a34-4fbf-bd8c-477782fcffe8

    UNMATCHED RELIABILITY

    STOP COMING BACK
    TO FAILED PRINTS.

    Validated Print Settings
    Intelligent Control Systems
    Re-Engineered, Long-Lasting Consumables
    Factory Calibration
    Remote Monitoring

    PRINTERS THAT JUST WORK

    So intuitive that anyone can learn to print in 15 minutes.
    Optimized_For_Web_JPEG-09112024_F4L_core_set_1314_edit_SPLASH

    Tech Specs

    Form 4
    Form 4L
    Technology - Low Force Display
    Build Volume: 20.0 x 12.5 x 21.0 cm | 7.9 x 4.9 x 8.3 in
    Build Volume: 35.3 x 19.6 x 35.0 cm | 13.9 x 7.7 x 13.8 in
    Layer Thickness (Z Resolution) 25 - 300 Microns
    25- 200 µm | 0.001–0.008 in
    XY Resolution: 50 Microns
    46 Microns
    Maximum Print Speed 100 mm /h
    80mm/h
    Printer Weight: 18.3 kg | 40.4lb
    58.5 kg | 129 lb
    Printer Dimensions: 39.8x 36.7 x 55.4cm | 15.7 x 14.5 x 21.9 in
    66.4 x 52.8 x 79.4 cm | 26.1 x 20.8 x 31.3 in
    One Year Warranty Included , Paid service and extended Warranty Options Available
    Software Compatiblity: Windows 7 and up | Mac OSX 10.12 and Up
    File Types accepted: STL, OBJ, 3MF
