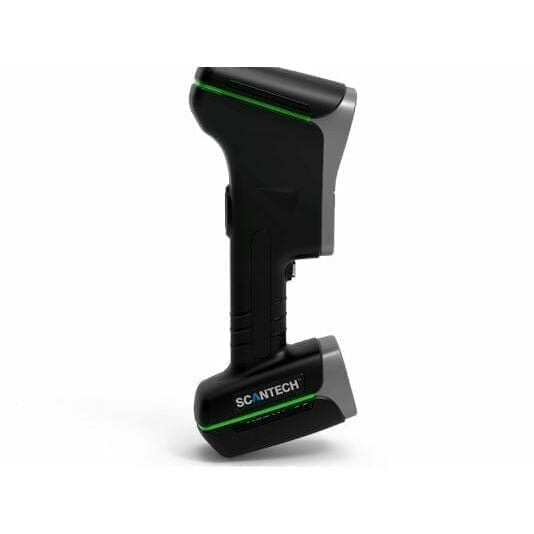

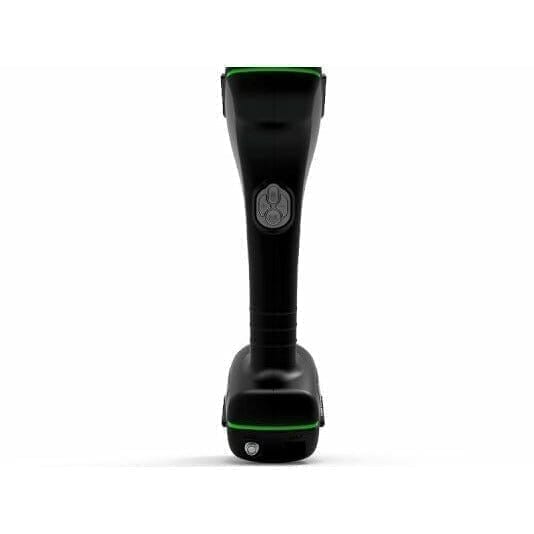

Product Features

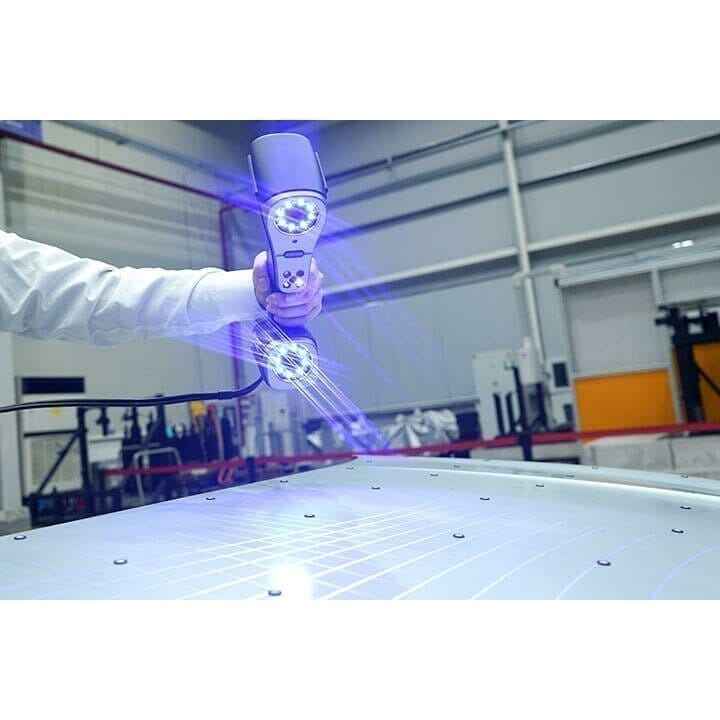

Innovative Infrared Laser
KSCAN-Magic series innovatively adopts infrared laser scanning technology worldwide. Its ultimate scanning area reaches 1440 mm x 860 mm, achieving precise wide range measurement with ease.

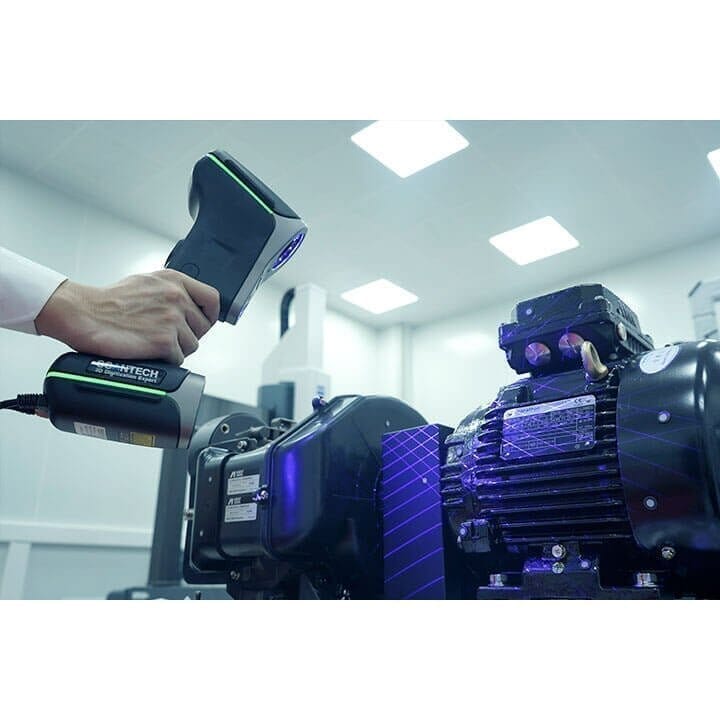

Effortless Efficiency
KSCAN-Magic series 3D scanner delivers ultra-fast scanning rate, enable a faster workflow from the set-up to the scan. By flexibly switching the scanning modes, it satisfies different application needs, dramatically improving working efficiency.
Extreme-Clear Details

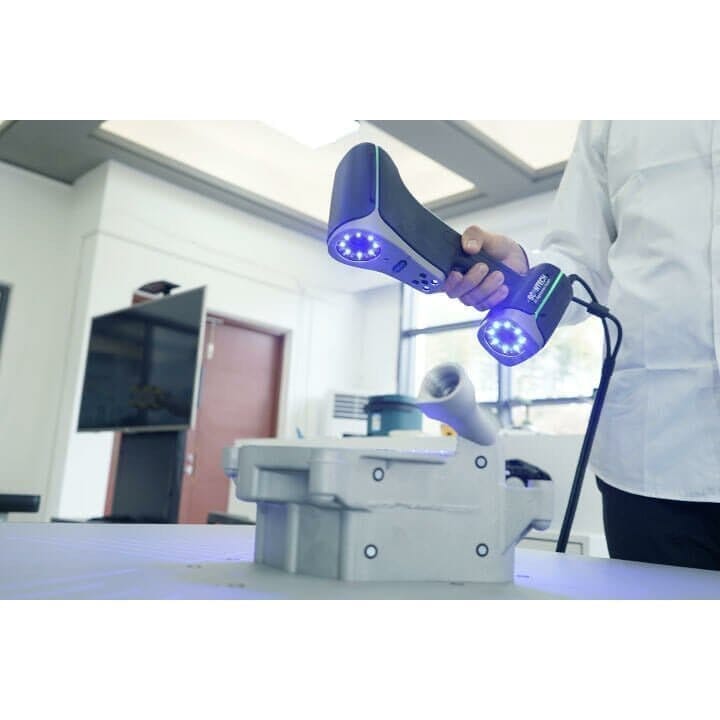

Under hyperfine scanning mode, KSCAN-Magic series 3D laser scanner can accurately obtain complete data on the surface of complex objects, easily capturing every detail with resolution of 0.010 mm.
KSCAN-Magic series innovatively adopts infrared laser scanning technology worldwide. Its ultimate scanning area reaches 1440 mm x 860 mm, achieving precise wide range measurement with ease.
Effortless Efficiency
KSCAN-Magic series 3D scanner delivers ultra-fast scanning rate, enable a faster workflow from the set-up to the scan. By flexibly switching the scanning modes, it satisfies different application needs, dramatically improving working efficiency.
Extreme-Clear Details
Under hyperfine scanning mode, KSCAN-Magic series 3D laser scanner can accurately obtain complete data on the surface of complex objects, easily capturing every detail with resolution of 0.010 mm.
Single Laser Line Scanning
Single laser line scanning mode accurately and quickly captures 3D data of deep holes and dead angle positions.
Metrology-grade NDT Measuring
0.020 mm of scanning accuracy and 0.03 mm/m of volume accuracy, deliver ultra-high precision NDT for the aerospace industry.
Single laser line scanning mode accurately and quickly captures 3D data of deep holes and dead angle positions.
Metrology-grade NDT Measuring
0.020 mm of scanning accuracy and 0.03 mm/m of volume accuracy, deliver ultra-high precision NDT for the aerospace industry.
Technical Specifications
Applications
Technical Specifications
Scan Mode:
Ultra-fast scanning (11 blue laser crosses)
Hyperfine scanning (7 blue parallel laser lines)
Large area scanning (11 parallel infrared laser lines)
Deep hole scanning (1 extra blue laser line)
Laser lines in total: up to 45
Scanning rate: Up to 1,650,000 measurements/s
Scanning area: Up to 1440 mm x 860 mm
Laser class: CLASS Ⅱ (eye-safe)
Resolution: Up to 0.010 mm
Volumetric Accuracy (without extra device) accuracy: 0.015 mm + 0.030 mm/m
Volumetric accuracy (with MSCAN): 0.015 mm + 0.015 mm/m
Stand-off distance: 300 mm
Depth of field: 925 mm
Output formats: .stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Operating temperature range: -10~40°C
Interface mode: USB 3.0
Patents: CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1,US10914576B2, EP3392831A4
Scan Mode:
Ultra-fast scanning (11 blue laser crosses)
Hyperfine scanning (7 blue parallel laser lines)
Large area scanning (11 parallel infrared laser lines)
Deep hole scanning (1 extra blue laser line)
Laser lines in total: up to 45
Scanning rate: Up to 1,650,000 measurements/s
Scanning area: Up to 1440 mm x 860 mm
Laser class: CLASS Ⅱ (eye-safe)
Resolution: Up to 0.010 mm
Volumetric Accuracy (without extra device) accuracy: 0.015 mm + 0.030 mm/m
Volumetric accuracy (with MSCAN): 0.015 mm + 0.015 mm/m
Stand-off distance: 300 mm
Depth of field: 925 mm
Output formats: .stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Operating temperature range: -10~40°C
Interface mode: USB 3.0
Patents: CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1,US10914576B2, EP3392831A4
Aerospace: ScanTech delivers reliable 3D digitalization and NDT solutions for manufacturers in the aerospace industry, bringing disruptive improvements to the manufacturing field.
Automotive: 3D scanning technology realizes lower development cost, distinctive design, and strict quality control for automakers to explore more valuable potential market.
Manufacturing: 3D scanning provides competitive advantages to manufacturers and widely applies to each industry of value chain in machinery manufacture.
Mold: High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.
Energy: ScanTech 3D scanners carry a big weight in overcoming challenges for energy industry for 3D Measurement, 3D Scanner, 3D Scanning&3D Digital Solutions accelerate progress of R&D and strictly control product quality.
VR Showcase: 3D scanning provides great convenience in Virtual display such as VR decoration, VR game, etc.
Entertainment: Enabling gaming, 3D movie studios to satisfy the creative imaginings more efficiently than ever before.
Automotive: 3D scanning technology realizes lower development cost, distinctive design, and strict quality control for automakers to explore more valuable potential market.
Manufacturing: 3D scanning provides competitive advantages to manufacturers and widely applies to each industry of value chain in machinery manufacture.
Mold: High-precision 3D scanning brings mold manufacturers great convenience and satisfactory efficiency in product development and prolonging product life cycle.
Energy: ScanTech 3D scanners carry a big weight in overcoming challenges for energy industry for 3D Measurement, 3D Scanner, 3D Scanning&3D Digital Solutions accelerate progress of R&D and strictly control product quality.
VR Showcase: 3D scanning provides great convenience in Virtual display such as VR decoration, VR game, etc.
Entertainment: Enabling gaming, 3D movie studios to satisfy the creative imaginings more efficiently than ever before.
