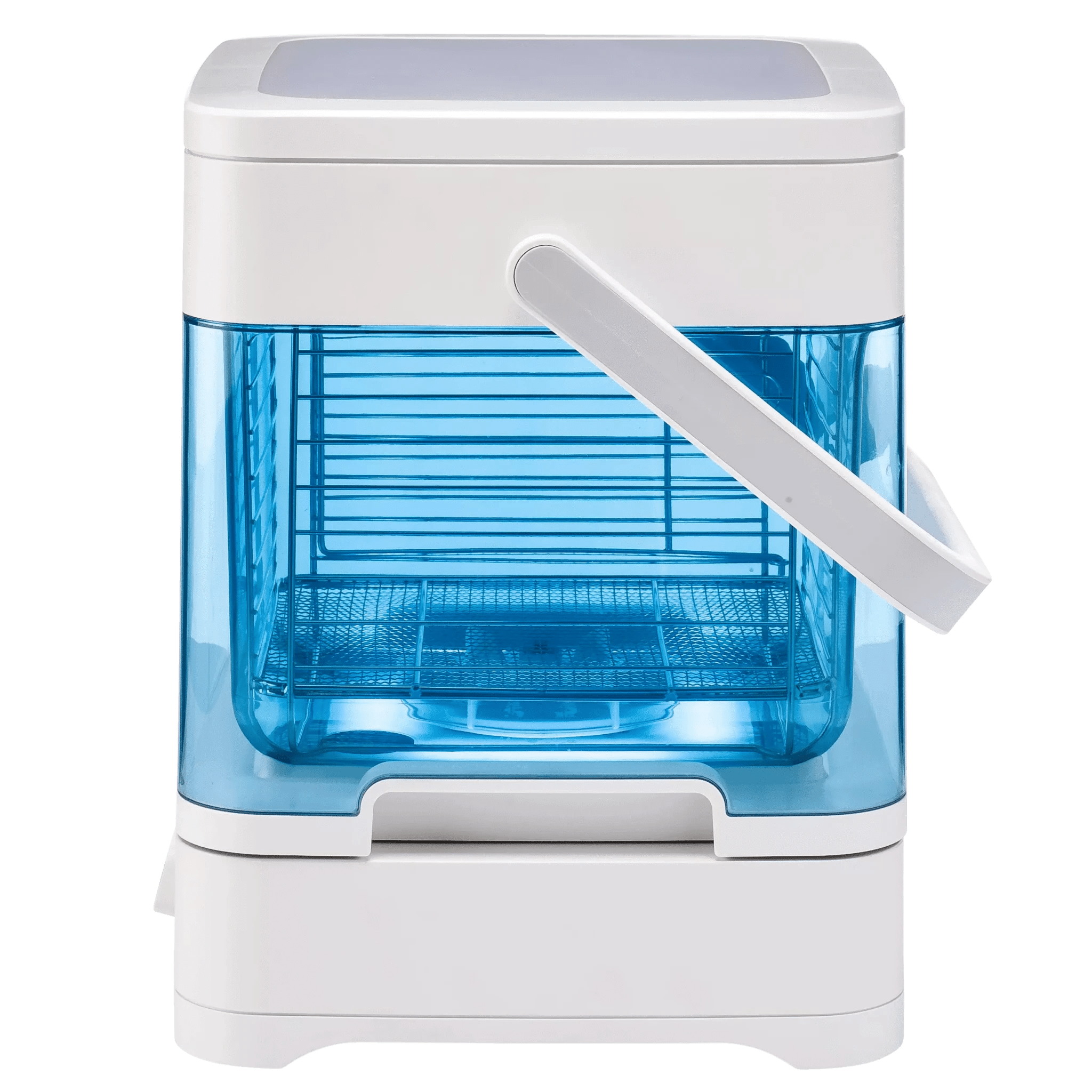

PVA Removal Station

$1,149.75
Save {}Sold out

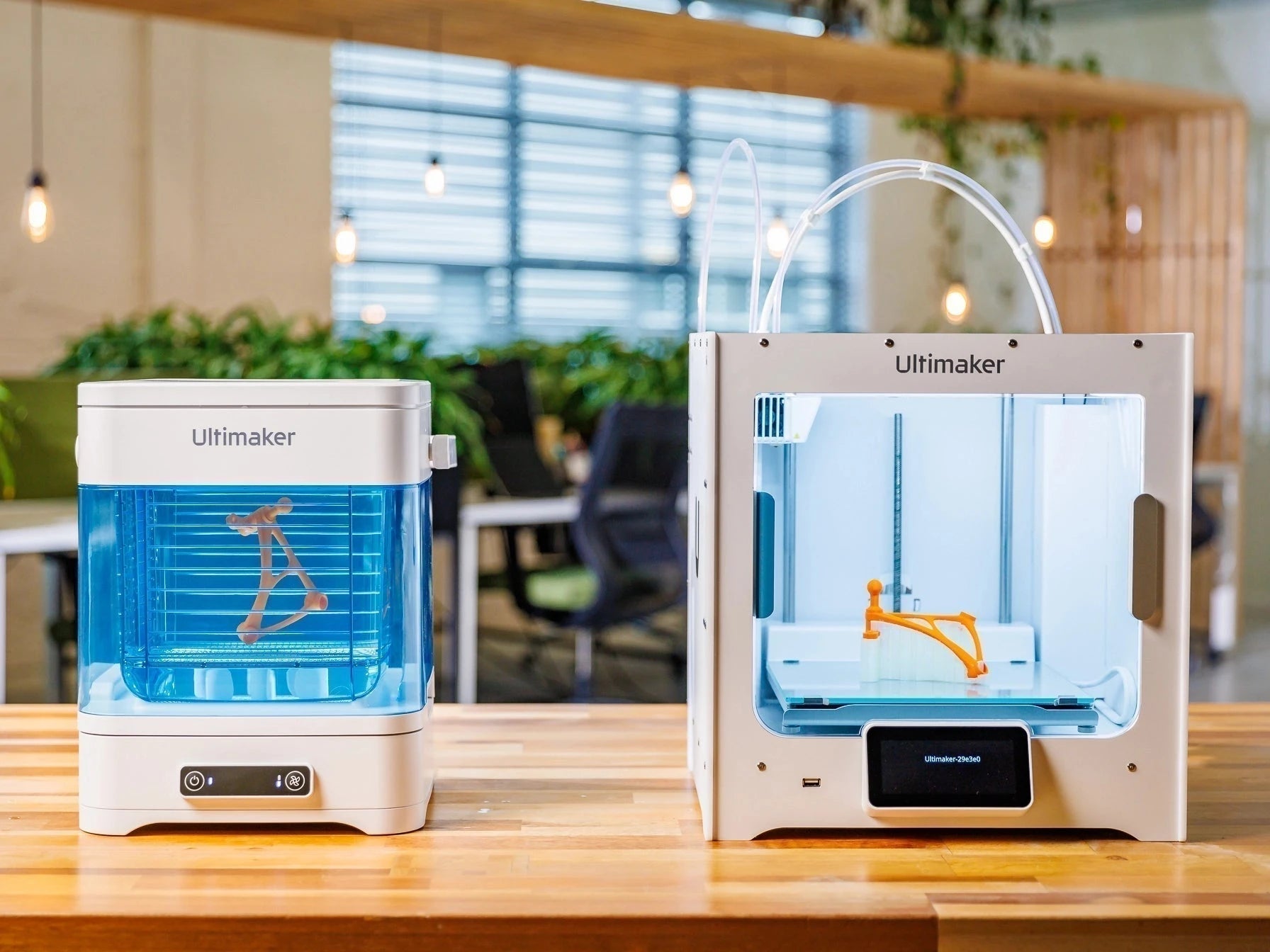

The Ultimaker PVA Removal Station enables you to experience quicker and easier post-processing when using PVA support material for complex parts or stunning visual prototypes. Part of UltiMaker's start-to-finish 3D printing platform, the Ultimaker PVA Removal Station ensures quicker design iterations with minimal operator time and no mess.



This new product from UltiMaker features a high-speed dissolving process driven by a magnetic rotor. Compared with motionless water in an improvised container, it removes PVA up to four times faster – even from hard-to-reach cavities in complex designs, providing you parts that are ready much sooner.

SKU: 220999

Product Features

Rotor-powered circulation: A magnetic rotor circulates water to reach all parts of your 3D print

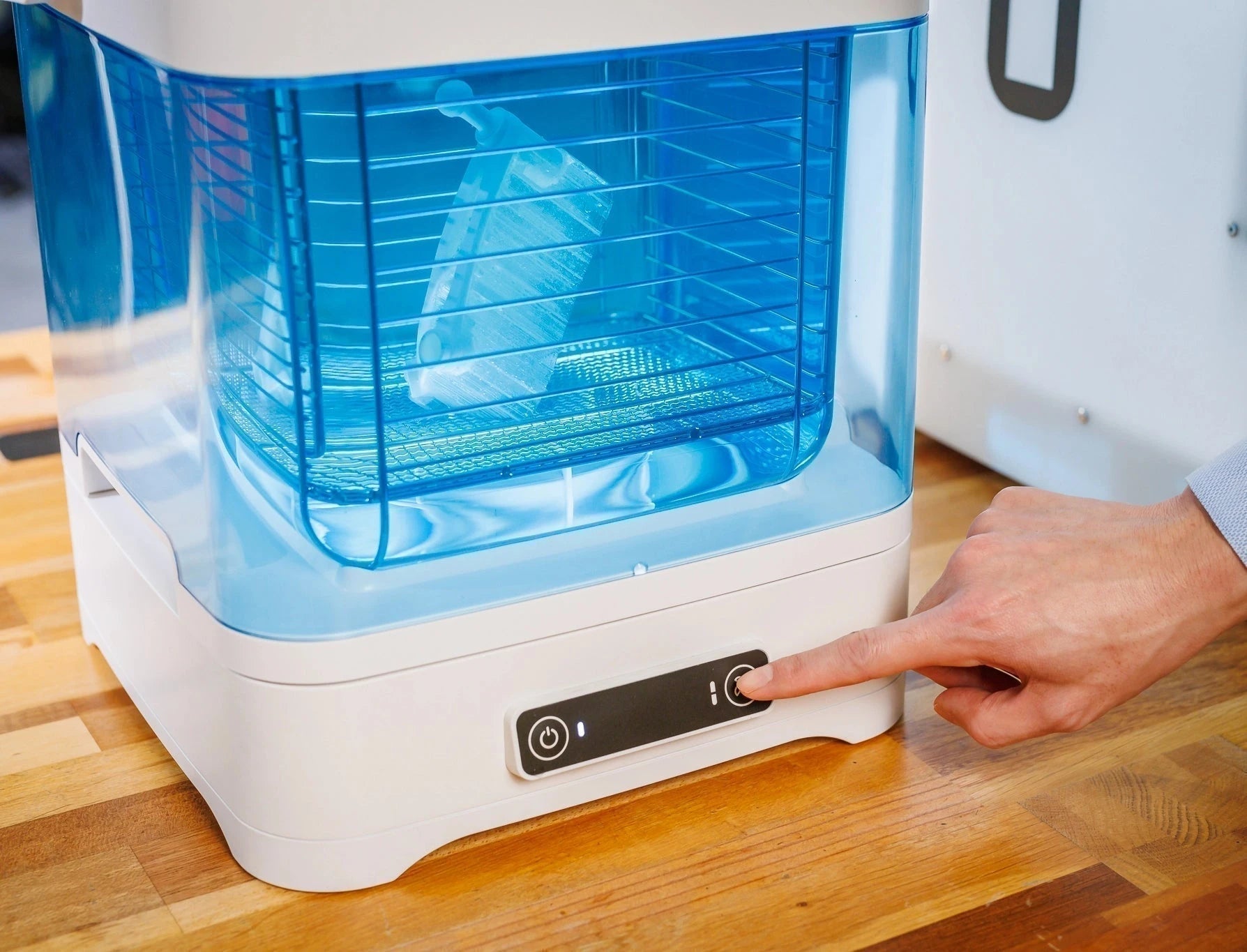

Adjustable rotor speed: Adjust for faster dissolving or to protect fragile parts

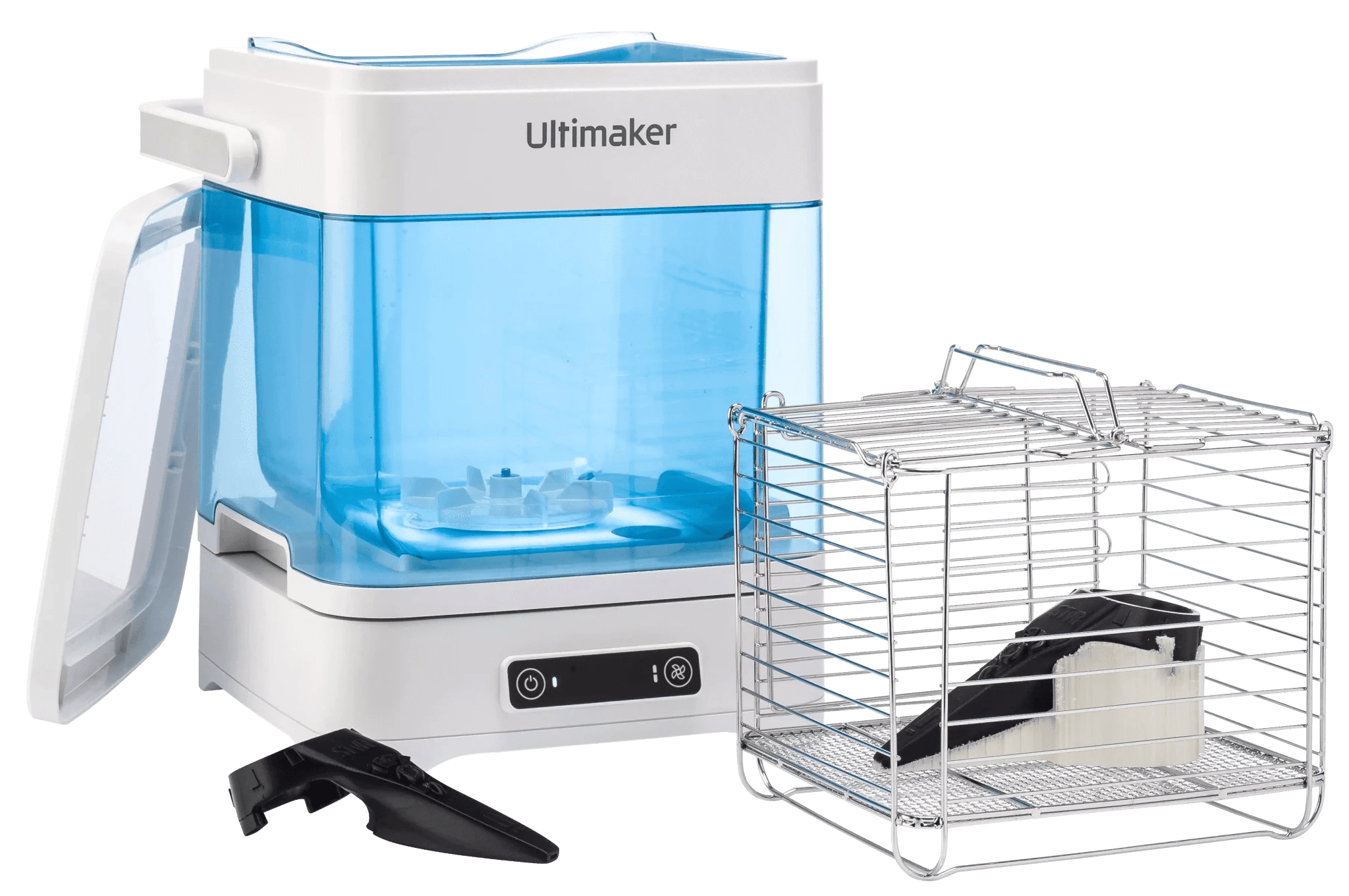

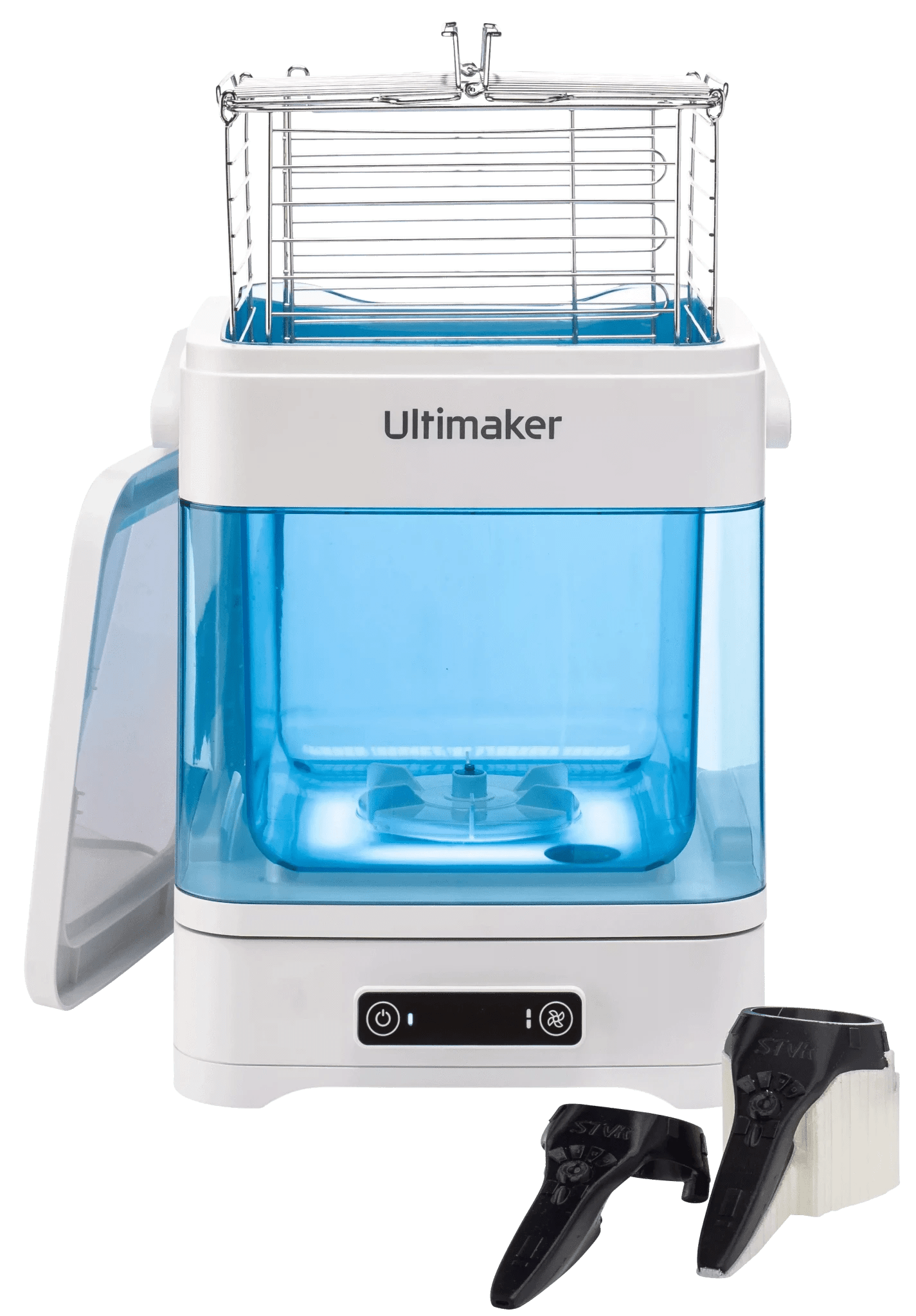

Keeps prints secured: A rinsing basket keeps prints in place and submerged

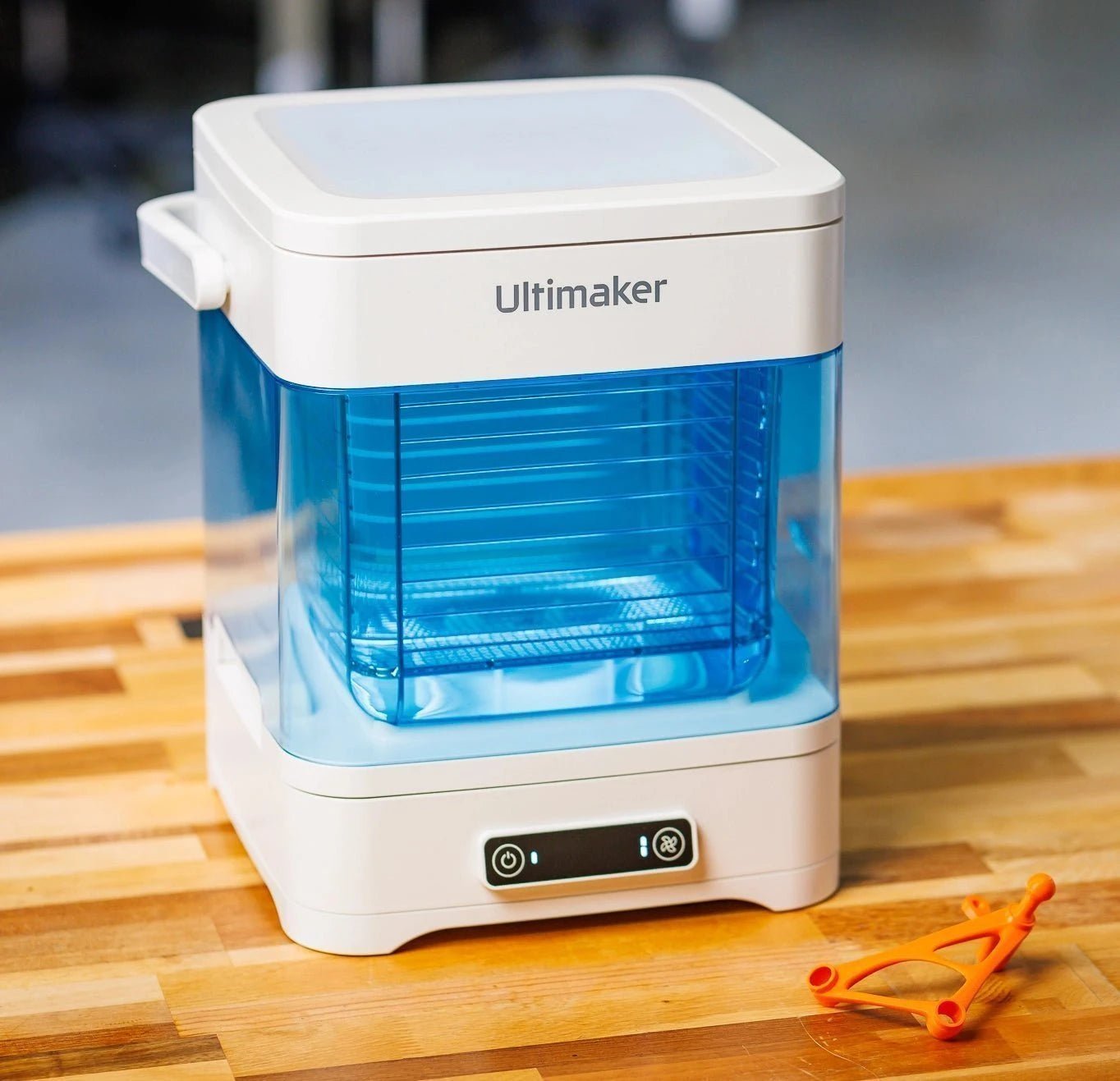

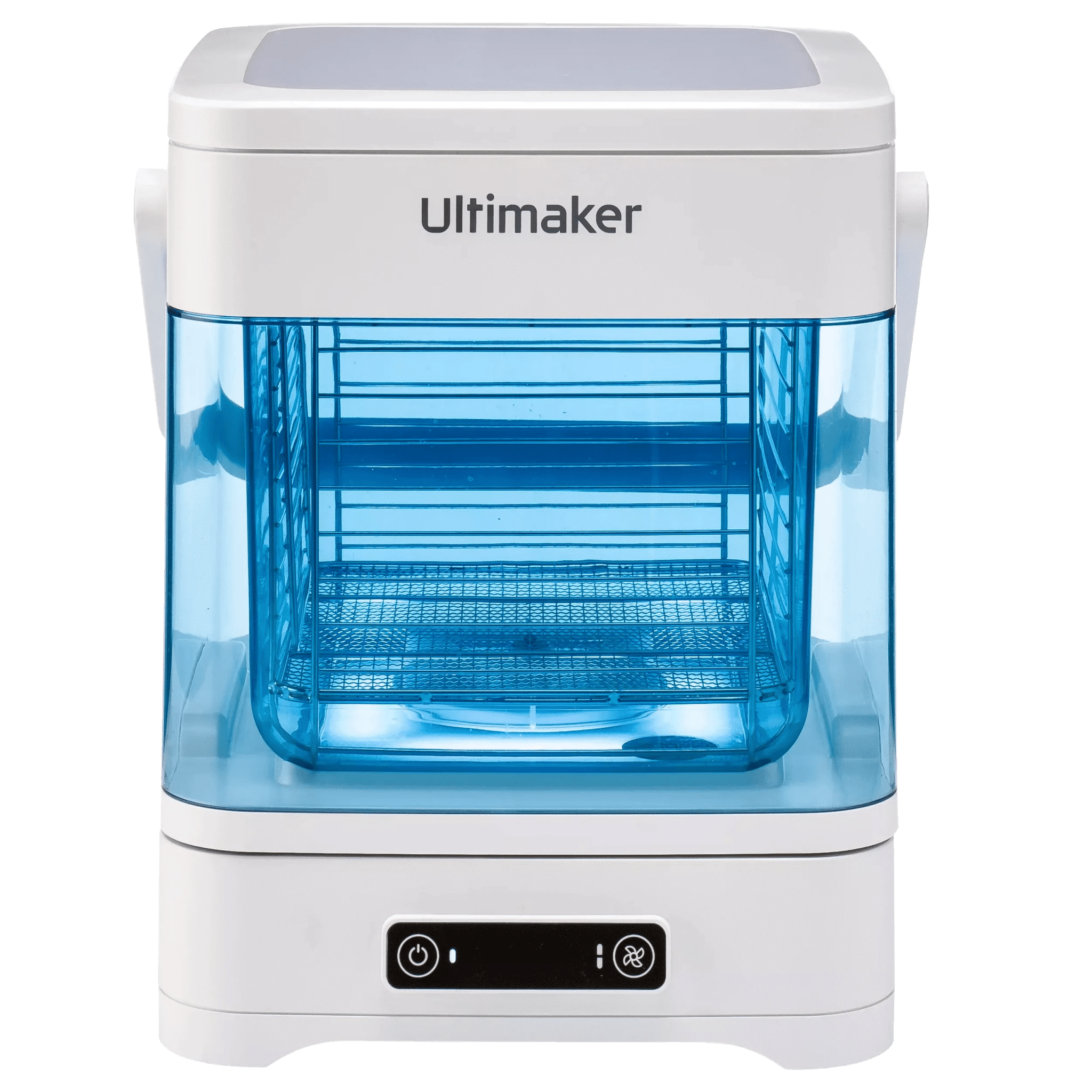

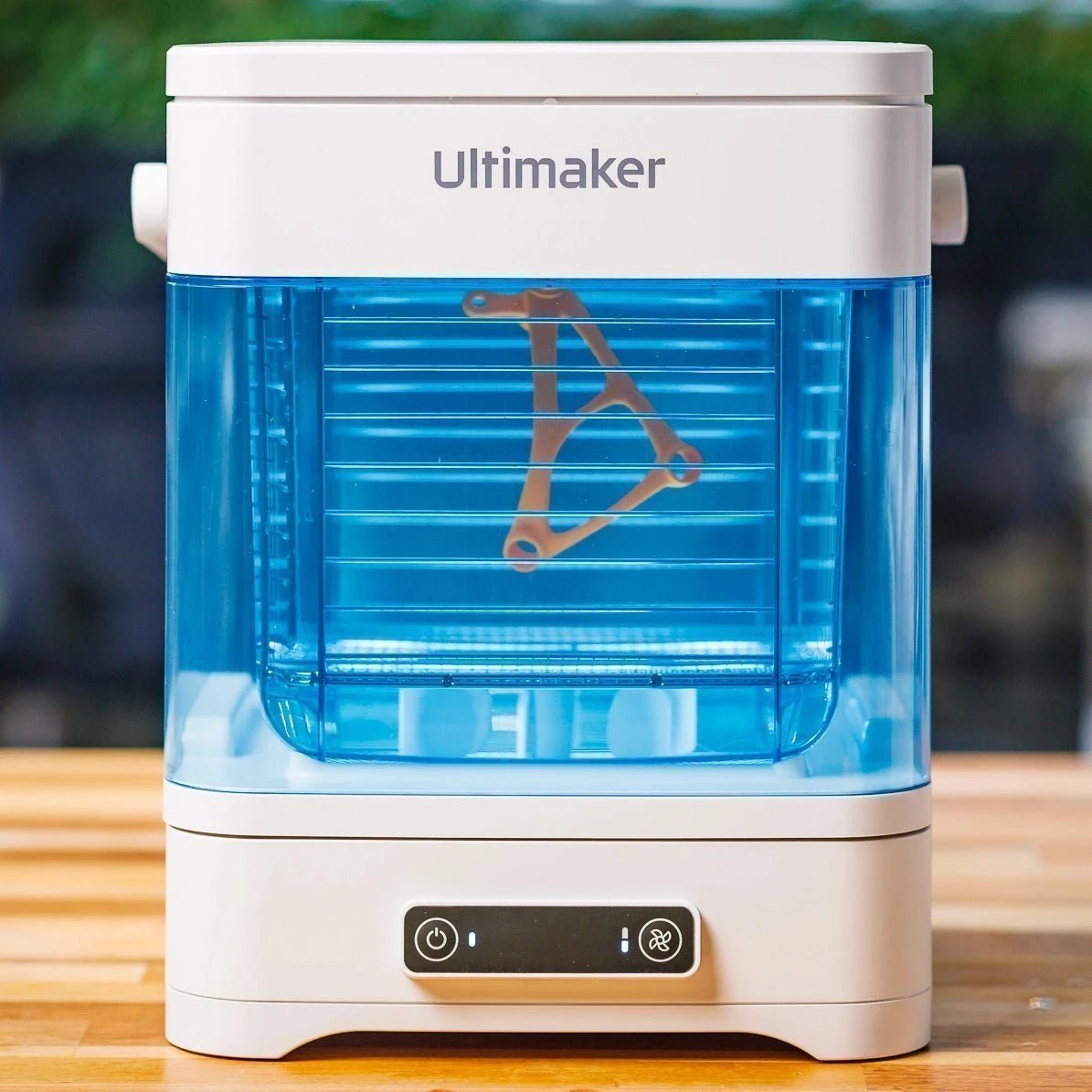

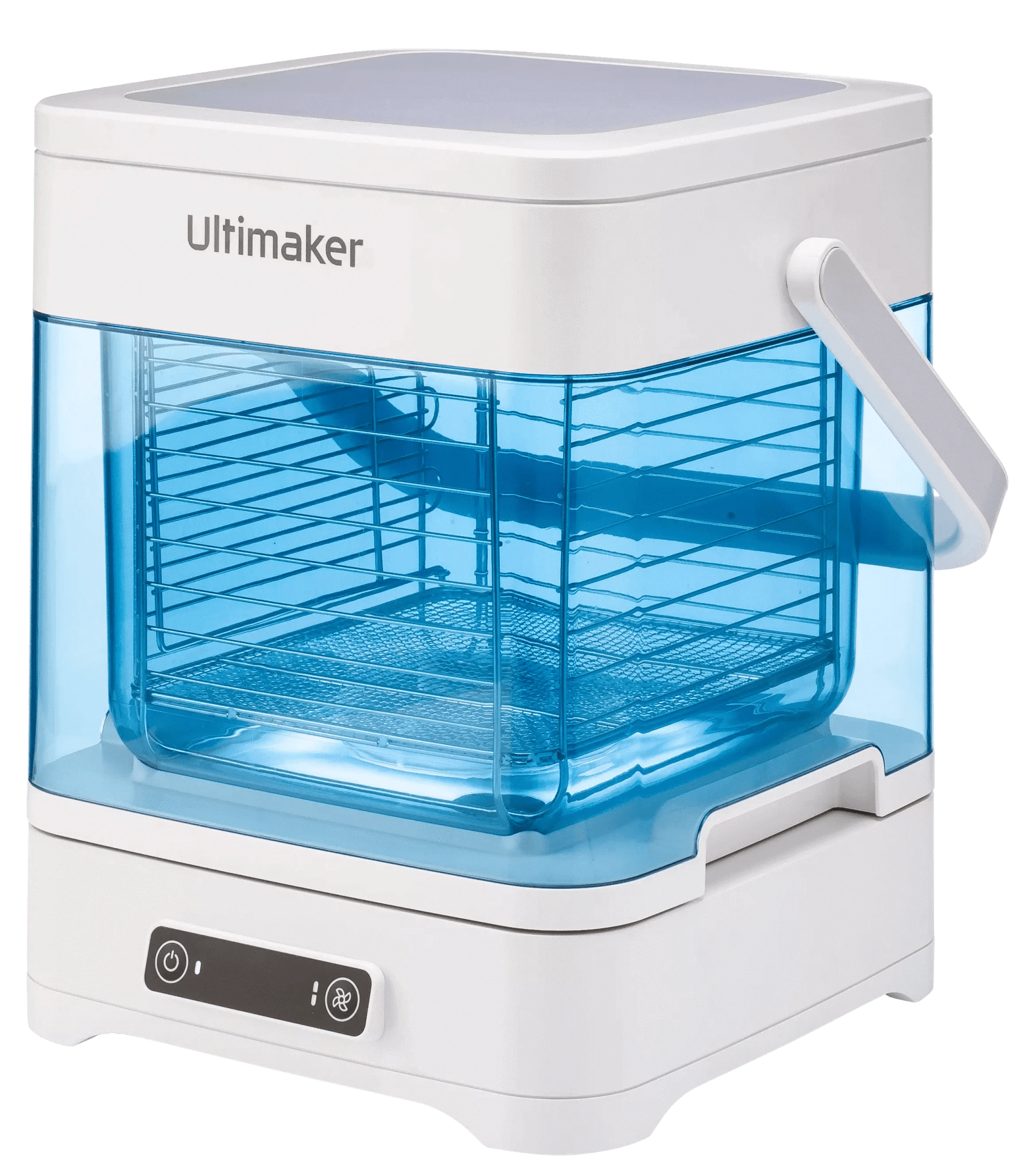

Easy to follow progress: A transparent, illuminated container makes it easy to know exactly when your part is ready
pva-removal-station-accessories-ultimaker-indicate-technologies-480295
Low maintenance: Ergonomically designed for easy cleaning

No chemicals needed: Just fill with regular tap water, which can be safely disposed of when finished

Clean and no-mess: Ergonomic design features help keep your workspace clean and tidy

Uninterrupted productivity: Let the PVA removal station post-process parts for you, so you can focus on other tasks

Technical Specifications

Dimensions

Properties

Operational Parameters

Service and Support

Dimensions

Dimensions
303 x 325 x 374 mm
(11.9 x 12.8 x 14.7 in)

Dimensions with handle extended
303 x 325 x 528 mm
(11.9 x 12.8 x 20.8 in)

Net weight
6.35 kg (14 lbs)
Container weight (empty)
4.2 kg (9.3 lbs)

Shipping box dimensions
400 x 400 x 500 mm
(15.7 x 15.7 x 19.7 in)

Shipping weight
8.5 kg (18.7 lbs)
pva-removal-station-accessories-ultimaker-indicate-technologies-542119

Properties

Container volume
13.7 L (3.6 US Gal)

Maximum part size (XYZ)
200 x 230 x 165 mm (7.8 x 9 x 6.4 in)

Supported materials
Optimized for: PLA and PVA. Suitable for Tough PLA, Nylon, CPE in combination with PVA (Also supports equivalent third-party materials)
Supported solvents
Water

Rotational speed
225 RPM (normal)
100 RPM (low)

Operating sound
< 50 dBA
pva-removal-station-accessories-ultimaker-indicate-technologies-642702

Operational Parameters

Operating ambient temperature
15 – 32 °C (59 – 90 °F lbs)

Non-operating temperature
0 – 32 °C (32 – 90 °F lbs)

Relative humidity
10 – 90% RH non-condensing
Voltage
100 – 240 V AC

Frequency
50 – 60 Hz

Power
38 W
20220105_TheArrows_Ultimaker-Orangefilms_228814_2

Service and Support

Warranty Period
12 months

Expert Support
Market-leading tech support via email, phone, or from our global community is available to you in your language and timezone

Extended Support
Online resources, extensive manuals, material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more
pva-removal-station-accessories-ultimaker-indicate-technologies-645105

Product Video

Watch the introduction video for the UltiMaker PVA Removal Station:
