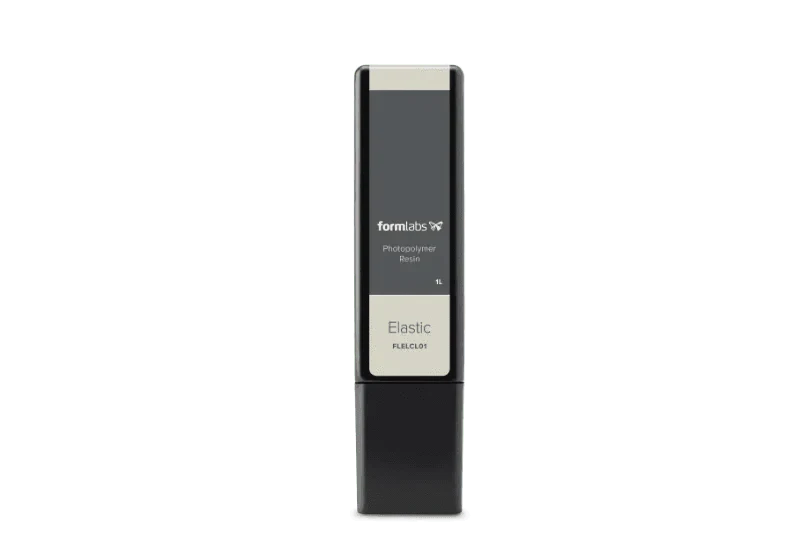

Elastic 50A Resin V2 (Form 3) 1 L

$199.00
Save {}Sold out

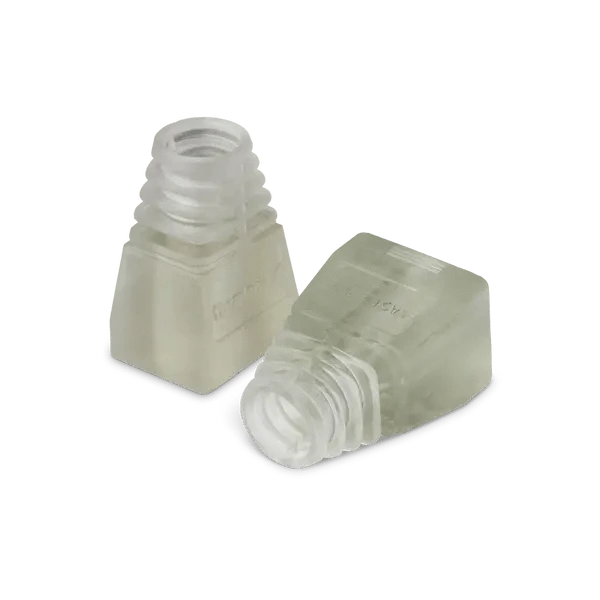

Elastic 50A Resin V2 is a soft, translucent elastomer with a 50A Shore durometer that is ideal for prototyping parts normally produced with softer rubbers and silicones. Parts printed in Elastic 50A Resin V2 will bend, stretch, compress, and hold up to repeated cycles without tearing, and spring back quickly to their original shape.



If you need stiffer flexible material, try Flexible 80A Resin. If your application requires a softer material or the properties of 100% silicone, try Silicone 40A Resin.

    Size:
    • 1 L
    • 5 L
    SKU: RS-F2-ELCL-02

    Unparalleled level of detail

    The Spider II uses blue-light technology, combining precise geometric accuracy and color to deliver 3D models unmatched by anything currently on the market.
    spider-ii-game-controller_jpg

    Fast & easy

    Enhanced field of view
    With a larger 171 × 152 mm field of view, Spider II allows you to scan faster, easier, and with less risk of human error.
    Comfortable scanning speed
    Designed for fast capture at a rate of 30 FPS, the Artec Spider II lets you scan intuitively, and at a pace natural to you.
    Truly portable
    With a weight of just 950 grams, and no targets needed, the Artec Spider II is easy to take with you, wherever you go.

    Realistic color

    The Artec Spider II doesn’t just capture in high accuracy, it’s paying attention to texture, too.
    spider-ii-sports_jpg

    Technical Specifications

    Resolution & Accuracy

    Scanning Range

    Speed

    Resolution, up to 0.05 mm

    Accuracy, up to 0.05 mm

    3D accuracy over distance, up to 0.05 mm + 0.3 mm/m
    Size of scanning object/area - S–M

    Working distance - 0.19–0.3 m

    Volume capture zone - 1,800 cm³

    Linear field of view H×W @ closest range - 128 × 104 mm

    Linear field of view H×W @ furthest range - 171 × 152 mm
    3D reconstruction rate for real-time fusion, up to - 30 fps

    Data acquisition speed, up to - 8 mln points/s
