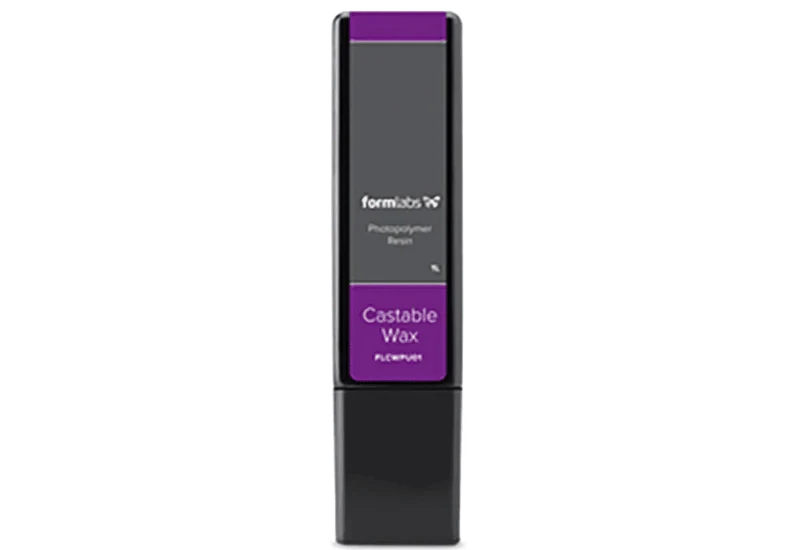

Castable Wax Resin (Form 4)

$299.00
Save {}Sold out

Castable Wax Resin is a material that contains wax and has been developed to be used directly in mold casting with the "lost-wax method". A very useful tool in, for example, the jewelery industry. It can be burned out without leaving ash or residue in the mold. The material provides a smooth surface and takes care of even the smallest details.



The material contains 20% wax, for easy casting with fast and reliable burn-out. With a lower wax content than Castable Wax 40, Castable Wax has a higher degree of strength and stiffness, which makes it more suitable for thin details such as filigree and the like.


The resin does not require additional UV curing after printing, which contributes to ease of use and cuts down on production time. After a quick wash in isopropanol, the parts are ready for handling.

SKU: RS-C2-CWPU-01
Get a Quote

Unparalleled level of detail

The Spider II uses blue-light technology, combining precise geometric accuracy and color to deliver 3D models unmatched by anything currently on the market.
spider-ii-game-controller_jpg

Fast & easy

Enhanced field of view
With a larger 171 × 152 mm field of view, Spider II allows you to scan faster, easier, and with less risk of human error.
Comfortable scanning speed
Designed for fast capture at a rate of 30 FPS, the Artec Spider II lets you scan intuitively, and at a pace natural to you.
Truly portable
With a weight of just 950 grams, and no targets needed, the Artec Spider II is easy to take with you, wherever you go.

Realistic color

The Artec Spider II doesn’t just capture in high accuracy, it’s paying attention to texture, too.
spider-ii-sports_jpg

Technical Specifications

Resolution & Accuracy

Scanning Range

Speed

Resolution, up to 0.05 mm

Accuracy, up to 0.05 mm

3D accuracy over distance, up to 0.05 mm + 0.3 mm/m
Size of scanning object/area - S–M

Working distance - 0.19–0.3 m

Volume capture zone - 1,800 cm³

Linear field of view H×W @ closest range - 128 × 104 mm

Linear field of view H×W @ furthest range - 171 × 152 mm
3D reconstruction rate for real-time fusion, up to - 30 fps

Data acquisition speed, up to - 8 mln points/s
