Castable Wax 40 Resin (Form 3) - Resin - Formlabs - Indicate Technologies
Castable Wax 40 Resin (Form 3) - Resin - Formlabs - Indicate Technologies
Castable Wax 40 Resin (Form 3) - Resin - Formlabs - Indicate Technologies
Castable Wax 40 Resin (Form 3) - Resin - Formlabs - Indicate Technologies

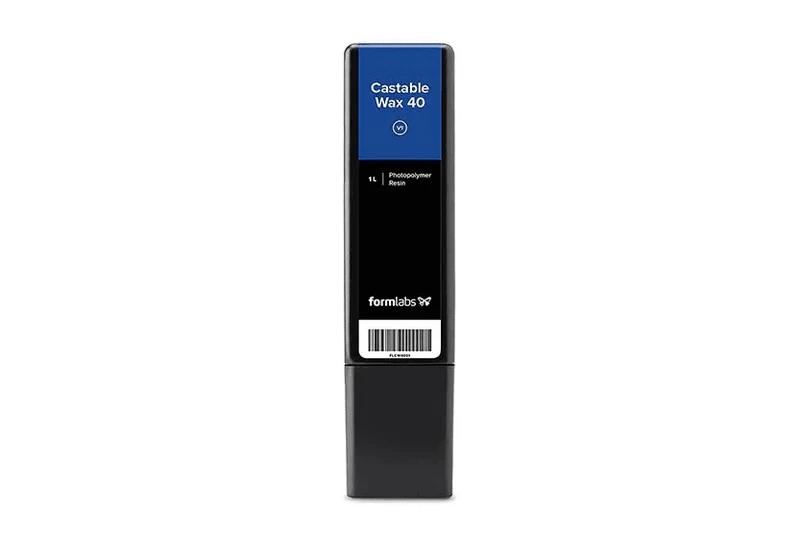

Castable Wax 40 Resin (Form 3)

$249.00
Save {}Sold out

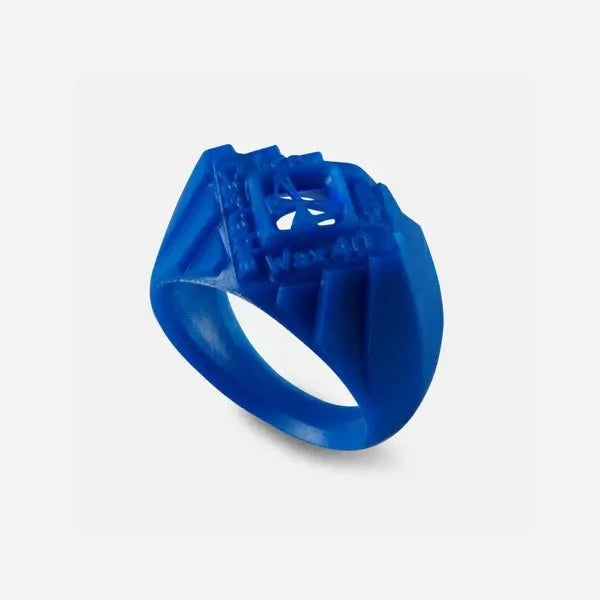

From intricate bridal jewelry to large demanding pieces, Castable Wax 40 Resin offers the easiest workflow on the market for 3D printing and casting challenging, highly detailed designs. With a 40% wax fill and low expansion, Castable Wax 40 Resin supports a wide range of lost wax casting conditions. It is compatible with leading gypsum investments, producing superior results for jewelers who outsource casting. Castable Wax 40 Resin creates beautiful 3D-printed jewelry pieces that burn out cleanly.


Supports print resolutions: 25 and 50 microns. Post-curing not required.

Size:
  • 1 L
  • 5 L
SKU: RS-F2-CW40-01
14 Day Lead Time
Get a Quote

Big Parts, Blazing Fast

Large prints in under 6 hours, 4.6x larger build volume than Form 4.
F4L_front_open_light_core_v5_Ik_240905
Optimized_For_Web_JPEG-Formlabs_2024_Form_4L_and_Form_4BL_Media_018

BLAZING SPEED MEETS INDUSTRIAL PRODUCTION

Get More Done with most Prints in under 2 hours.
Optimized_For_Web_JPEG-09232024_F4L_Lawr_Loc_0264-edit

TACKLE ANY PROBLEM

WITH OUR INDUSTRY-LEADING
RESINS AND OPEN PLATFORM.

Leverage high-performance materials
optimized for impact resistance, rigidity,
flame retardancy, flexibility, and more.
Non-acrylate chemistries like true silicone,
ceramic, and polyurethane materials.
Certified third-party materials and open
mode available.
Option to customize print performance for
your exact part using editable and
shareable print settings.

STUNNING PARTS

THAT ALWAYS FIT WITH A SURFACE FINISH THAT RIVALS INJECTION MOLDING.

Sharpest details: highly collimated light with
pre-tuned anti-aliasing for subpixel resolution.

Smoothest surfaces: lower peel forces and
light touch supports.

Most accurate assemblies:
±0.15% XY dimensional tolerances so
assemblies always fit.
Optimized_For_Web_JPEG-09232024_F4L_Lawr_Loc_0474-edit_ec2201de-4a34-4fbf-bd8c-477782fcffe8
Optimized_For_Web_JPEG-09232024_F4L_Lawr_Loc_0474-edit_ec2201de-4a34-4fbf-bd8c-477782fcffe8

UNMATCHED RELIABILITY

STOP COMING BACK
TO FAILED PRINTS.

Validated Print Settings
Intelligent Control Systems
Re-Engineered, Long-Lasting Consumables
Factory Calibration
Remote Monitoring

PRINTERS THAT JUST WORK

So intuitive that anyone can learn to print in 15 minutes.
Optimized_For_Web_JPEG-09112024_F4L_core_set_1314_edit_SPLASH

Tech Specs

Form 4
Form 4L
Technology - Low Force Display
Build Volume: 20.0 x 12.5 x 21.0 cm | 7.9 x 4.9 x 8.3 in
Build Volume: 35.3 x 19.6 x 35.0 cm | 13.9 x 7.7 x 13.8 in
Layer Thickness (Z Resolution) 25 - 300 Microns
25- 200 µm | 0.001–0.008 in
XY Resolution: 50 Microns
46 Microns
Maximum Print Speed 100 mm /h
80mm/h
Printer Weight: 18.3 kg | 40.4lb
58.5 kg | 129 lb
Printer Dimensions: 39.8x 36.7 x 55.4cm | 15.7 x 14.5 x 21.9 in
66.4 x 52.8 x 79.4 cm | 26.1 x 20.8 x 31.3 in
One Year Warranty Included , Paid service and extended Warranty Options Available
Software Compatiblity: Windows 7 and up | Mac OSX 10.12 and Up
File Types accepted: STL, OBJ, 3MF
