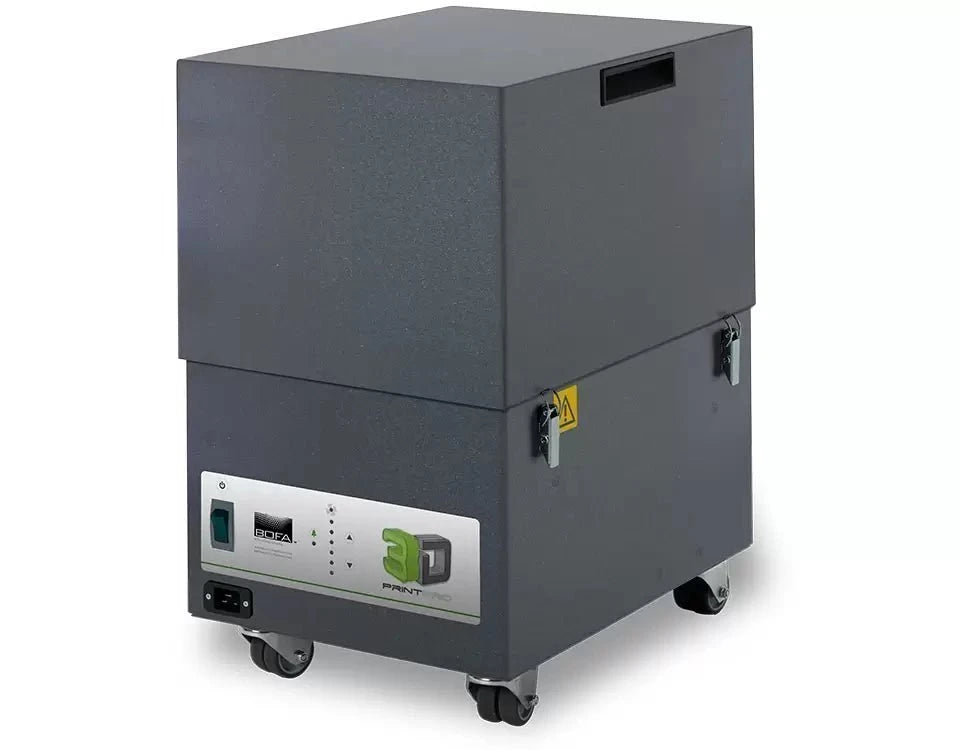

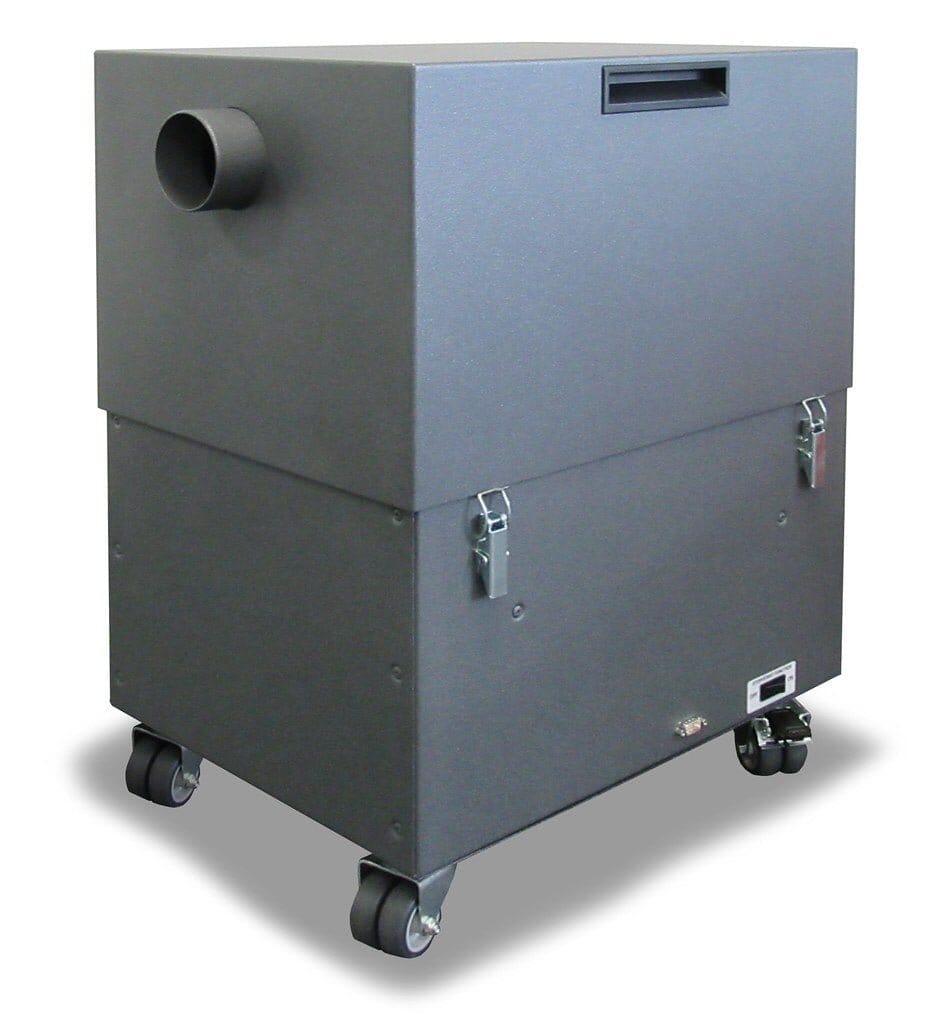

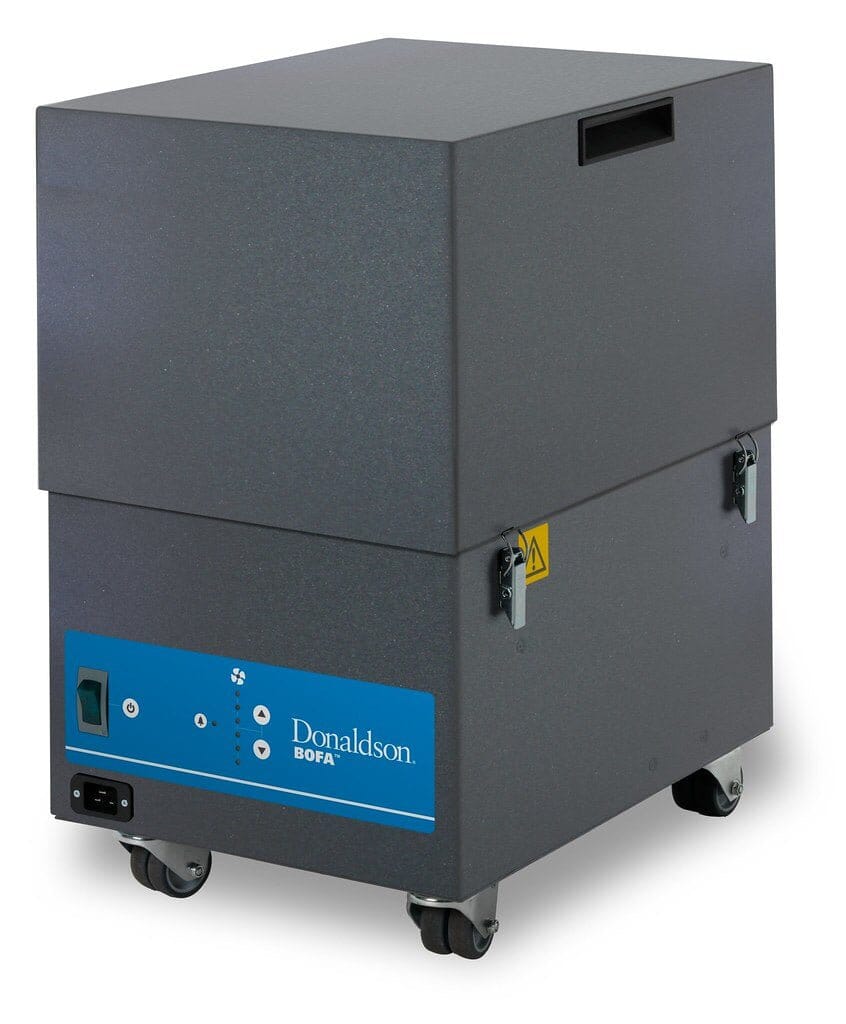

3D PrintPRO 4 - Fume Extractor

The upgraded BOFA 3D PrintPRO 4 is designed to cater to large format and high-performance 3D printers, offering an exceptional fume extraction solution. The extractor combines a unique mix of chemical adsorbents and a high-efficiency particulate filter (HEPA) to effectively filter emissions generated during the 3D printing processes.

SKU:

Explore reasons for using 3D PrintPRO 4

Description

Key Features

Applications

Properties

In the box

bofa_3d_printpro_4_fume_extraction_system_image3

Description

The updated BOFA 3D PrintPRO 4 is an advanced fume extraction system tailored for use with large-format industrial 3D printers. It offers adjustable high air-flow rates suitable for various additive manufacturing techniques like material extrusion, powder bed fusion, vat photopolymerization, binder jetting, and material jetting. The system's multi-stage filtration process, adjustable air-flow rate, and high operating pressure ensure industrial-grade performance by effectively capturing and neutralizing potentially hazardous emissions, creating a safe and odor-free work environment.

The 3D PrintPRO 4 features a three-tier filtration system. The initial stage employs a polypropylene pre-filter, which has a 96% efficiency at 2 microns, effectively capturing large particles and extending the lifespan of the subsequent HEPA filter. The HEPA filter comes next, boasting a remarkable 99.997% efficiency at a 0.3-micron particle size. The final stage is the activated carbon filter, designed to absorb toxic gases and odors, with the purified air being released through the exhaust outlet at the unit's bottom. The user-friendly design allows for easy replacement of all filters, and a filter change indicator keeps users informed about the appropriate replacement time.
The BOFA 3D PrintPRO 4 is a compact and robust device with a powder-coated steel body, ensuring durability. Its operation is quiet and energy-efficient, making it suitable for various environments. The device offers exceptional versatility by allowing users to 3D print their own connectors, customizing them to fit their specific 3D printer. These print instructions are provided free of charge and come in five different sizes, along with options for bolted or adhesive mounting.

To enhance flexibility and ease of use, the device is equipped with lockable castors, making it easily portable and convenient to move around as needed. This feature adds further practicality to the system, making it an ideal choice for different workspaces and applications.






Features

HEPA Filter

Advanced Carbon Filer (ACF) technology

Multi voltage sensin unit (MVS)

ProTECT service plan

SureCHECK quality standard
3d-printpro-4-bofa-indicate-technologies-924660

Applications

  • Polymer powder bed fusion
  • VAT polymerisation
  • Metal powder bed fusion / directed energy deposition
  • Binder jetting
  • Material jetting
  • Fused Filament Fabrication (FFF)
3d-printpro-4-bofa-indicate-technologies-924660

Properties

Multi layer filtration - HEPA and gas filters
Standard

Extended life filters for low cost of ownership
Standard

Low noise level
Standard

Compact construction
Standard

Filter change indicator
Standard

Lockable castors
Standard

Auto sensing voltage (100-230v) for global use
Standard

UL / CE approvals
Standard

24V remote stop/ start interface
Optional

Filter status signals to host machine
Optional

Gas sensing technology
Optional
3d-printpro-4-bofa-indicate-technologies-924660

What's in the box

BOFA 3D PrintPRO 4 fume extraction system
Connection hose kit
'Print your own' manifold instructions
Power cord
User manual
3d-printpro-4-bofa-indicate-technologies-924660
