Air Manager for 2+ Connect

$498.75
Save {}Sold out

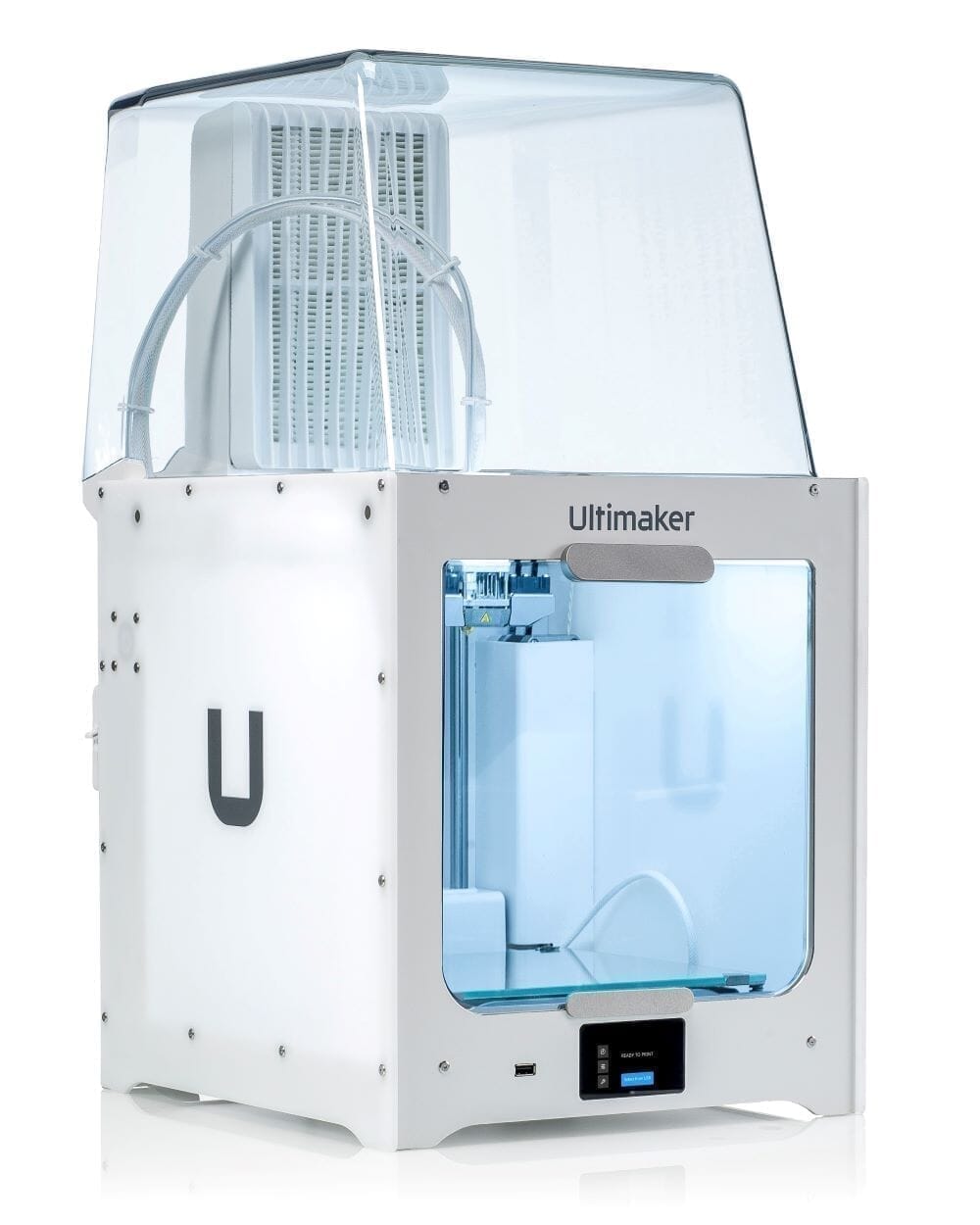

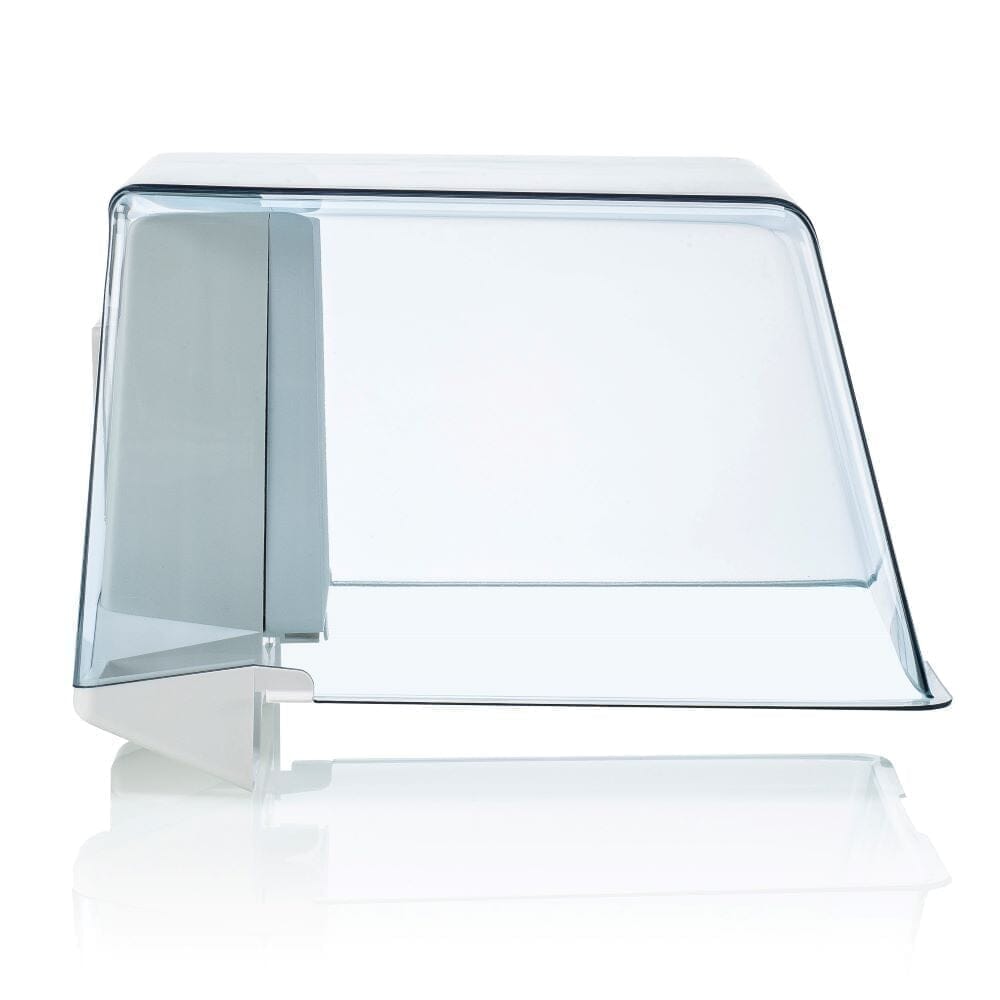

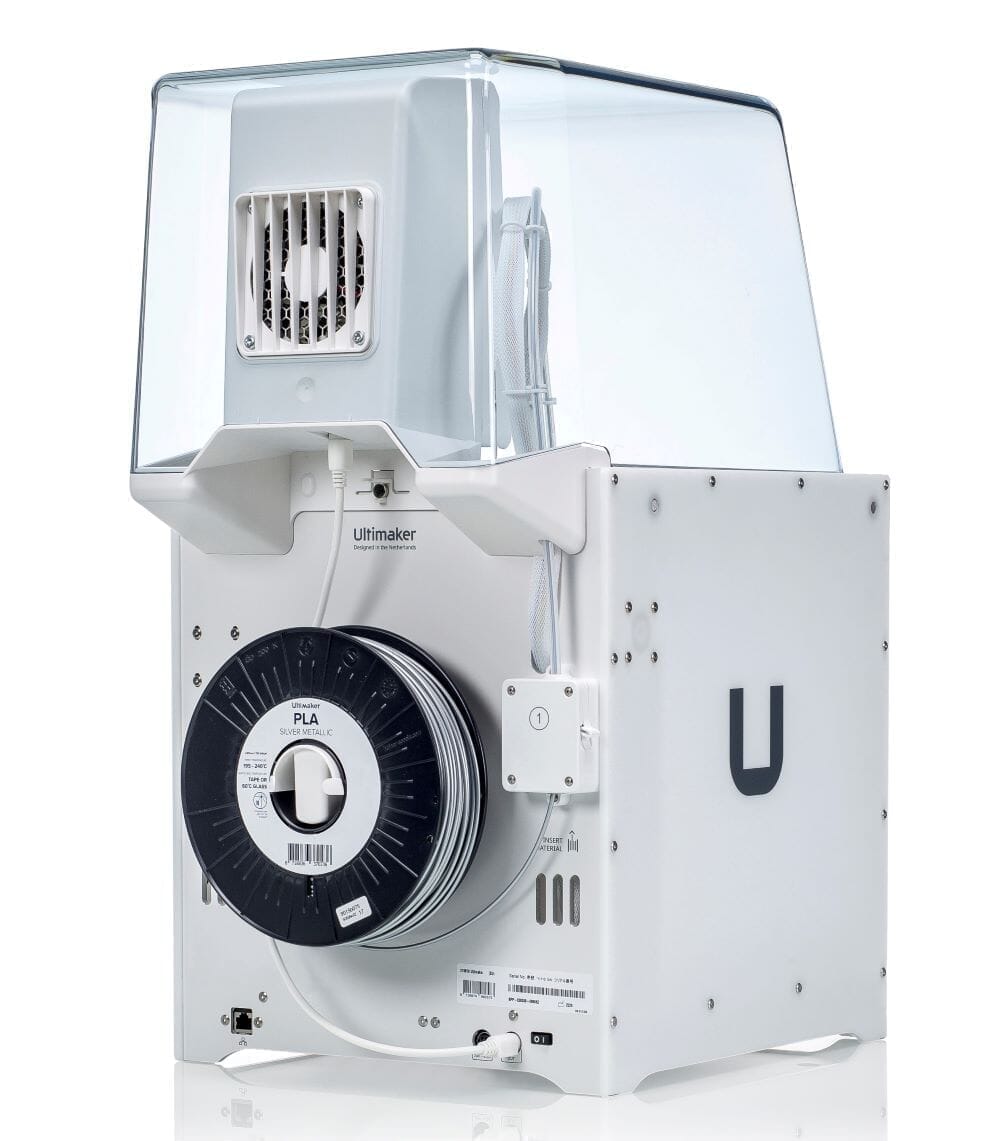

The Ultimaker 2+ Connect Air Manager ensures a safer working environment, providing a closed, inside-out airflow for the Ultimaker 2+ Connect 3D printer. Designed to increase user safety, it removes up to 95% of ultrafine particles (UFPs) while top and front enclosures shield users from hot and moving components. Increase air quality peace-of-mind whether in the classroom or in the office.
SKU: 225628

Product Features

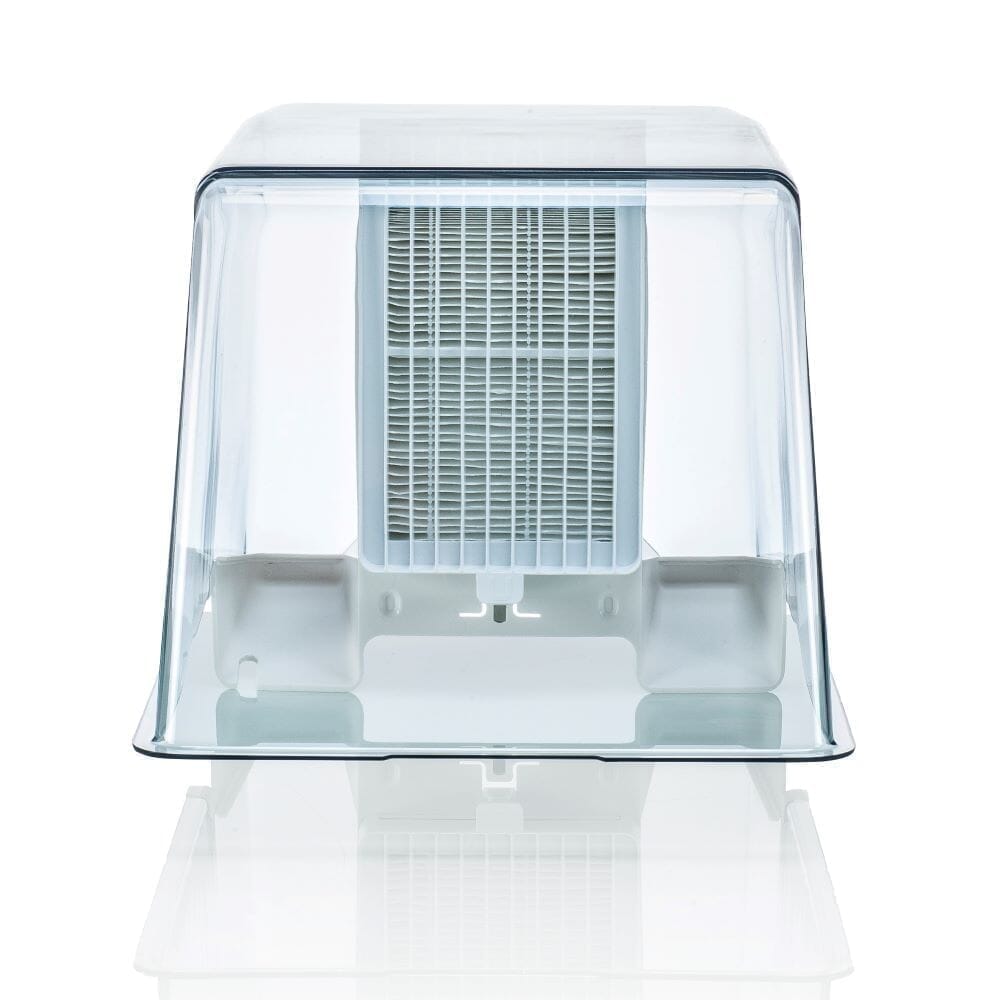

Air Filtration: The Ultimaker 2+ Connect Air Manager uses EPA filtration to remove up to 95% of ultrafine particles

Controlled extraction: Inside-out airflow optimized for filtering and print quality

Enhanced safety: Physical barrier prevents reaching inside the printer and touching moving parts and hot components
2_C-AM4



Easy setup: Printer detects when the Air Manager is connected

Optimized for your application: Detects material being used and adjusts airflow

Smart monitoring: Printer tracks filter usage and prompts replacement

Technical Specifications

Dimensions

Properties

Compatibility

Service and Support

Dimensions

Dimensions
328 x 459 x 257 mm (12.9 x 18.1 x 10.1 in)

Dimensions (including 2+ Connect)
342 x 460 x 636 mm (13.5 x 18.1 x 25 in)

Net weight
2.65 kg (5.8 lbs)
2_AM4

Properties

Filter Technology
Replaceable EPA filter

Fan Technology

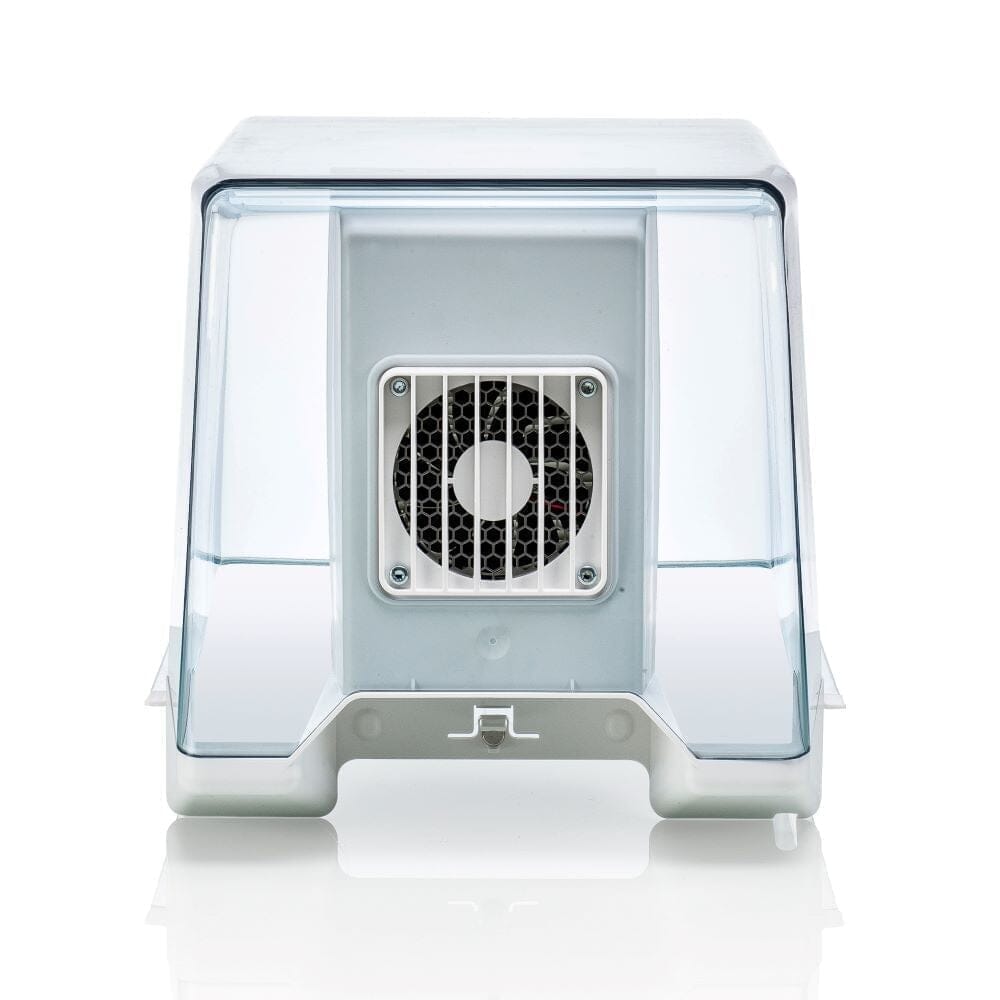

Air extraction by low-noise brushless fan

Air refresh rate
1 - 50 m3/h (35 m3/h nominal rate for most materials at 23°C)
Filter Efficiency
Up to 95%

Filter Replacement
Recommended every 1,500 print hours (approx. 1 year)

Operating Sound
< 51 dBA (including 2+ Connect)

2_AM5

Compatibility

Connection (data and power)
UMB connection (included)

Compatible 3D Printers
Ultimaker 2+ Connect 3D printer is required for use

Compatible Materials
Optimized for Ultimaker PLA, Tough PLA, ABS, Nylon, CPE, CPE+, PC, PP, TPU 95A (Also supports third-party materials)
2_C-AM5

Service and Support

Warranty Period
12 months

Expert Support
Market-leading tech support via email, phone, or from our global community is available to you in your language and timezone

Extended Support
Online resources, extensive manuals, material technical and safety data sheets (in multiple languages), a detailed knowledge base, and much more
2_C-AM6

Product Video

Watch the introduction video for the UltiMaker 2+ Connect:
